直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P0405H901FAN AXIAL 40X10MM BALL 5VDC WIRE |
1,157 |
|
数据手册 |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 800 mW | 6200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.042 lb (19.05 g) |
|
|
109P0412H901FAN AXIAL 40X10MM 12VDC WIRE |
447 |
|
数据手册 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 840 mW | 6200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.042 lb (19.05 g) |
|

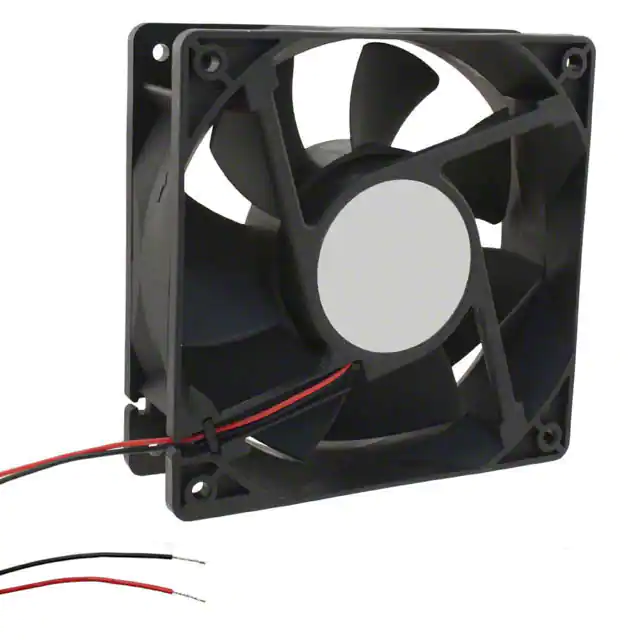

AFB1212VHEFAN AXIAL 120X38MM 12VDC WIRE |
689 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 7.2 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|

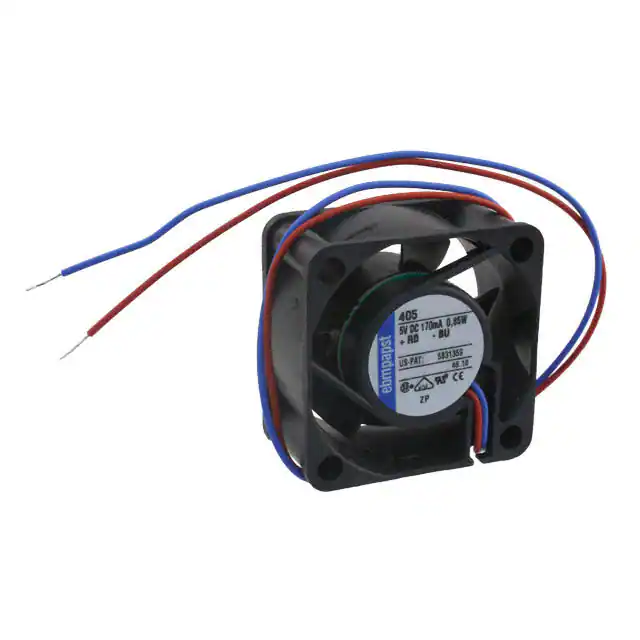

405FAN AXIAL 40X20MM 5VDC WIRE |
1,597 |
|
数据手册 |
400 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 5.9 CFM (0.165m³/min) | - | Sintec | Tubeaxial | - | 18.0dB(A) | 900 mW | 6000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.059 lb (26.76 g) |
|

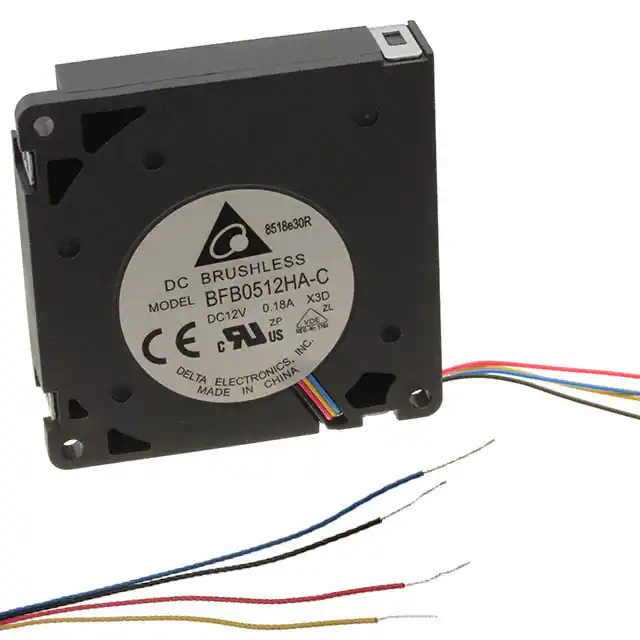

BFB0512HA-CX3DFAN BLOWER 50X10.3MM 12VDC WIRE |
1,899 |
|
数据手册 |
BFB | Box | Not For New Designs | 12VDC | Square - 50mm L x 50mm H | 10.30mm | 3.5 CFM (0.098m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.5dB(A) | 1.44 W | 5100 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.05 lb (22.68 g) |
|
412FAN AXIAL 40X20MM 12VDC WIRE |
1,809 |
|
数据手册 |
400 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 5.9 CFM (0.165m³/min) | - | Sintec | Tubeaxial | - | 18.0dB(A) | 900 mW | 6000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.059 lb (26.76 g) |
|

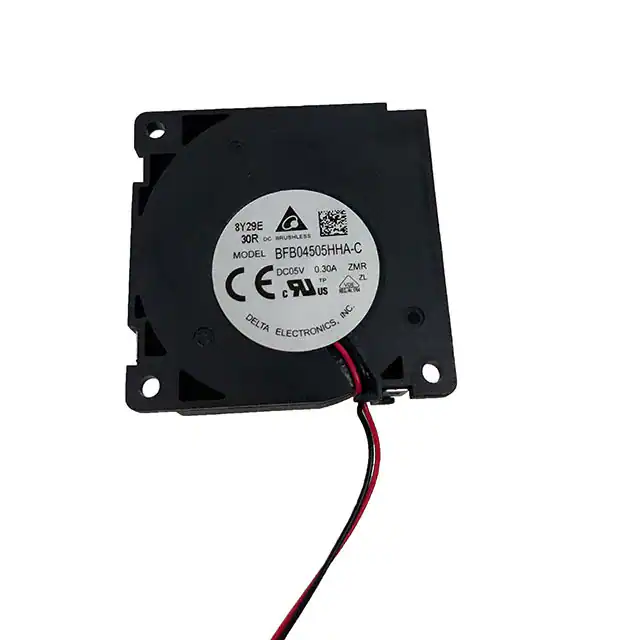

BFB04505HHA-CZMRFAN BLOWER 45X10.3MM 5VDC |
2,222 |
|
数据手册 |
BFB | Box | Active | 5VDC | Square - 45mm L x 45mm H | 10.30mm | 3.5 CFM (0.098m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Blower | Locked Rotor Protection | 35.5dB(A) | 1.25 W | 5900 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.04 lb (18.14 g) |
|
BFB04512HHA-DV52FAN BLOWER 45X10.3MM 12VDC WIRE |
2,074 |
|
数据手册 |
BFB | Box | Active | 12VDC | Square - 45mm L x 45mm H | 10.30mm | 3.6 CFM (0.101m³/min) | 0.598 in H2O (149.0 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 1.68 W | 6100 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.04 lb (18.14 g) |
|
FFB0412VHN-BFAN AXIAL 40X28MM 12VDC WIRE |
289 |
|
数据手册 |
FFB | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.8 CFM (0.442m³/min) | 0.509 in H2O (126.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 1.92 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|

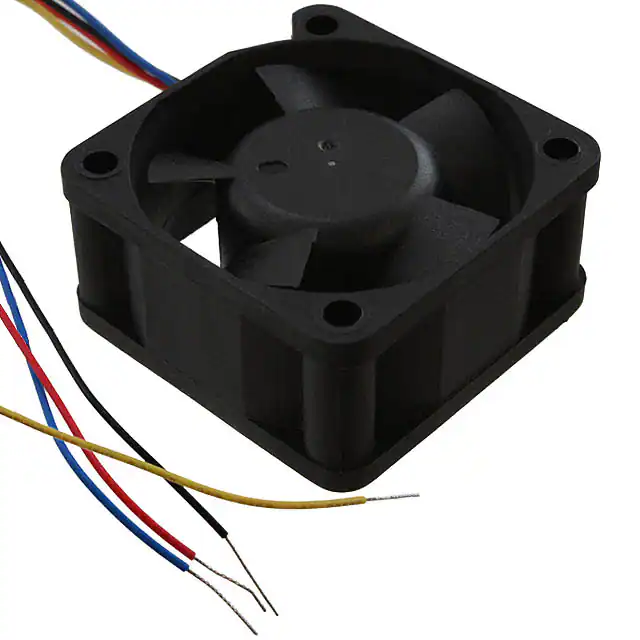

EFB0412VHD-SP05FAN AXIAL 40X20MM 12VDC WIRE |
6,664 |
|
数据手册 |
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.5dB(A) | 1.44 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
OD8025-12HBIP68FAN AXIAL 80X25MM 12VDC WIRE |
649 |
|
数据手册 |
OD8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB | 2.2 W | 3300 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 0.191 lb (86.64 g) |
|
OD8025-24HBIP68FAN AXIAL 80X25MM 24VDC WIRE |
190 |
|
数据手册 |
OD8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB | 2.9 W | 3300 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 0.191 lb (86.64 g) |
|
AFB0612EH-ABFAN AXIAL 60X25.4MM 12VDC WIRE |
2,437 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.5dB(A) | 4.56 W | 6800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
QFR0812UH-CX14FAN AXIAL 80X25.4MM 12VDC WIRE |
2,066 |
|
数据手册 |
QFR | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 70.2 CFM (1.97m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.5dB(A) | 6.6 W | 5600 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, VDE | 0.195 lb (88.45 g) |
|

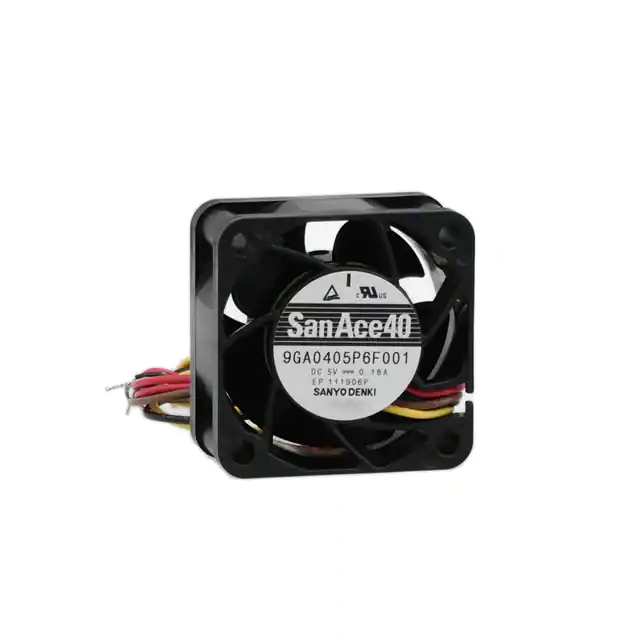

9GA0405P6F001FAN AXIAL 40X20MM BALL 5VDC WIRE |
727 |
|
数据手册 |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.319 in H2O (79.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.0dB(A) | 900 mW | 8000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.077 lb (34.93 g) |
|
AFB0624EH-AFAN AXIAL 60X25.4MM 24VDC WIRE |
2,534 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.5dB(A) | 5.76 W | 6800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
AFB0624HH-AFAN AXIAL 60X25.4MM 24VDC WIRE |
1,045 |
|
数据手册 |
AFB | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 27.6 CFM (0.773m³/min) | 0.294 in H2O (73.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 2.64 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|

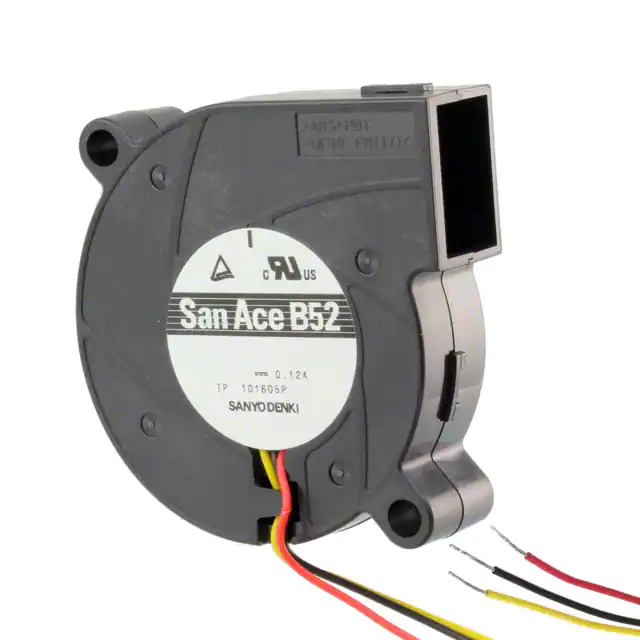

109BC12GC7-1FAN BLOWER 51X15MM 12VDC WIRE |
1,722 |
|
数据手册 |
San Ace B52 | Box | Active | 12VDC | Square/Rounded - 51mm L x 52.6mm H | 15.00mm | 4.4 CFM (0.123m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 1.44 W | 6200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.073 lb (33.11 g) |
|

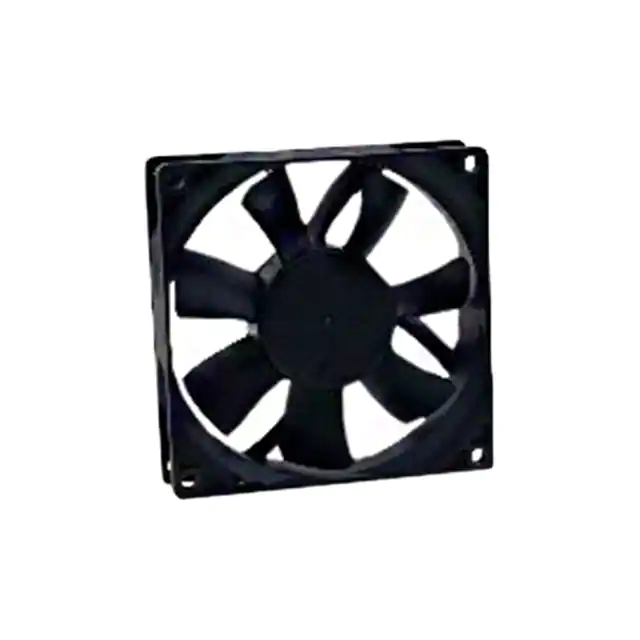

MR9225X24B1+6-FSRFAN AXIAL 92X25MM 24VDC WIRE |
828 |
|
数据手册 |
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 107.0 CFM (3.00m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | - | 4800 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|

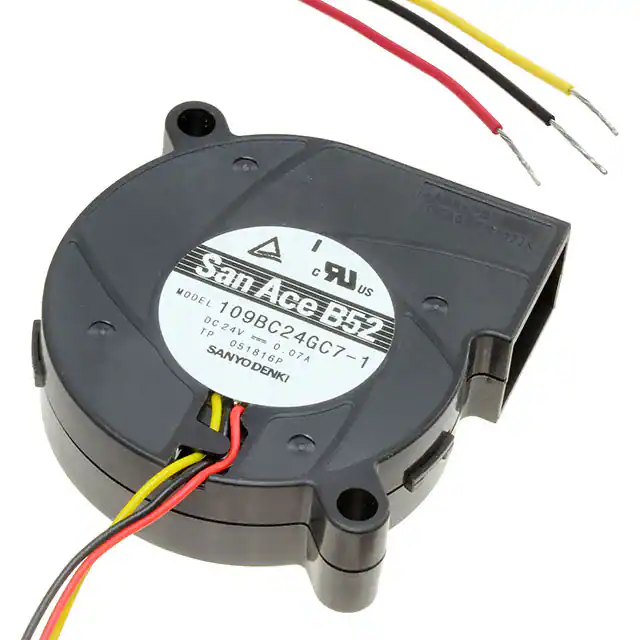

109BC24GC7-1FAN BLOWER 51X15MM 24VDC WIRE |
807 |
|
数据手册 |
San Ace B52 | Box | Active | 24VDC | Square/Rounded - 51mm L x 52.6mm H | 15.00mm | 4.4 CFM (0.123m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 1.68 W | 6200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.073 lb (33.11 g) |
