直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

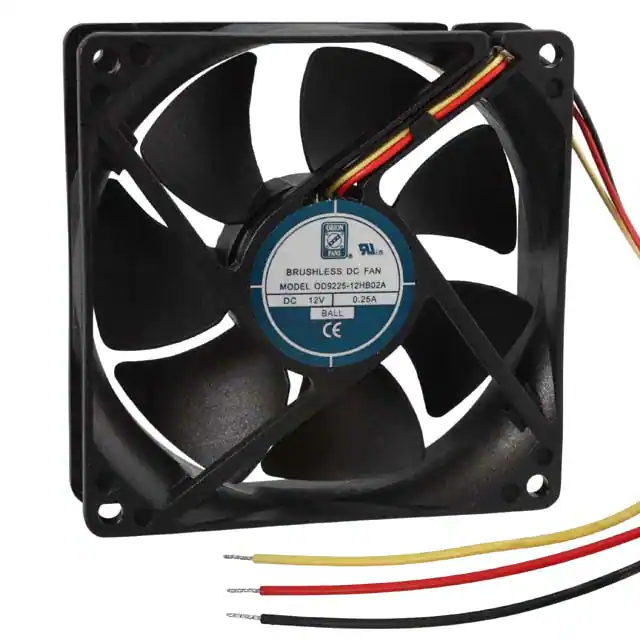

OD9225-12HB02AFAN AXIAL 92.5X25MM 12VDC WIRE Orion Fans |
1,519 |
|
数据手册 |
OD9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 60.2 CFM (1.69m³/min) | 0.025 in H2O (6.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB | - | 3325 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
OD1232-48HB01XFAN AXIAL 120.5X32MM 48VDC WIRE Orion Fans |
1,207 |
|
数据手册 |
OD1232 | Bulk | Active | 48VDC | Square - 120.5mm L x 120.5mm H | 32.00mm | 120.0 CFM (3.36m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Auto Restart | 45.4dB(A) | 10.1 W | 3700 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
OD172SAP-48HBIP68FAN AXIAL 172X51MM 48VDC WIRE Orion Fans |
2,038 |
|
数据手册 |
OD172SAP | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB | 23.5 W | 3300 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 1.8 lbs (816.5 g) |
|
OD172SAP-48HHB10AFAN AXIAL 172X51MM 48VDC WIRE Orion Fans |
2,849 |
|
数据手册 |
OD172S | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.980 in H2O (244.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 57.0dB | - | 3900 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
OD180APL-12HBIP68FAN AXIAL 180X65MM 12VDC WIRE Orion Fans |
4,622 |
|
数据手册 |
OD180APL-IP68 | Box | Active | 12VDC | Square - 180mm L x 180mm H | 65.00mm | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 63.2dB(A) | 50.4 W | 3375 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
OD254AP-48HBIP68FAN IMP MTRZD 254X89MM 48VDC Orion Fans |
4,323 |
|
数据手册 |
OD254AP-IP68 | Box | Active | 48VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Motorized Impellers | Auto Restart | 62.1dB(A) | 65 W | 2450 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
OD254AP-12HBIP69KFAN IMP MTRZD 254X89MM 12VDC Orion Fans |
3,055 |
|
数据手册 |
OD254AP-IP69K | Box | Active | 12VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Motorized Impellers | Auto Restart | 62.1dB(A) | 65 W | 2450 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
OD280AN-48LBFAN AXIAL 280X89MM 48VDC WIRE Orion Fans |
4,960 |
|
数据手册 |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 89.00mm | 870.0 CFM (24.36m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 27 W | 1800 RPM | 2 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|
OD8038-12MBVXEThermal Products Orion Fans |
4,800 |
|
数据手册 |
OD8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Auto Restart | 59.1dB(A) | 15 W | 6525 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD8038-12HBVXEThermal Products Orion Fans |
3,550 |
|
数据手册 |
OD8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 105.0 CFM (2.94m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Tubeaxial | Auto Restart | 62.3dB(A) | 24 W | 7400 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
