直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1232-48MBFAN AXIAL 120X32MM 48VDC WIRE Orion Fans |
2,428 |
|
数据手册 |
OD1232 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 32.00mm | 107.0 CFM (3.00m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | - | 48.0dB | - | 3300 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
OD9238-24HHBXCFAN AXIAL 92X38MM 24VDC WIRE Orion Fans |
3,602 |
|
数据手册 |
OD9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
OD9238-12HHBXCFAN AXIAL 92X38MM 12VDC WIRE Orion Fans |
2,385 |
|
数据手册 |
OD9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 174.0 CFM (4.87m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 68.0dB | 42 W | 8000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
OD9238-48HHBXCFAN AXIAL 92X38MM 48VDC WIRE Orion Fans |
4,118 |
|
数据手册 |
OD9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
OD6038-12LBXC01AFAN AXIAL 60X38MM 12VDC WIRE Orion Fans |
2,245 |
|
数据手册 |
OD6038 XC | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 68.0 CFM (1.90m³/min) | 1.950 in H2O (485.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 61.0dB | 21.6 W | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.276 lb (125.19 g) |
|
|
OD6038-12HBXC01AFAN AXIAL 60X38MM 12VDC WIRE Orion Fans |
3,570 |
|
数据手册 |
OD6038 XC | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 76.0 CFM (2.13m³/min) | 2.400 in H2O (597.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 64.0dB | 28.8 W | 14500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.276 lb (125.19 g) |
|

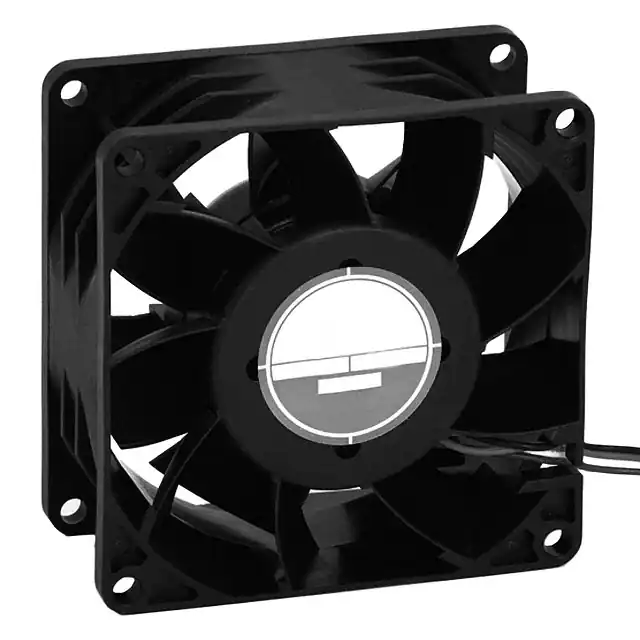

OD8038-12MB-VXCFAN AXIAL 80X38MM 12VDC WIRE Orion Fans |
2,116 |
|
数据手册 |
OD8038 VA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 89.0 CFM (2.49m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Auto Restart | 54.0dB | 10 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
OD9238-12MBVXEFAN AXIAL 92X38MM 12VDC WIRE Orion Fans |
2,534 |
|
数据手册 |
OD9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 124.8 CFM (3.49m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 64.1dB(A) | 24.2 W | 5975 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9238-12HHBVXEFAN AXIAL 92X38MM 12VDC WIRE Orion Fans |
2,254 |
|
数据手册 |
OD9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 167.5 CFM (4.69m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Tubeaxial | Auto Restart | 72.3dB(A) | 42.1 W | 7950 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9238-24MBVXEFAN AXIAL 92X38MM 24VDC WIRE Orion Fans |
2,667 |
|
数据手册 |
OD9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 124.8 CFM (3.49m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 64.1dB(A) | 22.4 W | 5975 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
