直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD9238-48LB-VXC5FAN AXIAL 92.5X38MM 48VDC WIRE Orion Fans |
2,025 |
|
数据手册 |
OD9238 VA | Bulk | Active | 48VDC | Square - 92.5mm L x 92.5mm H | 38.00mm | 108.0 CFM (3.02m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 52.0dB | 9 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD9238-48MB-VXC01AFAN AXIAL 92.5X38MM 48VDC WIRE Orion Fans |
3,073 |
|
数据手册 |
OD9238 VA | Bulk | Active | 48VDC | Square - 92.5mm L x 92.5mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 55.0dB | 12 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|

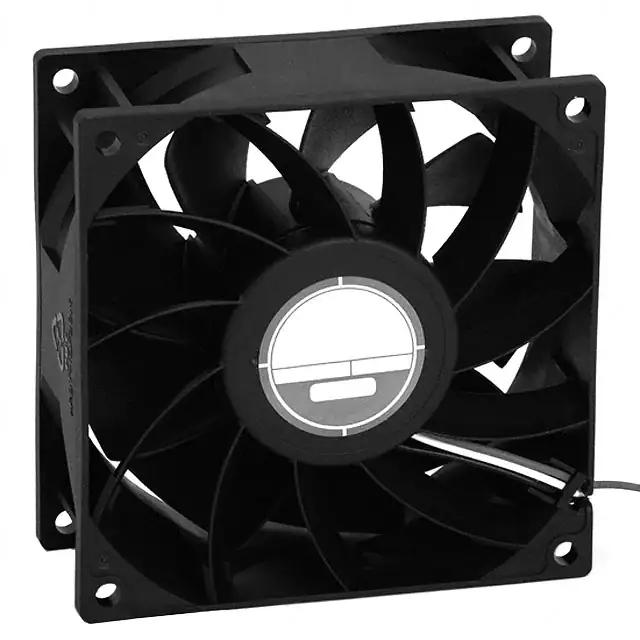

OD9238-48MB-VXC10AFAN AXIAL 92.5X38MM 48VDC WIRE Orion Fans |
4,292 |
|
数据手册 |
OD9238 VA | Bulk | Active | 48VDC | Square - 92.5mm L x 92.5mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 55.0dB | 12 W | 4800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD9238-48MB-VXC5FAN AXIAL 92.5X38MM 48VDC WIRE Orion Fans |
3,241 |
|
数据手册 |
OD9238 VA | Bulk | Active | 48VDC | Square - 92.5mm L x 92.5mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 55.0dB | 12 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
ODB1232-48HBFAN BLOWER 120X32MM 48VDC WIRE Orion Fans |
2,329 |
|
数据手册 |
ODB1232 | Box | Active | 48VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 33.0 CFM (0.924m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Blower | - | 55.0dB | - | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
ODB1232-48MBFAN BLOWER 120X32MM 48VDC WIRE Orion Fans |
4,923 |
|
数据手册 |
ODB1232 | Box | Active | 48VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.0 CFM (0.784m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Blower | - | 49.0dB | - | 2300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
ODB1232-48LBFAN BLOWER 120X32MM 48VDC WIRE Orion Fans |
4,627 |
|
数据手册 |
ODB1232 | Box | Active | 48VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 25.0 CFM (0.700m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Blower | - | 48.0dB | - | 2100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
OD9238-48LBThermal Products Orion Fans |
3,368 |
|
数据手册 |
OD9238 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 78.0 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart | 50.2dB(A) | 7.2 W | 3500 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9238-12HHBThermal Products Orion Fans |
1,960 |
|
数据手册 |
OD9238 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Auto Restart | 58.3dB(A) | 18.2 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9238-12LBThermal Products Orion Fans |
2,696 |
|
数据手册 |
OD9238 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 78.0 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart | 50.2dB(A) | 7.2 W | 3500 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
