直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD7015-12HB10AFAN AXIAL 70X15MM 12VDC WIRE Orion Fans |
2,054 |
|
数据手册 |
OD7015 | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | - | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | - | - | cURus, TUV | - |
|
OD9225-12HS5FAN AXIAL 92.5X25MM 12VDC WIRE Orion Fans |
2,699 |
|
数据手册 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | - | - | Sleeve | Tubeaxial | PWM Control | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
OD1225-48HSSFAN AXIAL 120X25MM 48VDC WIRE Orion Fans |
3,602 |
|
数据手册 |
OD1225 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 86.0 CFM (2.41m³/min) | 0.240 in H2O (59.8 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 42.0dB(A) | 4.5 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|

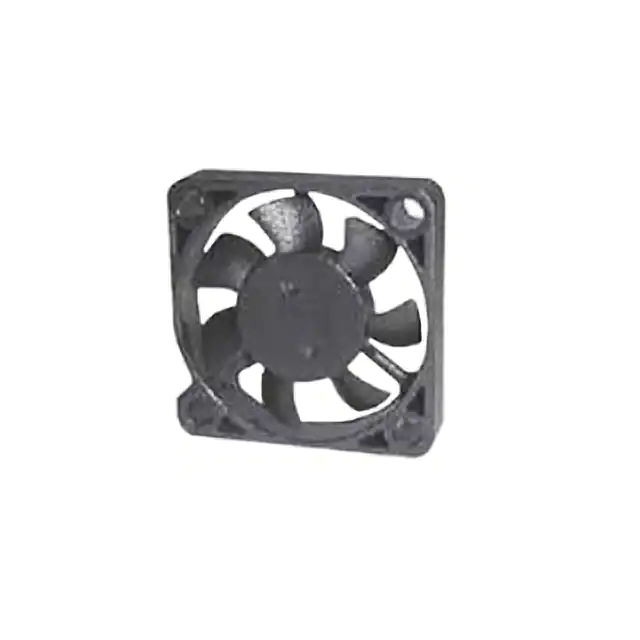

OD3006-12MB01AFAN AXIAL 30X6MM BALL 12VDC WIRE Orion Fans |
3,655 |
|
数据手册 |
OD3006 | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 6.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
OD3010-05LLB01AFAN AXIAL 30X10.2MM 5VDC WIRE Orion Fans |
2,467 |
|
数据手册 |
OD3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.20mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
OD3010-12HB5FAN AXIAL 30X10.2MM 12VDC WIRE Orion Fans |
4,372 |
|
数据手册 |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 5.0 CFM (0.140m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | PWM Control | 30.2dB(A) | - | 11000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD3010-12LB5FAN AXIAL 30X10.2MM 12VDC WIRE Orion Fans |
1,460 |
|
数据手册 |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 3.5 CFM (0.098m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | PWM Control | 23.1dB(A) | - | 8000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD3010-12LLBFAN AXIAL 30X10.2MM 12VDC WIRE Orion Fans |
1,183 |
|
数据手册 |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 3.5 CFM (0.098m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 25.0dB | - | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD3010-12LLB01AFAN AXIAL 30X10.2MM 12VDC WIRE Orion Fans |
4,536 |
|
数据手册 |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 3.5 CFM (0.098m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 25.0dB | - | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD3010-12MB5FAN AXIAL 30X10.2MM 12VDC WIRE Orion Fans |
2,130 |
|
数据手册 |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 4.0 CFM (0.112m³/min) | 0.180 in H2O (45.0 Pa) | Ball | Tubeaxial | PWM Control | 28.4dB(A) | - | 9000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
