直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09238RG-24P-GUD-192X92X38MM, 24VDC, 6,700 RPM, 14 NMB Technologies Corporation |
150 |
|
数据手册 |
09238RG | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 61.0dB | 22.08 W | 6700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
17250VE-48R-GU-01172X150X50MM, 48VDC, 4,600 RPM, NMB Technologies Corporation |
3,636 |
|
数据手册 |
17250VE | Box | Active | 48VDC | Round - 172.7mm Dia | 50.80mm | 346.0 CFM (9.80m³/min) | 1.250 in H2O (312.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.0dB | 43.2 W | 4600 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
15050VE-48R-GU-03150X172X50MM, 48VDC, 4,600 RPM, NMB Technologies Corporation |
2,218 |
|
数据手册 |
15050VE | Box | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 346.1 CFM (9.80m³/min) | 1.250 in H2O (312.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 68.0dB | 43.2 W | 4600 RPM | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|

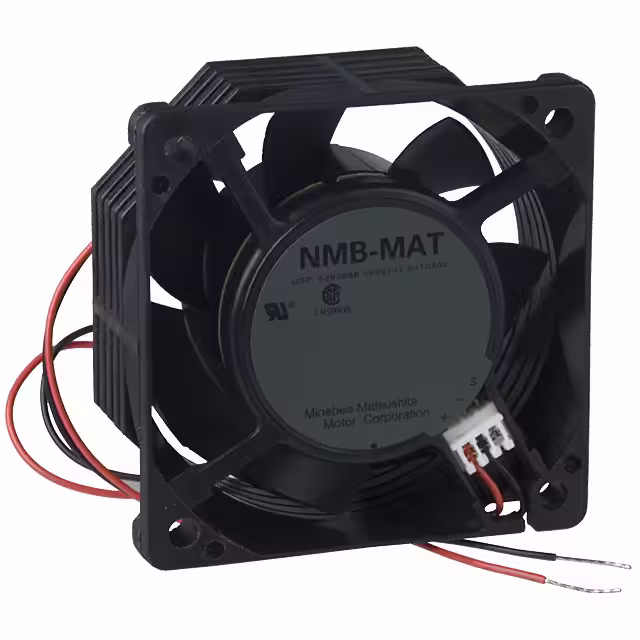

FBL06A24U1AFAN AXIAL 60X25.5MM 24VDC WIRE NMB Technologies Corporation |
6,106 |
|
数据手册 |
FBL | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.50mm | 15.9 CFM (0.445m³/min) | 0.185 in H2O (46.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 42.0dB | 3.84 W | - | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.198 lb (89.81 g) |
|
FBL09A12H1AFAN AXIAL 92X25.5MM 12VDC WIRE NMB Technologies Corporation |
3,560 |
|
数据手册 |
FBL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.0dB | 2.7 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
2406KL-05W-B50-L00FAN AXIAL 60X15MM 24VDC WIRE NMB Technologies Corporation |
2,685 |
|
数据手册 |
06015KA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 18.3 CFM (0.512m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | - | 34.0dB | 2.4 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
2410ML-04W-B40-B00FAN AXIAL 60X25MM 12VDC WIRE NMB Technologies Corporation |
1,642 |
|
数据手册 |
2410ML | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.208 in H2O (51.8 Pa) | Ball | Tubeaxial | Auto Restart | 33.5dB | 2.04 W | 4550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-04W-B10-B00FAN AXIAL 60X25MM 12VDC WIRE NMB Technologies Corporation |
327 |
|
数据手册 |
2410ML | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.7 CFM (0.384m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | Auto Restart | 23.0dB | 900 mW | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
1608VL-05W-B40-B00FAN AXIAL 40.1X20MM 24VDC WIRE NMB Technologies Corporation |
2,688 |
|
数据手册 |
04020VA | Box | Obsolete | 24VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Auto Restart | 29.0dB(A) | 1.2 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
2410SB-04W-B40-B00FAN AXIAL 60X25MM 12VDC WIRE NMB Technologies Corporation |
1,048 |
|
数据手册 |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | - | 26.5dB(A) | 1.2 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
