直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F17HA-05HCFAN AXIAL 17X8MM 5VDC WIRE Nidec Components Corporation |
2,834 |
|
数据手册 |
F17HA | Bulk | Active | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.636 CFM (0.018m³/min) | 0.068 in H2O (17.0 Pa) | Sleeve | Tubeaxial | - | 15.0dB(A) | 150 mW | 11000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.005 lb (2.27 g) |
|
TF037E-2000-FFAN BLOWER 80.2X52MM AERO 24VDC Nidec Components Corporation |
109 |
|
数据手册 |
TF037E | Tray | Active | 24VDC | Rectangular/Rounded - 80.2mm L x 60mm H | 52.00mm | 3.5 CFM (0.098m³/min) | 12.040 in H2O (3000.0 Pa) | Aerodynamic | Blower, Centrifugal | - | 65.0dB(A) | 22.7 W | 35500 RPM | 12 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.364 lb (165.11 g) |
|
F410T-05MCFAN AXIAL 40X10MM 5VDC WIRE Nidec Components Corporation |
1,071 |
|
数据手册 |
F410T | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.092 in H2O (23.0 Pa) | Sleeve | Tubeaxial | - | 18.0dB(A) | 600 mW | 5800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|
|
F410T-12LCFAN AXIAL 40X10MM 12VDC WIRE Nidec Components Corporation |
732 |
|
数据手册 |
F410T | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 3.9 CFM (0.109m³/min) | 0.040 in H2O (10.0 Pa) | Sleeve | Tubeaxial | - | 12.0dB(A) | 480 mW | 4600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|
F310R-12LLCFAN AXIAL 30X10MM 12VDC WIRE Nidec Components Corporation |
1,188 |
|
数据手册 |
F310R | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.056 in H2O (13.9 Pa) | Sleeve | Tubeaxial | - | 13.0dB(A) | 300 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.018 lb (8.16 g) |
|
F412R-05MBFAN AXIAL 41X12.2MM 5VDC WIRE Nidec Components Corporation |
170 |
|
数据手册 |
F412R | Bulk | Active | 5VDC | Square - 41mm L x 41mm H | 12.20mm | 5.3 CFM (0.148m³/min) | 0.102 in H2O (25.5 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 23.0dB(A) | 500 mW | 5400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|
TF029B-1000-FFAN BLOWER 49.4X33.6MM 24VDC Nidec Components Corporation |
1,145 |
|
数据手册 |
TF029B | Tray | Active | 24VDC | Rectangular/Rounded - 49.4mm L x 41.5mm H | 33.60mm | 3.5 CFM (0.098m³/min) | 8.030 in H2O (2000.0 Pa) | Aerodynamic | Blower, Centrifugal | - | 65.0dB(A) | 14.9 W | 36000 RPM | 5 Wire Leads | - | 32 ~ 122°F (0 ~ 50°C) | - | 0.121 lb (54.88 g) |
|
TF037C-2100-FFAN BLOWER 54X40.4MM AERO 24VDC Nidec Components Corporation |
108 |
|
数据手册 |
TF037C | Tray | Active | 24VDC | Rectangular/Rounded - 54mm L x 50.5mm H | 40.40mm | 3.5 CFM (0.098m³/min) | 16.060 in H2O (4000.0 Pa) | Aerodynamic | Blower, Centrifugal | - | 67.0dB(A) | 29 W | 40000 RPM | 12 Position Rectangular Connector | - | 32 ~ 122°F (0 ~ 50°C) | - | 0.207 lb (93.89 g) |
|

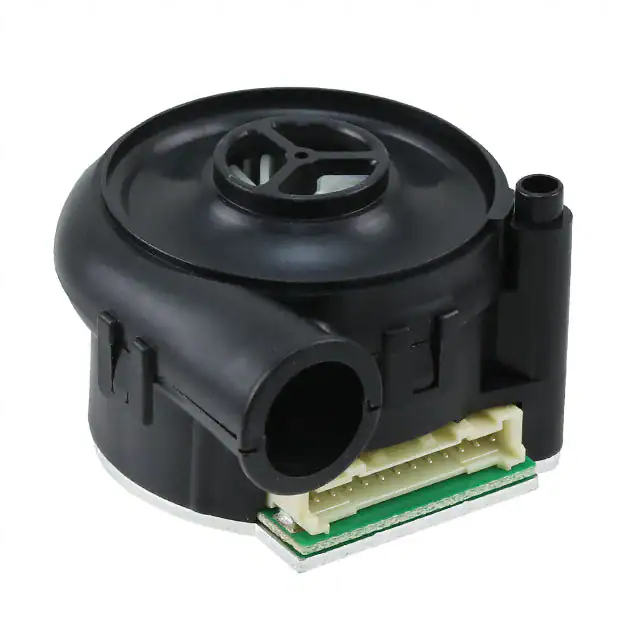

TF037F-2000-FFAN BLOWER 53.8X34.3MM 24VDC Nidec Components Corporation |
142 |
|
数据手册 |
TF037F | Tray | Active | 24VDC | Rectangular/Rounded - 53.80mm L x 50.5mm H | 34.30mm | 3.5 CFM (0.098m³/min) | 8.030 in H2O (2000.0 Pa) | Aerodynamic | Blower, Centrifugal | - | 65.0dB(A) | 16.1 W | 31000 RPM | 12 Position Rectangular Connector | - | 32 ~ 122°F (0 ~ 50°C) | - | 0.159 lb (72.12 g) |
|
|
F412R-12MBFAN AXIAL 41X12.2MM 12VDC WIRE Nidec Components Corporation |
4,145 |
|
数据手册 |
F412R | Bulk | Active | 12VDC | Square - 41mm L x 41mm H | 12.20mm | 5.3 CFM (0.148m³/min) | 0.102 in H2O (25.5 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 23.0dB(A) | 720 mW | 5400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
