直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFB03812HHNFAN AXIAL 38X28MM 12VDC WIRE |
285 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 17.3 CFM (0.484m³/min) | 1.111 in H2O (276.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 55.5dB(A) | 5.64 W | 14000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.102 lb (46.27 g) |
|
AFB0412HHA-AF00FAN AXIAL 40X10MM 12VDC WIRE |
587 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.5dB(A) | 600 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
|
DC0502024M2B-2T0FAN 50X20MM 24VDC |
599 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 17.6 CFM (0.493m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 5.04 W | 6400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802024M2B-2T0FAN 80X20MM 24VDC |
588 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 36.6 CFM (1.03m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 4.32 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
AFB0924SH-AFAN AXIAL 92X25.4MM 24VDC WIRE |
139 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 102.6 CFM (2.87m³/min) | 0.526 in H2O (131.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 9.6 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.267 lb (121.11 g) |
|
|
OD5010-24HHBThermal Products |
302 |
|
数据手册 |
OD5010 | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.50mm | 14.9 CFM (0.417m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 37.4dB(A) | 2.4 W | 7150 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
06015VA-24P-AT-00FAN AXIAL 60X15MM 24VDC WIRE |
290 |
|
数据手册 |
06015VA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 19.4 CFM (0.543m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 36.5dB | 1.7 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0401524M2B-2T0FAN 40X15MM 24VDC |
294 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 8.3 CFM (0.232m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.88 W | 7300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
FFB0924HHFAN AXIAL 92X25.4MM 24VDC WIRE |
136 |
|
数据手册 |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 70.2 CFM (1.97m³/min) | 0.242 in H2O (60.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.1dB(A) | 5.76 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.286 lb (129.73 g) |
|

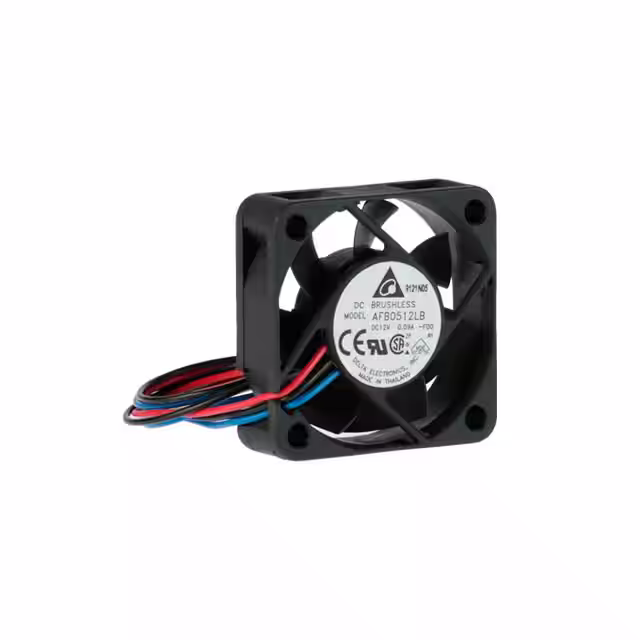

AFB0512LB-F00FAN AXIAL 50X15MM 12VDC WIRE |
335 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 9.9 CFM (0.277m³/min) | 0.126 in H2O (31.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 720 mW | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
AFB0912LFAN AXIAL 92X25.4MM 12VDC WIRE |
137 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 37.1 CFM (1.04m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 840 mW | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|
OD6015-12LBFAN AXIAL 60X15MM 12VDC WIRE |
745 |
|
数据手册 |
OD6015 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 12.0 CFM (0.336m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Auto Restart | 21.0dB | 840 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.079 lb (35.83 g) |
|
|
DC0501005M2B-2T0FAN 50X10MM 5VDC |
598 |
|
数据手册 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 400 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
AUB0812H-EAXIAL 80X25.4 12V TACH |
519 |
|
数据手册 |
AUB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 50.2 CFM (1.41m³/min) | 0.239 in H2O (59.5 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.5dB(A) | 2.76 W | 3900 RPM | 3 Wire Leads | - | 14 ~ 185°F (-10 ~ 85°C) | CE, cURus, TUV | - |
|
|
CFM-A225BG-123-374-22DC AXIAL FAN, 120 MM SQUARE, 25 |
234 |
|
数据手册 |
CFM-A2BG | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 80.2 CFM (2.25m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.6dB(A) | 5.04 W | 2300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
EF92252B2-1000U-A99FAN 92X25MM 24VDC |
220 |
|
数据手册 |
EF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB(A) | 1.08 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
EF92252B1-1000U-A99FAN 92X25MM 24VDC |
208 |
|
数据手册 |
EF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart | 34.0dB(A) | 1.52 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
BFB0312HHA-CKEXFAN BLOWER 30X10MM 12VDC |
10,080 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4259HQ/UF3F3-522DC FAN 15X3MM TACH |
241 |
|
数据手册 |
UF | Box | Active | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.309 CFM (0.009m³/min) | 0.082 in H2O (20.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 0.1 W | 14500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
BFB04512VHDX01FAN BLOWER 45X20MM 12VDC WIRE |
651 |
|
数据手册 |
BFB | Box | Active | 12VDC | Square/Rounded - 45mm L x 45mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.557 in H2O (138.7 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 30.5dB(A) | 1.92 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UR, VDE | 0.038 lb (17.24 g) |
