直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

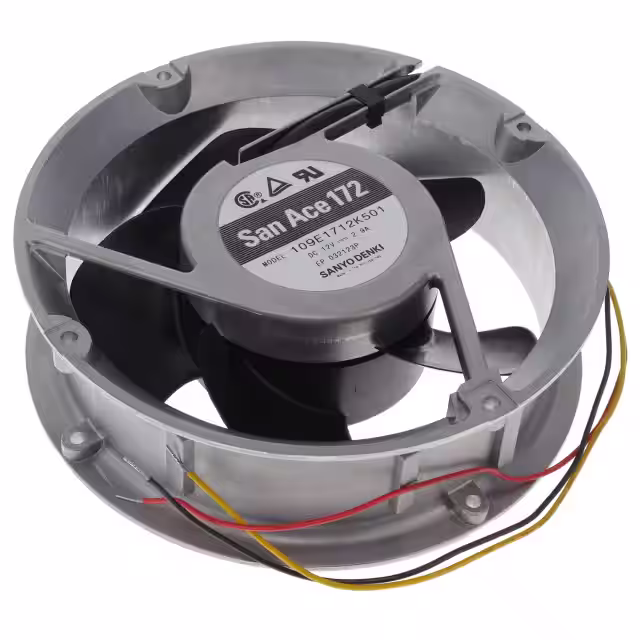

109E1712K501FAN AXIAL 172X51MM 12VDC WIRE |
2,684 |
|
数据手册 |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 34.8 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|

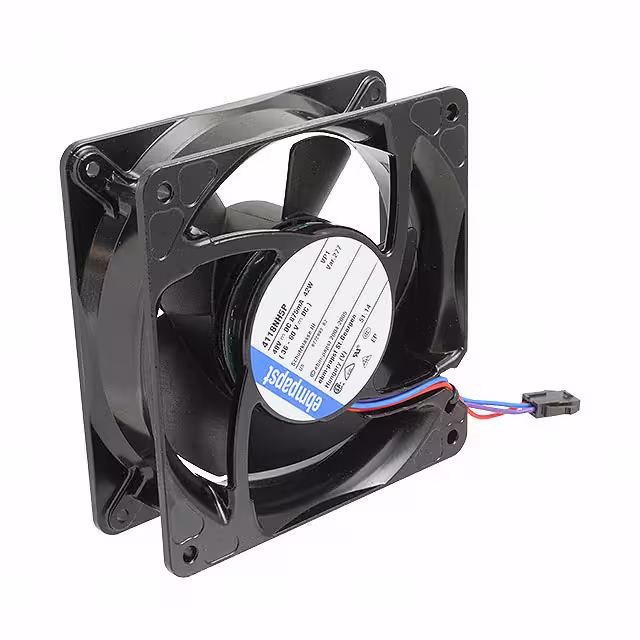

4118NH5P-277FAN AXL 119X38MM 48VDC RECT CONN |
3,630 |
|
数据手册 |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 229.5 CFM (6.43m³/min) | - | Ball | Tubeaxial | PWM Control | 70.0dB(A) | 42 W | 7500 RPM | 3 Position Rectangular Connector | - | -4 ~ 149°F (-20 ~ 65°C) | CCC, CSA, UL, VDE | 0.86 lb (390.09 g) |
|
8218J/2H4FAN AXIAL 80X38MM 48VDC WIRE |
139 |
|
数据手册 |
8200J | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 131.0 CFM (3.67m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 71.0dB(A) | 36 W | - | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.44 lb (199.58 g) |
|
RL90-18/12NFAN BLOWER 121X37MM 12VDC WIRE |
2,295 |
|
数据手册 |
RL90N | Bulk | Active | 12VDC | Square/Rounded - 121mm L x 121mm H | 37.00mm | 23.5 CFM (0.658m³/min) | - | Ball | Blower | - | 58.0dB(A) | 5.5 W | 2500 RPM | 2 Wire Leads | - | -22 ~ 167°F (-30 ~ 75°C) | - | 0.93 lb (421.84 g) |
|

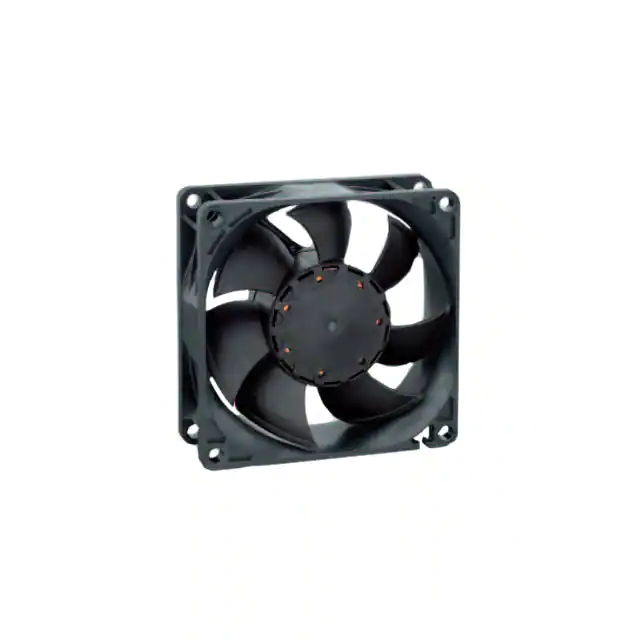

8454/2H4PFAN AXIAL 80X25.4MM 24VDC WIRE |
3,810 |
|
数据手册 |
8450 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 68.9 CFM (1.93m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 6.8 W | 6200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
OD172SAP-48HHBFAN AXIAL 172X51MM 48VDC WIRE |
1,362 |
|
数据手册 |
OD172S | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.980 in H2O (244.0 Pa) | Ball | Tubeaxial | Auto Restart | 57.0dB | - | 3900 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
8315100163FAN AXIAL 80X38MM 48VDC WIRE |
3,755 |
|
数据手册 |
AxiForce | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 103.0 CFM (2.88m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 26 W | 13200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
|
8315100166FAN AXIAL 80X38MM 48VDC WIRE |
3,950 |
|
数据手册 |
AxiForce | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 103.0 CFM (2.88m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 24 W | 13200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
|
8214J/2H3FAN AXIAL 80X38MM 24VDC WIRE |
104 |
|
数据手册 |
8200J | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 112.0 CFM (3.14m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 66.0dB(A) | 25 W | - | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.44 lb (199.58 g) |
|
4118NH5FAN AXIAL 119X38MM 48VDC WIRE |
4,852 |
|
数据手册 |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 229.5 CFM (6.43m³/min) | - | Ball | Tubeaxial | - | 70.0dB(A) | 45 W | 7500 RPM | 2 Wire Leads | - | - | CSA, UL, VDE | 0.86 lb (390.09 g) |
|
DV4112NFAN AXIAL 119X38MM 12VDC WIRE |
3,364 |
|
数据手册 |
DV4100 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 161.9 CFM (4.53m³/min) | - | Ball | Tubeaxial | - | 60.0dB(A) | 21 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | 0.827 lb (375.12 g) |
|

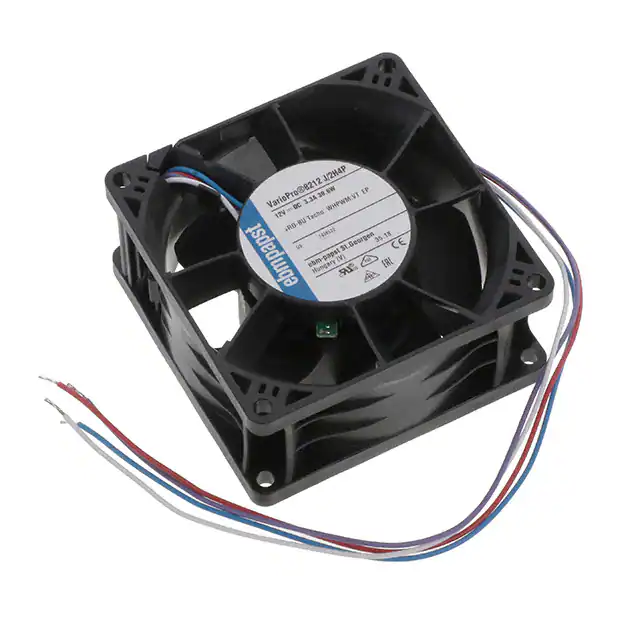

8212J/2H4PFAN AXIAL 80X38MM 12VDC WIRE |
3,846 |
|
数据手册 |
8200J, S-Force | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 71.0dB(A) | 39 W | 14000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
_Series.JPG)
|
6212NMFAN AXL 171.5X50.8MM 12VDC TERM |
4,421 |
|
数据手册 |
6200N | Bulk | Active | 12VDC | Round - 171.5mm Dia | 50.80mm | 206.0 CFM (5.77m³/min) | - | Ball | Tubeaxial | - | 50.0dB(A) | 12 W | 2850 RPM | 2 Terminals | - | -4 ~ 162°F (-20 ~ 72°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|

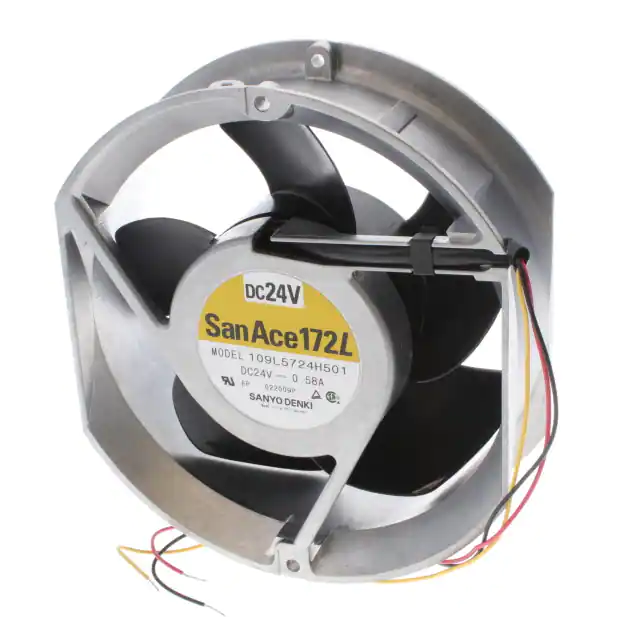

109L5724H501FAN AXIAL 172X51MM 24VDC WIRE |
137 |
|
数据手册 |
San Ace 172L | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 52.0dB(A) | 13.92 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|

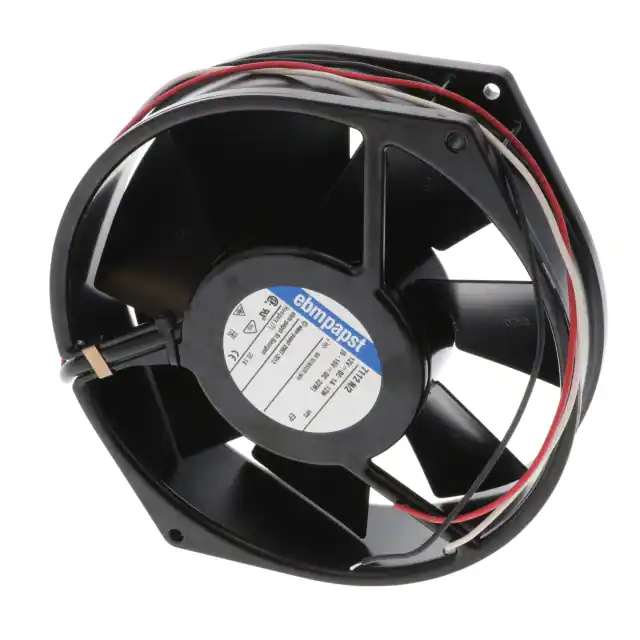

7112N/2FAN AXIAL 150X38MM 12VDC WIRE |
3,233 |
|
数据手册 |
7100N | Bulk | Active | 12VDC | Round - 150mm Dia | 38.00mm | 212.0 CFM (5.94m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 55.0dB(A) | 12 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 162°F (-20 ~ 72°C) | - | - |
|
OD180APL-12LBFAN AXIAL 180X65MM 12VDC WIRE |
2,734 |
|
数据手册 |
OD180APL | Bulk | Active | 12VDC | Square - 180mm L x 180mm H | 65.00mm | 300.0 CFM (8.40m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 46.1dB(A) | 19 W | 2150 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

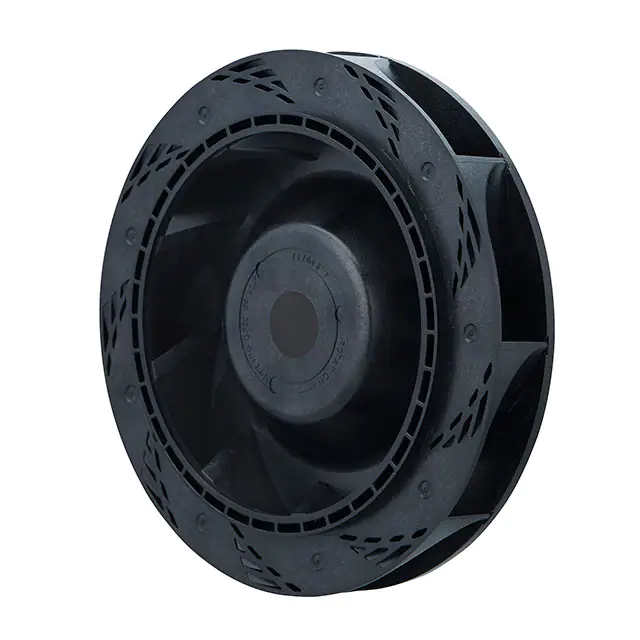

9W2TN48P1H001FAN IMP MTRZD 150X35MM 48VDC |
3,818 |
|
数据手册 |
San Ace 150W | Box | Active | 48VDC | Round - 150mm Dia | 35.00mm | 135.0 CFM (3.78m³/min) | 1.578 in H2O (393.1 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 15.4 W | 3800 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.86 lb (390.09 g) |
|
6318HFAN AXIAL 172X51MM 48VDC WIRE |
154 |
|
数据手册 |
6300H | Bulk | Active | 48VDC | Round - 172mm Dia | 51.00mm | 349.0 CFM (9.77m³/min) | - | Ball | Tubeaxial | - | 58.0dB(A) | 32 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 1.8 lbs (816.5 g) |
|

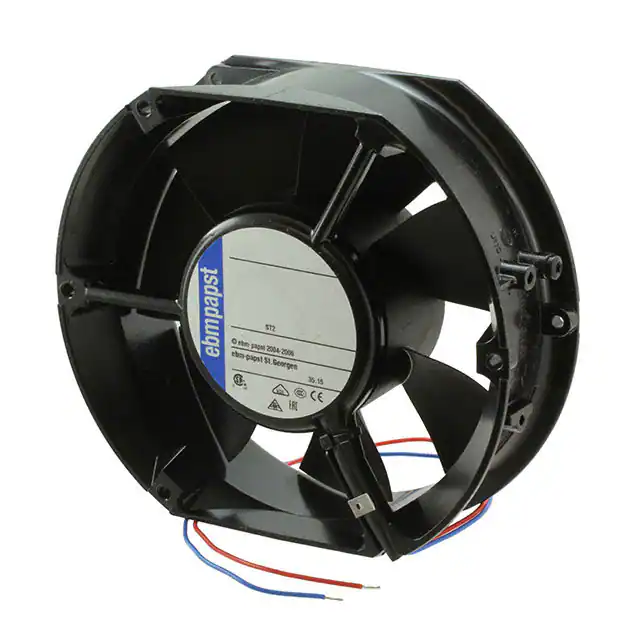

6448UFAN AXIAL 171.5X50.8MM 48VDC |
139 |
|
数据手册 |
6400U | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | - | 57.0dB(A) | 17 W | 3400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 152.60°F (-20 ~ 67°C) | UL | 1.9 lbs (861.8 g) |
|
5112NFAN AXIAL 135X38MM 12VDC WIRE |
2,854 |
|
数据手册 |
5100N | Box | Active | 12VDC | Square - 135mm L x 135mm H | 38.00mm | 147.0 CFM (4.12m³/min) | - | Ball | Tubeaxial | - | 48.0dB(A) | 9.3 W | 2900 RPM | 2 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE | 1.4 lbs (635.0 g) |
