直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G1212M1021FAN AXIAL 119X38MM 12VDC WIRE |
126 |
|
数据手册 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 2.52 W | 1950 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
DC0923812M2B-2T0FAN AXIAL 92X38MM 12VDC WIRE |
170 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 10.8 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

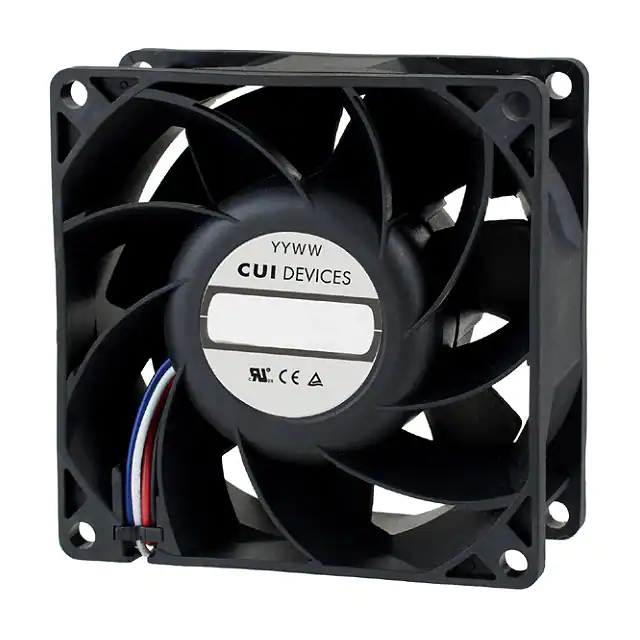

CFM-8038S-150-498FAN AXIAL 80X37.6MM 12VDC WIRE |
176 |
|
数据手册 |
CFM-80S | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 61.8 CFM (1.73m³/min) | 0.580 in H2O (144.5 Pa) | Sleeve | Tubeaxial | Auto Restart | 49.8dB(A) | 7.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A238B-126-435FAN AXIAL 120X37.5MM 12VDC WIRE |
131 |
|
数据手册 |
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 37.50mm | 100.7 CFM (2.82m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 43.5dB(A) | 5.76 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9S1212P4F011FAN AXIAL 119X25MM 12VDC WIRE |
278 |
|
数据手册 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 70.6 CFM (1.98m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 30.0dB(A) | 2.28 W | 2200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.309 lb (140.16 g) |
|
|
CFM-A238B-226-435-20FAN AXIAL 120X37.5MM 24VDC WIRE |
178 |
|
数据手册 |
CFM-120B | Box | Active | 24VDC | Square - 120mm L x 120mm H | 37.50mm | 100.7 CFM (2.82m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 43.5dB(A) | 6.48 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MR8038H12B-RSRFAN AXIAL 80X38MM 12VDC WIRE |
140 |
|
数据手册 |
MR8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 88.6 CFM (2.48m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB(A) | - | 7000 RPM | 2 Wire Leads | - | - | - | - |
|
E1225S05B1-FSRFAN AXIAL 120X25MM 5VDC WIRE |
103 |
|
数据手册 |
E1225 | Bulk | Active | 5VDC | Square - 120mm L x 120mm H | 25.00mm | 44.0 CFM (1.23m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 28.0dB(A) | - | 1400 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
ME6038L12B2-FSRFAN AXIAL 60X38MM 12VDC WIRE |
102 |
|
数据手册 |
ME6038 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 35.5 CFM (0.994m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 48.5dB(A) | - | 6000 RPM | 3 Wire Leads | - | - | cUL, UL | 0.23 lb (104.33 g) |
|

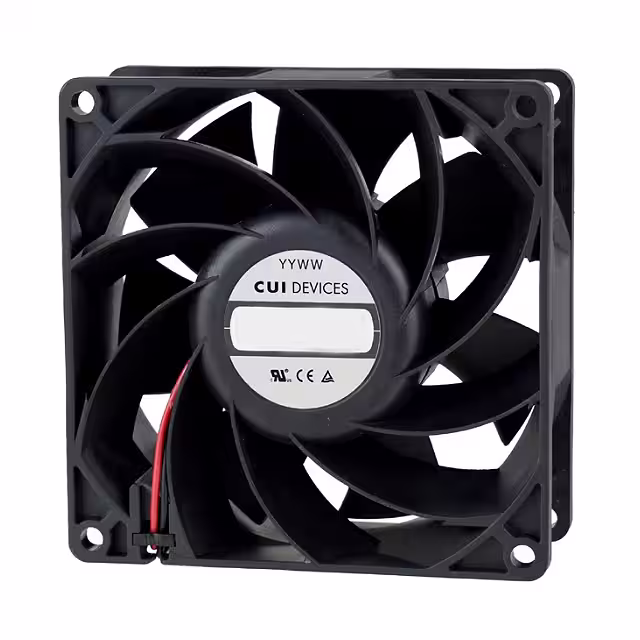

CFM-9238B-148-523FAN AXIAL 92X37.5MM 12VDC WIRE |
193 |
|
数据手册 |
CFM-92B | Box | Active | 12VDC | Square - 92mm L x 92mm H | 37.50mm | 92.0 CFM (2.58m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart | 52.3dB(A) | 11.4 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
MR8038H24B-RSRFAN AXIAL 80X38MM 24VDC WIRE |
117 |
|
数据手册 |
MR8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 88.6 CFM (2.48m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB(A) | - | 7000 RPM | 2 Wire Leads | - | - | - | - |
|
109R0648G401FAN AXIAL 60X25MM 48VDC WIRE |
151 |
|
数据手册 |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.36 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109R0648G402FAN AXIAL 60X25MM 48VDC WIRE |
243 |
|
数据手册 |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.36 W | 5600 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
CFM-3828BF-1235-614FAN AXIAL 38X28MM 12VDC WIRE |
130 |
|
数据手册 |
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 22.1 CFM (0.619m³/min) | 3.210 in H2O (800.0 Pa) | Ball | Tubeaxial | Auto Restart | 61.4dB(A) | 15.36 W | 23500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

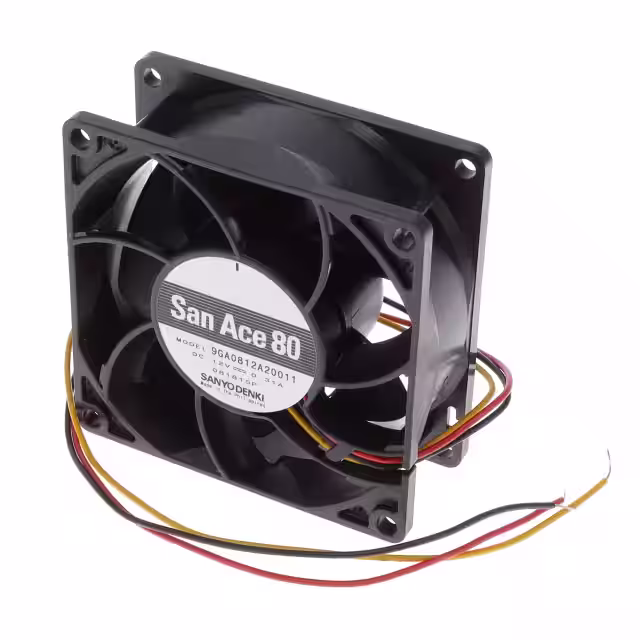

9GA0812A20011FAN AXIAL 80X32MM 12VDC WIRE |
140 |
|
数据手册 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 3.72 W | - | 3 Wire Leads | - | - | - | - |
|
9G1212A402FAN AXIAL 119X25MM 12VDC WIRE |
194 |
|
数据手册 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 100.1 CFM (2.80m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 4.8 W | 3150 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
9RA0624H40011FAN AXIAL 60X25MM 24VDC WIRE |
123 |
|
数据手册 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.1 CFM (0.535m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 1.2 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
CFM-8025BG-140-396-20FAN AXIAL 80X25.4MM 12VDC WIRE |
268 |
|
数据手册 |
CFM-80BG | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 41.3 CFM (1.16m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.6dB(A) | 3.24 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

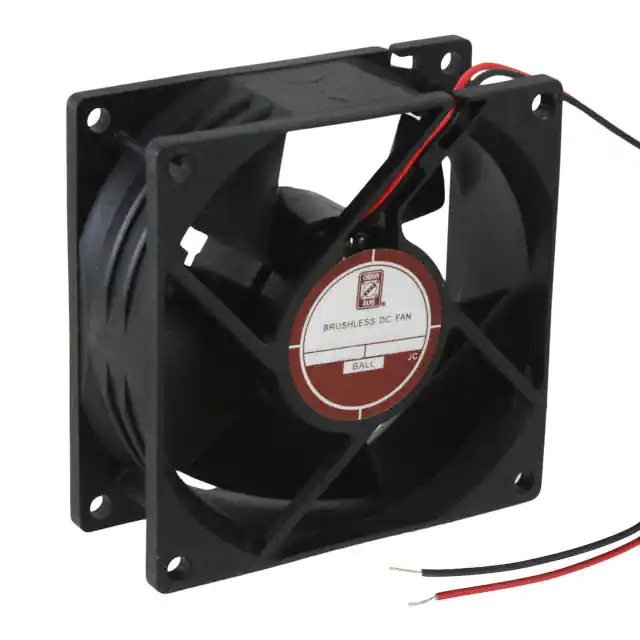

OD8032-48HBFAN AXIAL 80.5X32MM 48VDC WIRE |
189 |
|
数据手册 |
OD8032 | Box | Active | 48VDC | Square - 80.5mm L x 80.5mm H | 32.00mm | 50.0 CFM (1.40m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | - | 40.0dB | - | 3800 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
|
CFM-8025BG-160-484-20FAN AXIAL 80X25.4MM 12VDC WIRE |
377 |
|
数据手册 |
CFM-80BG | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 62.1 CFM (1.74m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 48.4dB(A) | 6.72 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
