直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFB0612HAFAN AXIAL 60X10MM 12VDC WIRE |
389 |
|
数据手册 |
EFB | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 18.0 CFM (0.504m³/min) | 0.132 in H2O (32.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 1.44 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
MR3010H05B-RSRFAN AXIAL 30X10MM BALL 5VDC WIRE |
658 |
|
数据手册 |
MR3010 | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 6.4 CFM (0.179m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart | 31.6dB(A) | - | 10000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010E12B-RSRFAN AXIAL 30X10MM 12VDC WIRE |
375 |
|
数据手册 |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 7.7 CFM (0.216m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Auto Restart | 34.0dB(A) | - | 11500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010H12B-RSRFAN AXIAL 30X10MM 12VDC WIRE |
279 |
|
数据手册 |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 6.4 CFM (0.179m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart | 31.6dB(A) | - | 10000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
AFB0524VHDFAN AXIAL 50X20MM 24VDC WIRE |
4,452 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.5dB(A) | 2.4 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
AFB0524HHBFAN AXIAL 50X15MM 24VDC WIRE |
3,214 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 16.2 CFM (0.454m³/min) | 0.315 in H2O (78.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 1.92 W | 6400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
AFB0505MBFAN AXIAL 50X15MM BALL 5VDC WIRE |
1,747 |
|
数据手册 |
AFB | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 15.00mm | 12.4 CFM (0.347m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.1 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
9S0612H402FAN AXIAL 60X25MM 12VDC WIRE |
797 |
|
数据手册 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 20.5 CFM (0.574m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 24.0dB(A) | 1.32 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|

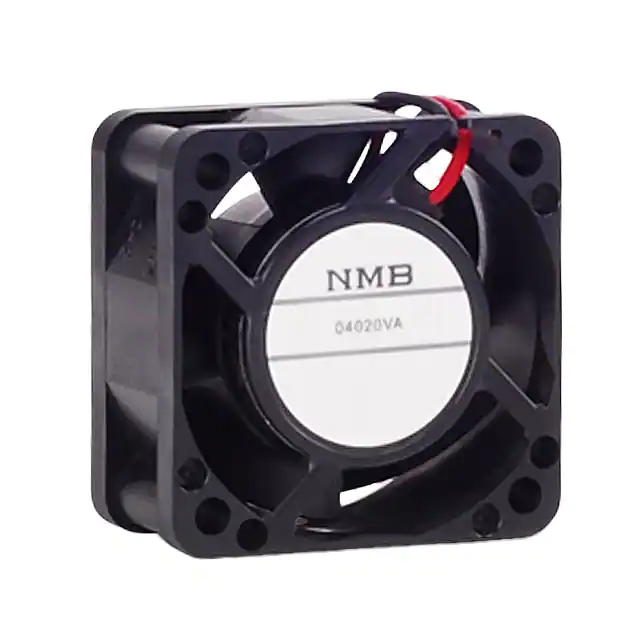

04020VA-12Q-CA-00FAN AXIAL 40X20MM 12VDC WIRE |
3,104 |
|
数据手册 |
04020VA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 12.4 CFM (0.347m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB | 1.56 W | 11000 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | 0.088 lb (39.92 g) |
|
|
04020VA-24Q-CA-00FAN AXIAL 40X20MM 24VDC WIRE |
785 |
|
数据手册 |
04020VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 12.4 CFM (0.347m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB | 2.16 W | 11000 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | 0.088 lb (39.92 g) |
|

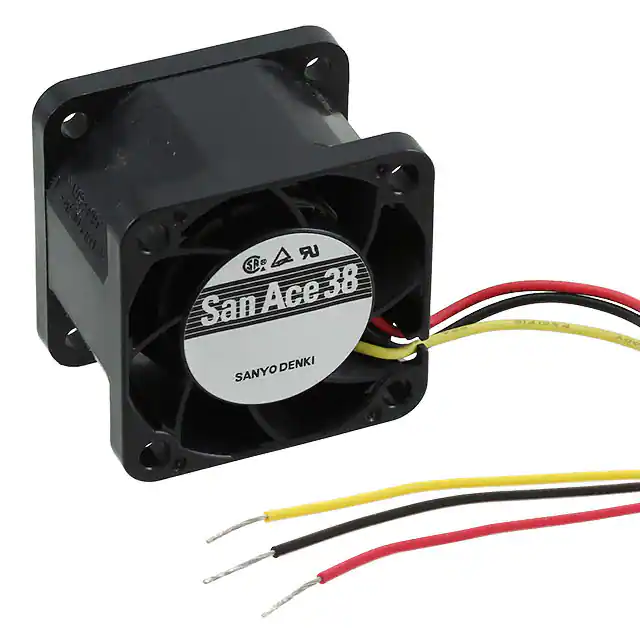

9GA0312P3K001FAN AXIAL 38X28MM 12VDC WIRE |
1,506 |
|
数据手册 |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 21.2 CFM (0.594m³/min) | 3.210 in H2O (800.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 7.4 W | 25000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
AFB0512MBFAN AXIAL 50X15MM 12VDC WIRE |
1,271 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 12.4 CFM (0.347m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 960 mW | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
DC0501005H2B-BT4FAN 50X10MM 5VDC PWM/TACH MOLEX |
179 |
|
数据手册 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 500 mW | 6500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

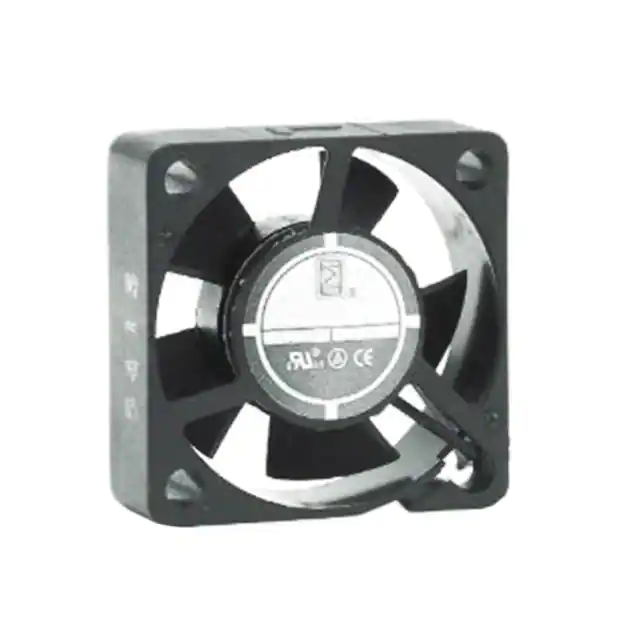

OD3010-12MB02AFAN AXIAL 30X10MM 12VDC WIRE |
387 |
|
数据手册 |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.3 CFM (0.092m³/min) | 0.180 in H2O (45.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.4dB(A) | 840 mW | 9000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus | 0.018 lb (8.16 g) |
|

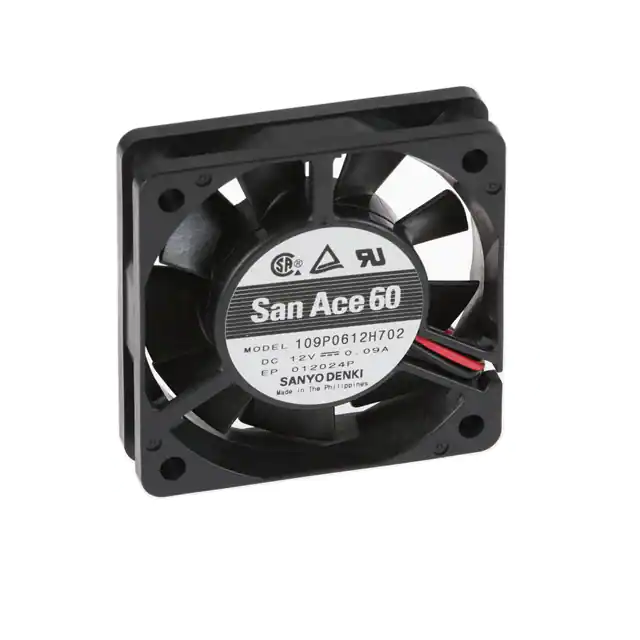

109P0612H702FAN AXIAL 60X15MM 12VDC WIRE |
746 |
|
数据手册 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.08 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|

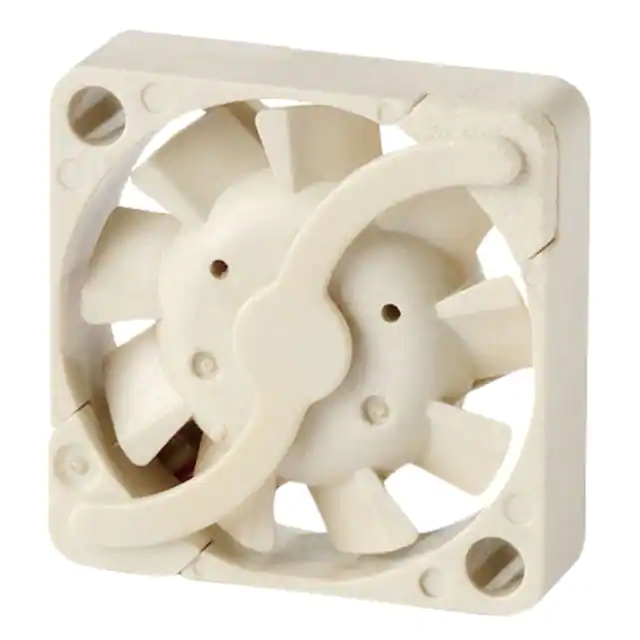

UF3C3-700TCFAN AXIAL 12X3MM VAPO 3VDC WIRE |
1,934 |
|
数据手册 |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.218 CFM (0.006m³/min) | 0.076 in H2O (18.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.3dB(A) | 300 mW | 16500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
EEC0251B3-000U-A99FAN AXIAL 120X25MM 12VDC WIRE |
5,217 |
|
数据手册 |
EEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart | 34.0dB(A) | 1.9 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.346 lb (156.94 g) |
|
FFB0924EHEFAN AXIAL 92X38MM 24VDC WIRE |
1,577 |
|
数据手册 |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 12 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
109P0424J3023FAN AXIAL 40X28MM 24VDC WIRE |
1,959 |
|
数据手册 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 16.2 CFM (0.454m³/min) | 0.843 in H2O (210.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 4.32 W | 12500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109P0612H701FAN AXIAL 60X15MM 12VDC WIRE |
409 |
|
数据手册 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.08 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
