直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3108NL-04W-B19-L50FAN AXIAL 80X20MM 12VDC WIRE |
4,043 |
|
数据手册 |
3108NL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 26.5 CFM (0.742m³/min) | 0.084 in H2O (20.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 26.0dB | 1.08 W | 2350 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-04W-B29-L50FAN AXIAL 80X20MM 12VDC WIRE |
2,398 |
|
数据手册 |
3108NL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 29.6 CFM (0.829m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB | 1.32 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-04W-B29-P00FAN AXIAL 80X20MM 12VDC WIRE |
2,859 |
|
数据手册 |
3108NL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 29.6 CFM (0.829m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB | 1.32 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-04W-B29-P50FAN AXIAL 80X20MM 12VDC WIRE |
2,101 |
|
数据手册 |
3108NL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 29.6 CFM (0.829m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB | 1.32 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-04W-B39-L00FAN AXIAL 80X20MM 12VDC WIRE |
4,931 |
|
数据手册 |
3108NL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 34.6 CFM (0.969m³/min) | 0.134 in H2O (33.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.5dB | 1.68 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-04W-B39-L50FAN AXIAL 80X20MM 12VDC WIRE |
1,351 |
|
数据手册 |
3108NL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 34.6 CFM (0.969m³/min) | 0.134 in H2O (33.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.5dB | 1.68 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-04W-B39-P00FAN AXIAL 80X20MM 12VDC WIRE |
2,963 |
|
数据手册 |
3108NL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 34.6 CFM (0.969m³/min) | 0.134 in H2O (33.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.5dB | 1.68 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-04W-B49-L00FAN AXIAL 80X20MM 12VDC WIRE |
1,762 |
|
数据手册 |
3108NL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 40.6 CFM (1.14m³/min) | 0.175 in H2O (43.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.5dB | 2.4 W | 3350 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-04W-B49-P00FAN AXIAL 80X20MM 12VDC WIRE |
2,920 |
|
数据手册 |
3108NL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 40.6 CFM (1.14m³/min) | 0.175 in H2O (43.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.5dB | 2.4 W | 3350 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-04W-B49-P50FAN AXIAL 80X20MM 12VDC WIRE |
4,314 |
|
数据手册 |
3108NL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 40.6 CFM (1.14m³/min) | 0.175 in H2O (43.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 38.5dB | 2.4 W | 3350 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-04W-B59-L50FAN AXIAL 80X20MM 12VDC WIRE |
3,813 |
|
数据手册 |
3108NL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.201 in H2O (50.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.0dB | 3.36 W | 3750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|

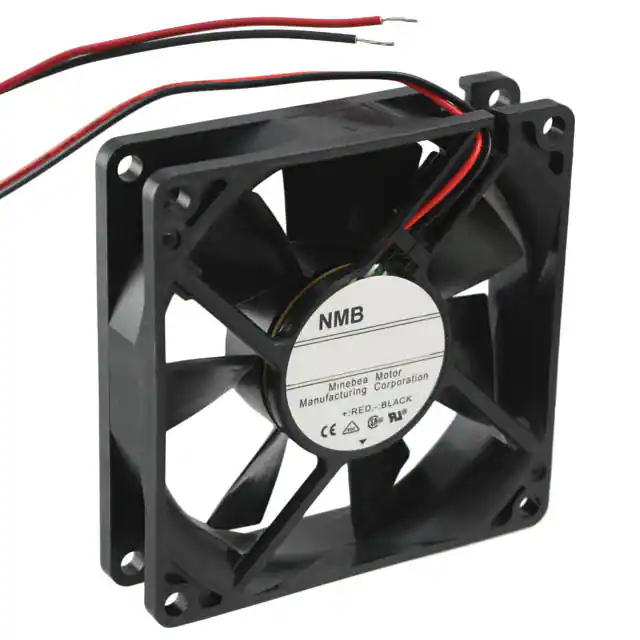

3108NL-04W-B59-P00FAN AXIAL 80X20MM 12VDC WIRE |
1,125 |
|
数据手册 |
3108NL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.201 in H2O (50.1 Pa) | Ball | Tubeaxial | - | 42.0dB | 3.36 W | 3750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-04W-B59-P50FAN AXIAL 80X20MM 12VDC WIRE |
1,183 |
|
数据手册 |
3108NL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.201 in H2O (50.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.0dB | 3.36 W | 3750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-05W-B39-L00FAN AXIAL 80X20MM 24VDC WIRE |
1,540 |
|
数据手册 |
3108NL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 34.6 CFM (0.969m³/min) | 0.134 in H2O (33.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.5dB | 1.68 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-05W-B39-P50FAN AXIAL 80X20MM 24VDC WIRE |
3,155 |
|
数据手册 |
3108NL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 34.6 CFM (0.969m³/min) | 0.134 in H2O (33.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.5dB | 1.68 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-05W-B49-P00FAN AXIAL 80X20MM 24VDC WIRE |
2,152 |
|
数据手册 |
3108NL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 40.6 CFM (1.14m³/min) | 0.175 in H2O (43.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.5dB | 2.64 W | 3350 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
3108NL-05W-B59-L00FAN AXIAL 80X20MM 24VDC WIRE |
4,298 |
|
数据手册 |
3108NL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.201 in H2O (50.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB | 3.6 W | 3750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
3110KL-04W-B10-G00FAN AXIAL 80X25MM 12VDC WIRE |
2,035 |
|
数据手册 |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 24.7 CFM (0.692m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | - | 22.0dB | 1.2 W | 2150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B20-G00FAN AXIAL 80X25MM 12VDC WIRE |
4,280 |
|
数据手册 |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | - | 25.0dB | 1.32 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3110KL-04W-B29-G50FAN AXIAL 80X25MM 12VDC WIRE |
2,297 |
|
数据手册 |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 25.0dB | 1.32 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
