直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

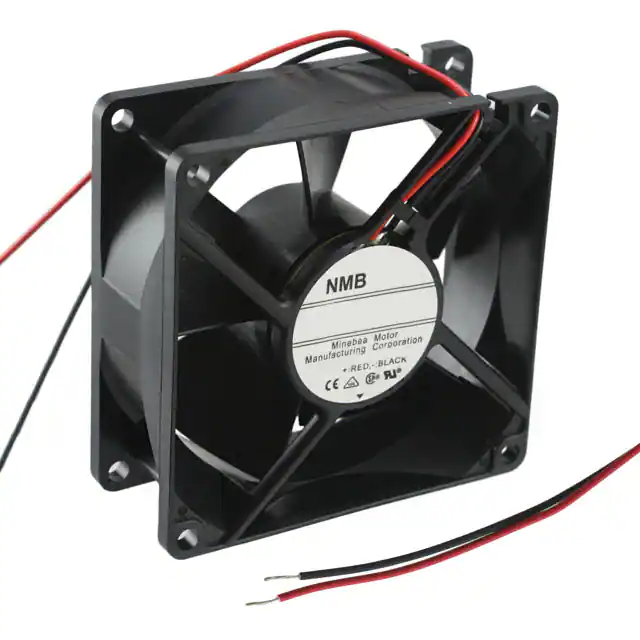

3112KL-05W-B50-E00FAN AXIAL 80X32MM 24VDC WIRE |
4,336 |
|
数据手册 |
3112KL | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 51.5 CFM (1.44m³/min) | 0.261 in H2O (65.0 Pa) | Ball | Tubeaxial | - | 41.0dB | 4.56 W | 3850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3112KL-05W-B60-E00FAN AXIAL 80X32MM 24VDC WIRE |
3,435 |
|
数据手册 |
3112KL | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 58.6 CFM (1.64m³/min) | 0.317 in H2O (78.9 Pa) | Ball | Tubeaxial | - | 44.0dB | 5.04 W | 4350 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3610KL-04W-B10-G00FAN AXIAL 92X25MM 12VDC WIRE |
3,165 |
|
数据手册 |
3610KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 26.5 CFM (0.742m³/min) | 0.057 in H2O (14.2 Pa) | Ball | Tubeaxial | - | 25.0dB | 880 mW | 1750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-04W-B20-G00FAN AXIAL 92X25MM 12VDC WIRE |
4,523 |
|
数据手册 |
3610KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 33.5 CFM (0.938m³/min) | 0.081 in H2O (20.1 Pa) | Ball | Tubeaxial | - | 29.5dB | 1.32 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-04W-B30-D00FAN AXIAL 92X25MM 12VDC WIRE |
4,121 |
|
数据手册 |
3610KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 40.6 CFM (1.14m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | - | 34.0dB | 1.92 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-04W-B30-G00FAN AXIAL 92X25MM 12VDC WIRE |
2,036 |
|
数据手册 |
3610KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 40.6 CFM (1.14m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | - | 34.0dB | 1.92 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-04W-B40-G00FAN AXIAL 92X25MM 12VDC WIRE |
4,818 |
|
数据手册 |
3610KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 47.6 CFM (1.33m³/min) | 0.149 in H2O (37.1 Pa) | Ball | Tubeaxial | - | 37.5dB | 2.64 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-04W-B50-D00FAN AXIAL 92X25MM 12VDC WIRE |
4,981 |
|
数据手册 |
3610KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 54.7 CFM (1.53m³/min) | 0.192 in H2O (48.0 Pa) | Ball | Tubeaxial | - | 41.0dB | 3.75 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-04W-B50-G00FAN AXIAL 92X25MM 12VDC WIRE |
1,450 |
|
数据手册 |
3610KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 54.7 CFM (1.53m³/min) | 0.192 in H2O (48.0 Pa) | Ball | Tubeaxial | - | 41.0dB | 3.75 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-05W-B10-D00FAN AXIAL 92X25MM 24VDC WIRE |
3,311 |
|
数据手册 |
3610KL | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 26.5 CFM (0.742m³/min) | 0.057 in H2O (14.2 Pa) | Ball | Tubeaxial | - | 25.0dB | 1.2 W | 1750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-05W-B10-G00FAN AXIAL 92X25MM 24VDC WIRE |
3,204 |
|
数据手册 |
3610KL | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 26.5 CFM (0.742m³/min) | 0.057 in H2O (14.2 Pa) | Ball | Tubeaxial | - | 25.0dB | 1.2 W | 1750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-05W-B20-D00FAN AXIAL 92X25MM 24VDC WIRE |
1,088 |
|
数据手册 |
3610KL | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 33.5 CFM (0.938m³/min) | 0.081 in H2O (20.1 Pa) | Ball | Tubeaxial | - | 29.5dB | 1.44 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-05W-B30-D00FAN AXIAL 92X25MM 24VDC WIRE |
2,827 |
|
数据手册 |
3610KL | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 40.6 CFM (1.14m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | - | 34.0dB | 2.16 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-05W-B30-G00FAN AXIAL 92X25MM 24VDC WIRE |
1,871 |
|
数据手册 |
3610KL | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 40.6 CFM (1.14m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | - | 34.0dB | 2.16 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-05W-B40-D00FAN AXIAL 92X25MM 24VDC WIRE |
3,874 |
|
数据手册 |
3610KL | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 47.6 CFM (1.33m³/min) | 0.149 in H2O (37.1 Pa) | Ball | Tubeaxial | - | 37.5dB | 2.88 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-05W-B40-G00FAN AXIAL 92X25MM 24VDC WIRE |
4,761 |
|
数据手册 |
3610KL | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 47.6 CFM (1.33m³/min) | 0.149 in H2O (37.1 Pa) | Ball | Tubeaxial | - | 37.5dB | 2.88 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-05W-B50-G00FAN AXIAL 92X25MM 24VDC WIRE |
3,180 |
|
数据手册 |
3610KL | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 54.7 CFM (1.53m³/min) | 0.192 in H2O (48.0 Pa) | Ball | Tubeaxial | - | 41.0dB | 3.84 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-05W-B60-G00FAN AXIAL 92X25MM 24VDC WIRE |
4,619 |
|
数据手册 |
3610KL | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 61.8 CFM (1.73m³/min) | 0.229 in H2O (57.0 Pa) | Ball | Tubeaxial | - | 44.5dB | 4.8 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|

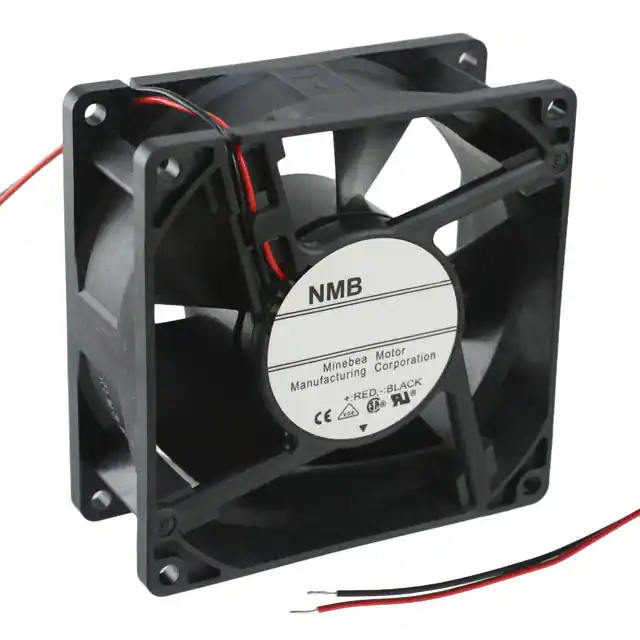

3615KL-04W-B30-P00FAN AXIAL 92X38.4MM 12VDC WIRE |
4,556 |
|
数据手册 |
3615KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.40mm | 60.3 CFM (1.69m³/min) | 0.232 in H2O (57.8 Pa) | Ball | Tubeaxial | - | 40.5dB | 3 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
|
3615KL-04W-B50-P00FAN AXIAL 92X38.4MM 12VDC WIRE |
3,923 |
|
数据手册 |
3615KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.40mm | 76.2 CFM (2.13m³/min) | 0.358 in H2O (89.2 Pa) | Ball | Tubeaxial | - | 46.5dB | 5.52 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
