直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

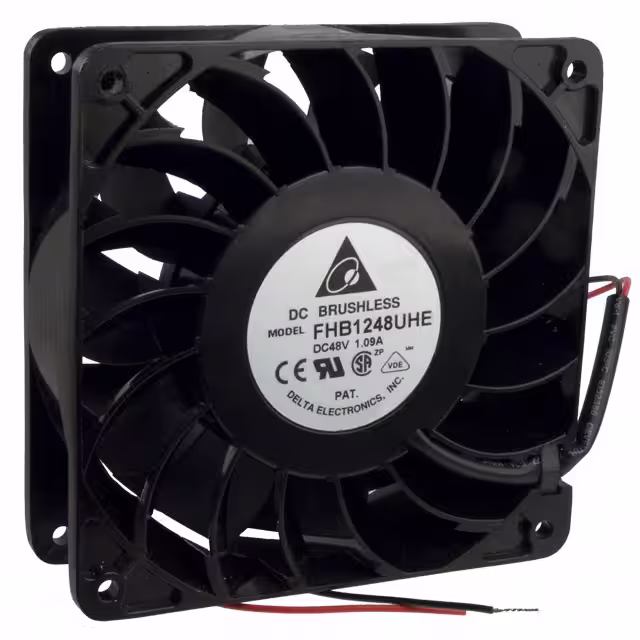

FHB1248UHEFAN AXIAL 120X38MM 48VDC WIRE |
4,071 |
|
数据手册 |
FHB | Tray | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 223.2 CFM (6.25m³/min) | 1.241 in H2O (309.1 Pa) | Ball | Tubeaxial | - | 68.0dB(A) | 43.68 W | 5300 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
9WFA0924P4G001FAN AXIAL 92X25.2MM 24VDC WIRE |
2,720 |
|
数据手册 |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.20mm | 100.6 CFM (2.82m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 10.8 W | 7350 RPM | 4 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.375 lb (170.1 g) |
|
|
9WFA0924P4H001FAN AXIAL 92X25.2MM 24VDC WIRE |
4,388 |
|
数据手册 |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.20mm | 83.0 CFM (2.32m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 6.72 W | 6100 RPM | 4 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.375 lb (170.1 g) |
|
4318/17FAN AXIAL 119X32MM 48VDC WIRE |
4,781 |
|
数据手册 |
4300 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | 0.281 in H2O (70.0 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 5.3 W | 2800 RPM | 3 Wire Leads | - | -4 ~ 151°F (-20 ~ 66°C) | CCC, CE, CSA, EAC, UL, VDE | - |
|

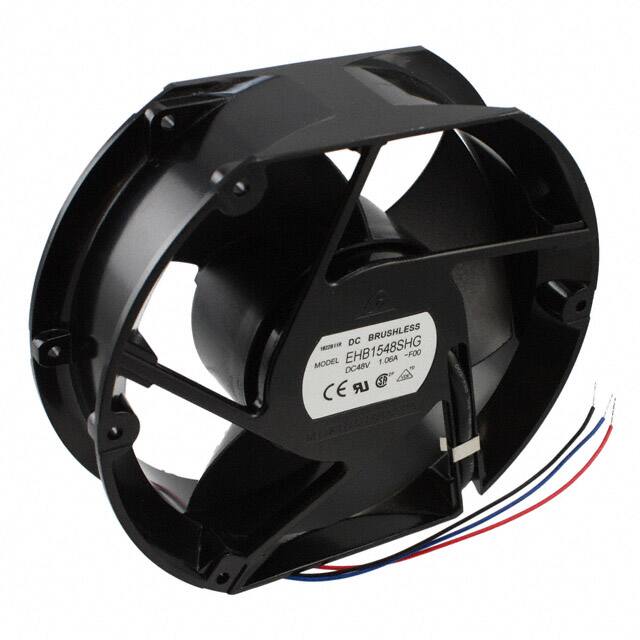

EHB1548SHG-F00FAN AXIAL 172X50.8MM 48VDC WIRE |
1,739 |
|
数据手册 |
EHB | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 347.1 CFM (9.72m³/min) | 1.492 in H2O (371.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.5dB(A) | 42.24 W | 4900 RPM | 3 Wire Leads | - | -40 ~ 176°F (-40 ~ 80°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
4114N/2XFAN AXIAL 119X38MM 24VDC WIRE |
1,353 |
|
数据手册 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | 70.0dB(A) | - | - | 3 Wire Leads | - | - | - | - |
|

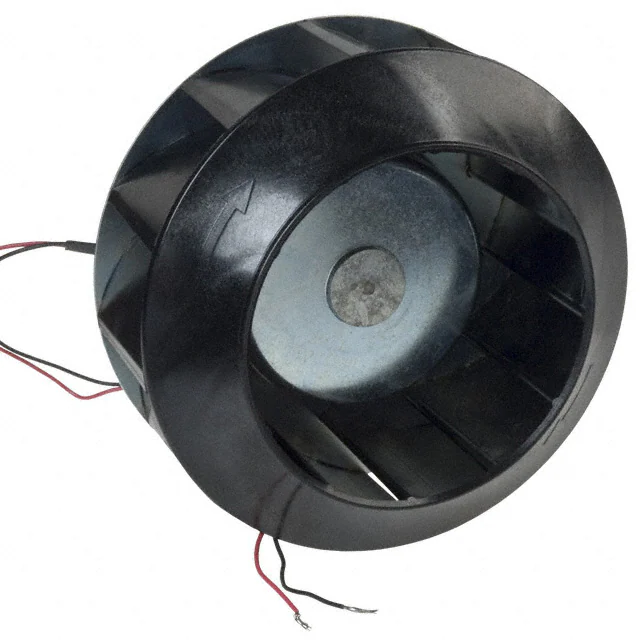

19031605AFAN IMP MTRZD 133X91MM DDF24B1 |
4,549 |
|
数据手册 |
Diplomat | - | Obsolete | 24VDC | Round - 133mm Dia | 91.00mm | 175.0 CFM (4.90m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Motorized Impellers | - | 57.1dB(A) | 26 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 1.5 lbs (680.4 g) |
|
|
9GT0824S4002FAN AXIAL 80X25.2MM 24VDC WIRE |
1,685 |
|
数据手册 |
San Ace 80T | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 65.7 CFM (1.84m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 5.28 W | 6700 RPM | 2 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
MS1751L12B-FHR-2EMFAN AXIAL 171X51.5MM 12VDC WIRE |
1,778 |
|
数据手册 |
MS1751-H | Bulk | Active | 12VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 184.4 CFM (5.16m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart | 53.0dB(A) | - | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 1.5 lbs (670.0 g) |
|
|
MS1751M12B-FHR-2EMFAN AXIAL 171X51.5MM 12VDC WIRE |
2,835 |
|
数据手册 |
MS1751-H | Bulk | Active | 12VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 352.1 CFM (9.86m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Auto Restart | 66.0dB(A) | - | 4500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 1.5 lbs (670.0 g) |
|
|
MS1751H12B-FHR-2EMFAN AXIAL 171X51.5MM 12VDC WIRE |
3,844 |
|
数据手册 |
MS1751-H | Bulk | Active | 12VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 418.0 CFM (11.70m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Auto Restart | 71.0dB(A) | - | 5500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 1.5 lbs (670.0 g) |
|
|
MS1751L24B-FHR-2EMFAN AXIAL 171X51.5MM 24VDC WIRE |
1,713 |
|
数据手册 |
MS1751-H | Bulk | Active | 24VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 184.4 CFM (5.16m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart | 53.0dB(A) | - | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 1.5 lbs (670.0 g) |
|
|
MS1751M24B-FHR-2EMFAN AXIAL 171X51.5MM 24VDC WIRE |
4,035 |
|
数据手册 |
MS1751-H | Bulk | Active | 24VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 352.1 CFM (9.86m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Auto Restart | 66.0dB(A) | - | 4500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 1.5 lbs (670.0 g) |
|
|
MS1751L48B-FHR-2EMFAN AXIAL 171X51.5MM 48VDC WIRE |
2,038 |
|
数据手册 |
MS1751-H | Bulk | Active | 48VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 184.4 CFM (5.16m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart | 53.0dB(A) | - | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 1.5 lbs (670.0 g) |
|
|
MS1751M48B-FHR-2EMFAN AXIAL 171X51.5MM 48VDC WIRE |
1,084 |
|
数据手册 |
MS1751-H | Bulk | Active | 48VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 352.1 CFM (9.86m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Auto Restart | 66.0dB(A) | - | 4500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 1.5 lbs (670.0 g) |
|
|
XGC0384BX-1000U-H9H48VDC FAN 120X38MM PWM |
2,306 |
|
数据手册 |
XG | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 301.7 CFM (8.45m³/min) | 5.580 in H2O (1389.9 Pa) | Ball | Tubeaxial | PWM Control | 75.0dB(A) | 101 W | 11600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
XGC0384BX-1000U-G9H48VDC FAN 120X38MM ALARM |
3,278 |
|
数据手册 |
XG | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 301.7 CFM (8.45m³/min) | 5.580 in H2O (1389.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 75.0dB(A) | 101 W | 11600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
9GT0812S4D001FAN AXIAL 80X25.2MM 12VDC WIRE |
4,472 |
|
数据手册 |
San Ace 80T | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 65.7 CFM (1.84m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 5.52 W | 6700 RPM | 3 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9GT0812S4001FAN AXIAL 80X25.2MM 12VDC WIRE |
3,526 |
|
数据手册 |
San Ace 80T | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.20mm | 65.7 CFM (1.84m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 5.52 W | 6700 RPM | 3 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9GT0824S4001FAN AXIAL 80X25.2MM 24VDC WIRE |
3,217 |
|
数据手册 |
San Ace 80T | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 65.7 CFM (1.84m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 5.28 W | 6700 RPM | 3 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
