直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LG0824H4D00180X25MM 24V, HIGH PERF LONG LIFE |
1,579 |
|
数据手册 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0824L4D00180X25MM 24V, HIGH PERF LONG LIFE |
3,663 |
|
数据手册 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0824G4002FAN AXIAL 80X25.2MM 24VDC WIRE |
4,575 |
|
数据手册 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 54.3 CFM (1.52m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 3.36 W | 5500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9WV0924H100292X38MM 24V,SPLASH PROOF DC 0 |
2,888 |
|
数据手册 |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9LG0912P4H001FAN AXIAL 92X25MM 12VDC WIRE |
3,717 |
|
数据手册 |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 1.8 W | 3150 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9LG0924P4H001FAN AXIAL 92X25MM 24VDC WIRE |
4,921 |
|
数据手册 |
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 1.68 W | 3150 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
BFB1624MFAN BLOWER 159X40MM 24VDC WIRE |
4,456 |
|
数据手册 |
BFB | Tray | Obsolete | 24VDC | Rectangular/Rounded - 159mm L x 165mm H | 40.00mm | 55.1 CFM (1.54m³/min) | 1.102 in H2O (274.5 Pa) | Ball | Blower | Locked Rotor Protection | 54.5dB(A) | 13.44 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|
|
9LG0824G4D001FAN AXIAL 80X25.2MM 24VDC WIRE |
2,517 |
|
数据手册 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 54.3 CFM (1.52m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 3.36 W | 5500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9LG0824G400180X25MM 24V, HIGH PERF LONG LIFE |
2,215 |
|
数据手册 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0812G400180X25MM 12V, HIGH PERF LONG LIFE |
2,526 |
|
数据手册 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0824S4D00180X25MM 24V, HIGH PERF LONG LIFE |
4,986 |
|
数据手册 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0812S4D00180X25MM 12V, HIGH PERF LONG LIFE |
4,352 |
|
数据手册 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0812G4D00180X25MM 12V, HIGH PERF LONG LIFE |
1,804 |
|
数据手册 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|

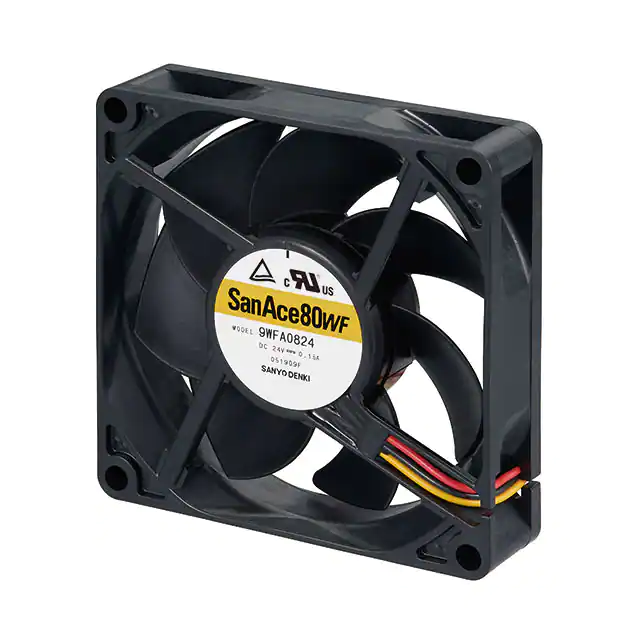

9WFA0824G6D001FAN AXIAL 80X20MM 24VDC WIRE |
2,964 |
|
数据手册 |
San Ace 80WF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 50.6 CFM (1.42m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB(A) | 3.6 W | 6000 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.232 lb (105.23 g) |
|
|
4182NGDC TUBEAXIAL FAN |
4,408 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9LG0824P4H001FAN AXIAL 80X25MM 24VDC WIRE |
4,149 |
|
数据手册 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 1.2 W | 3700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9WV0924C1D00192X38MM 24V,SPLASH PROOF DC LCKR |
2,523 |
|
数据手册 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | 58.0dB(A) | - | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
17001170AFAN AXIAL 12VDC GLD12B3E2X-E3 |
3,166 |
|
数据手册 |
- | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.10mm | 150.0 CFM (4.20m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.6dB(A) | 15.6 W | 3300 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
9WS0812F402FAN AXIAL 80X25MM 12VDC WIRE |
3,263 |
|
数据手册 |
San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.56 W | 2700 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9WS0812F4021FAN AXIAL 80X25MM 12VDC WIRE |
1,819 |
|
数据手册 |
San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.56 W | 2700 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
