交流风扇
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

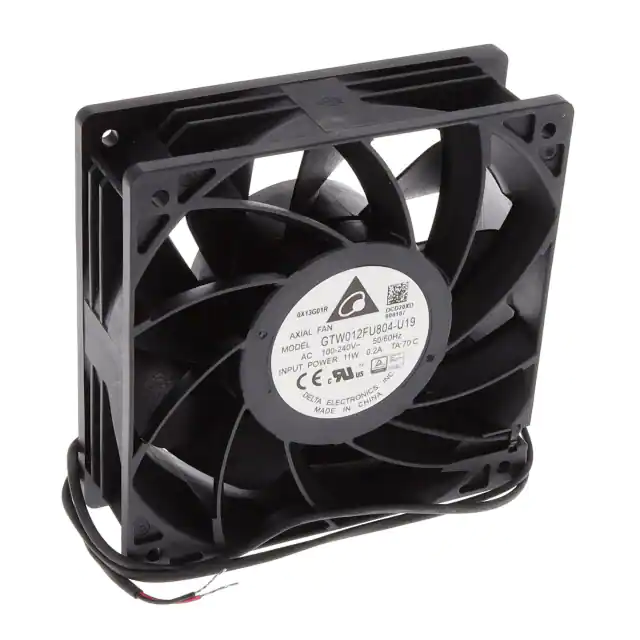

GTW012FU804-U19120X120X38MM 220VAC FAN EC MOTOR Delta Electronics |
261 |
|
数据手册 |
GTW | Box | Active | 220VAC | Square - 120mm L x 120mm H | 38.00mm | 145.0 CFM (4.06m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Electronic Commutation (EC), Thermal Overload Protector (TOP) | 54.9dB(A) | 11.00W | 4200 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.081 lb (36.74 g) |
|

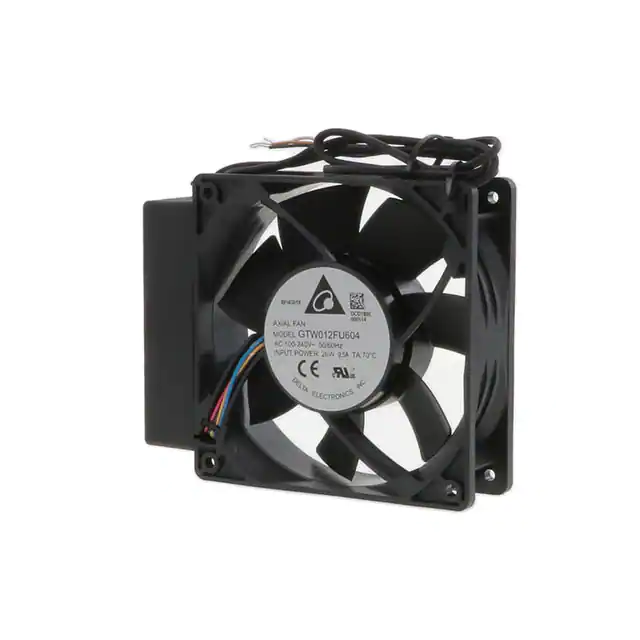

GTW012FU604120X145X38MM 100 / 240V AC FAN W Delta Electronics |
153 |
|
数据手册 |
GTW | Box | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 184.0 CFM (5.15m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Electronic Commutation (EC), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.5dB(A) | 18.00W | 4100 RPM | 5 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
AFL12AUHE-CGQ5AXIAL 120X38MM 110/230VAC IP52 Delta Electronics |
118 |
|
数据手册 |
AFL | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 103.6 CFM (2.90m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 4.60W | 3200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -40°C ~ 60°C | ATEX, CE, cURus, TUV | - |
|

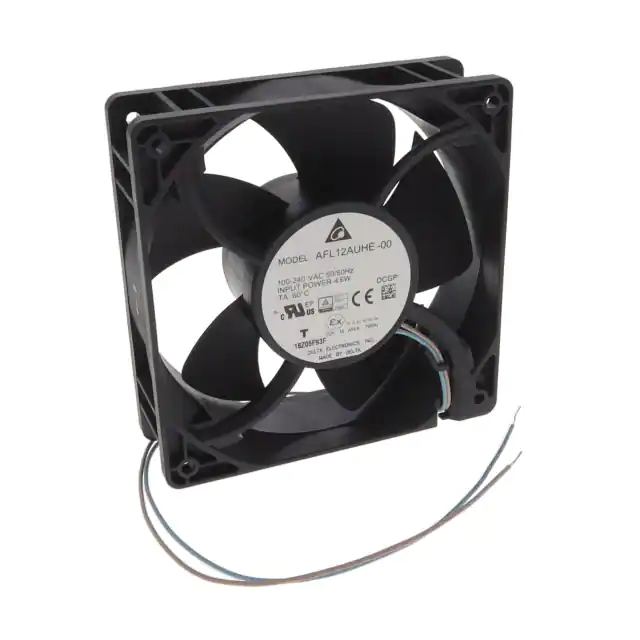

AFL12AUHE-00120X120X38MM 110 /230V AC FAN W/ Delta Electronics |
1,936 |
|
数据手册 |
AFL, EST | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 103.6 CFM (2.90m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Electronic Commutation (EC), Locked Rotor Protection | 45.0dB(A) | 4.60W | 3200 RPM | 2 Wire Leads | IP52 | -4 ~ 140°F (-20 ~ 60°C) | - | - |
|

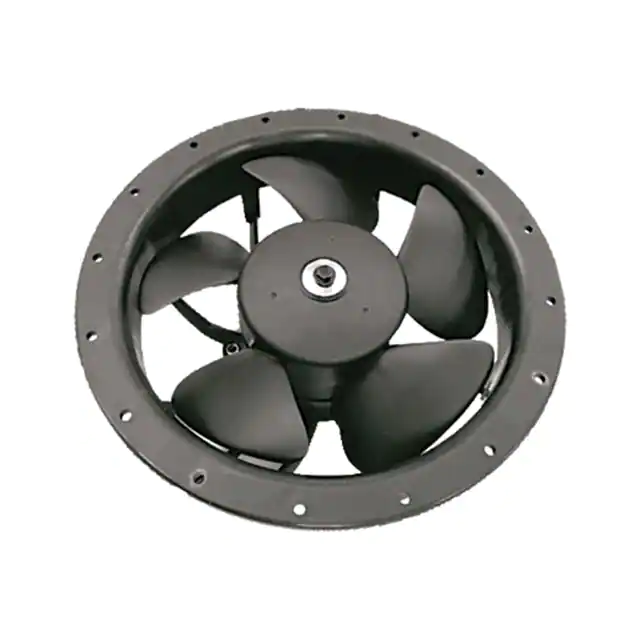

AFL22AUHW-P1222X222X78MM 115 / 230V AC FAN W Delta Electronics |
3,677 |
|
数据手册 |
AFL, EST | Box | Active | 115/230VAC | Round - 222mm Dia | 85.70mm | 323.9 CFM (9.07m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Dual Speed, Dual Voltage, Electronic Commutation (EC), Locked Rotor Protection, Thermal Overload Protector (TOP) | 57.0dB(A) | 8.00W, 17.00W | 1800/2500 RPM | 3 Wire Leads | IP56 - Dust Protected, Water Resistant | -40 ~ 131°F (-40 ~ 55°C) | cURus | - |
|
|
AFL15AUHSAXIAL 151X60.5MM 115/230VAC Delta Electronics |
151 |
|
数据手册 |
AFL | Box | Active | 115/230VAC | Round - 151mm Dia | 60.50mm | 214.1 CFM (5.99m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Dual Speed, Dual Voltage, Locked Rotor Protection, Thermal Overload Protector (TOP) | 56.0dB(A) | 10.00W, 17.00W | 2600 RPM/3200 RPM | 3 Wire Leads | - | -40°C ~ 60°C | cURus | - |
|

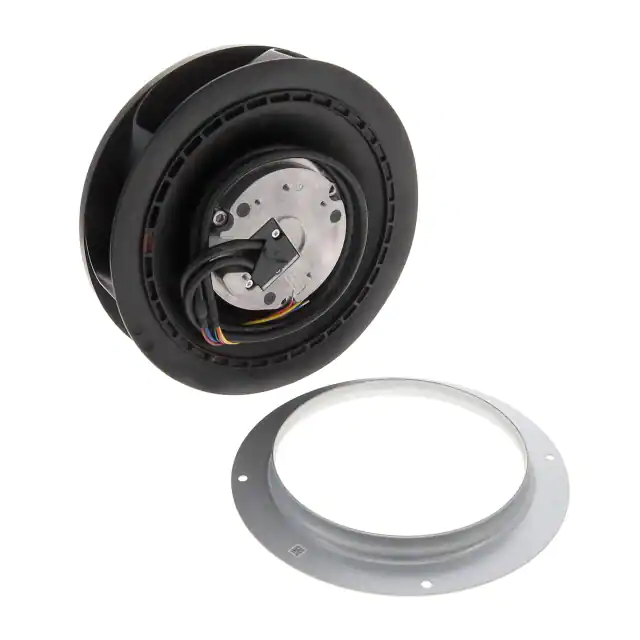

GTB019BUA07R-V E1FAN BLWR CENT 190MM Delta Electronics |
4,655 |
|
数据手册 |
GTB | Box | Active | 115VAC | Round - 190mm Dia | 68.61mm | 432.8 CFM (12.12m³/min) | 2.880 in H2O (717.0 Pa) | Ball | Motorized Impellers | Electronic Commutation (EC), PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 85W | 3100 RPM | - | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | cUL, TUV, UL | - |
|
|
AFL12AUHE-CAXIAL 120X38MM 110/230VAC IP52 Delta Electronics |
205 |
|
数据手册 |
AFL | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 103.6 CFM (2.90m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 4.60W | 3200 RPM | 2 Wire Leads | IP52 | -40°C ~ 60°C | ATEX, CE, cURus, TUV | - |
|
|
AFL12AUHE-CGQ6AXIAL 120X38MM 110/230VAC IP55 Delta Electronics |
287 |
|
数据手册 |
AFL | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 93.8 CFM (2.63m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 3.70W | 2900 RPM | 2 Wire Leads | IP52 | -40°C ~ 60°C | ATEX, CE, cURus, TUV | - |
|
|
MR83AUPE-104S10MOTOR 83X81MM 115/230 VAC IP54 Delta Electronics |
138 |
|
数据手册 |
MR | Box | Active | 115/230VAC | Square - 83mm L x 83mm H | 81.00mm | - | - | Ball | Motorized Impellers | Electronic Commutation (EC), Locked Rotor Protection | - | 15.00W | 1300 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -40°C ~ 55°C | ATEX, CE, cURus, TUV | - |
