交流风扇
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA172SAP-11-2TBFAN AXIAL 172X50.8MM 115VAC TERM Orion Fans |
4,859 |
|
数据手册 |
OA172SAP | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Capacitor | 42.0dB | 20.00W | 2400 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 2.6 lbs (1.2 kg) |
|
OA172SAPL-22-1TBIP55FAN AXIAL 172X38MM 230VAC TERM Orion Fans |
4,684 |
|
数据手册 |
OA172SAPL | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.50mm | 228.0 CFM (6.38m³/min) | 0.870 in H2O (216.7 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 58.0dB | 28.00W | 3400 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 1.6 lbs (725.7 g) |
|

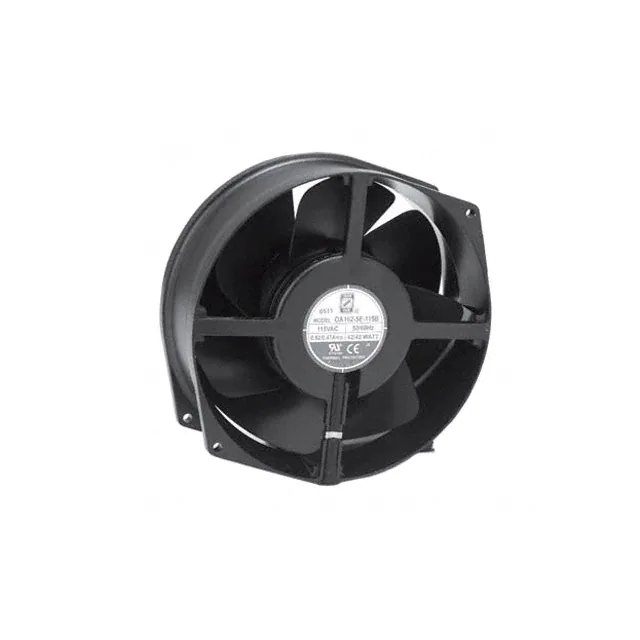

OA162-5E-230WBFAN AXIAL 172X55MM 230VAC WIRE Orion Fans |
186 |
|
数据手册 |
OA162 | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 53.0dB | 42.00W | 3250 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cURus, TUV, UR | 2.4 lbs (1.1 kg) |
|
|
OA162-5E-115WBFAN AXIAL 172X55MM 115VAC WIRE Orion Fans |
3,022 |
|
数据手册 |
OA162 | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 53.0dB | 42.00W | 3250 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cURus, TUV, UR | 2.4 lbs (1.1 kg) |
|

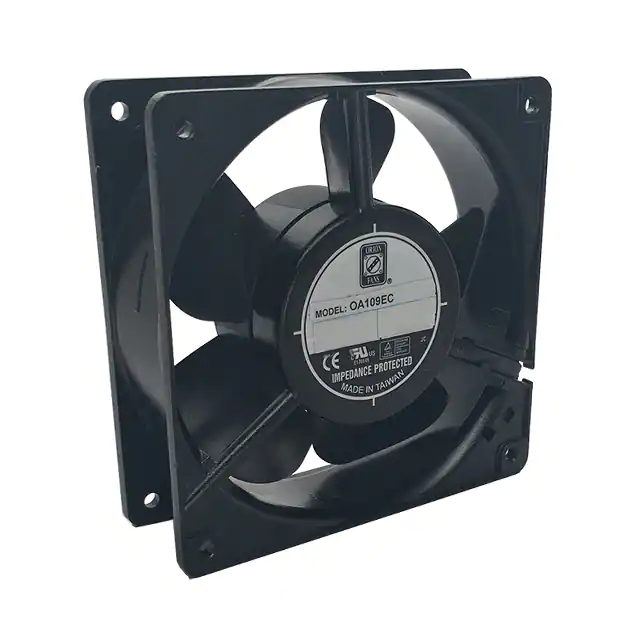

OA109EC-UR-1TBIP68AFAN 120X38MM 90-265VAC IP68 ATEX Orion Fans |
1,512 |
|
数据手册 |
OA109EC | Box | Active | 115/230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 43.0dB | 4.90W, 5.20W | 3200 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | ATEX, CE, cURus, UR | 0.64 lb (290.3 g) |
|
|
OA109EC-UR-1WBIP68AFAN 120X38MM 90-265VAC IP68 ATEX Orion Fans |
935 |
|
数据手册 |
OA109EC | Box | Active | 115/230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 43.0dB | 4.90W, 5.20W | 3200 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | ATEX, CE, cURus, UR | 0.64 lb (290.3 g) |
|

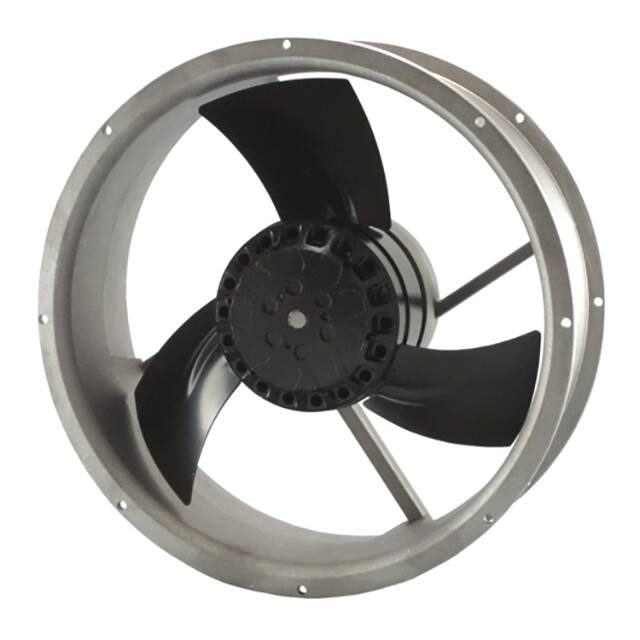

OA180APL-11-2TBFAN AC 180X65 115V BALL Orion Fans |
152 |
|
数据手册 |
OA180APL | Bulk | Active | 115VAC | Square - 180mm L x 180mm H | 65.00mm | 280.0 CFM (7.84m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 50.0W | 2200 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | CE, cURus, TUV, UR | - |
|

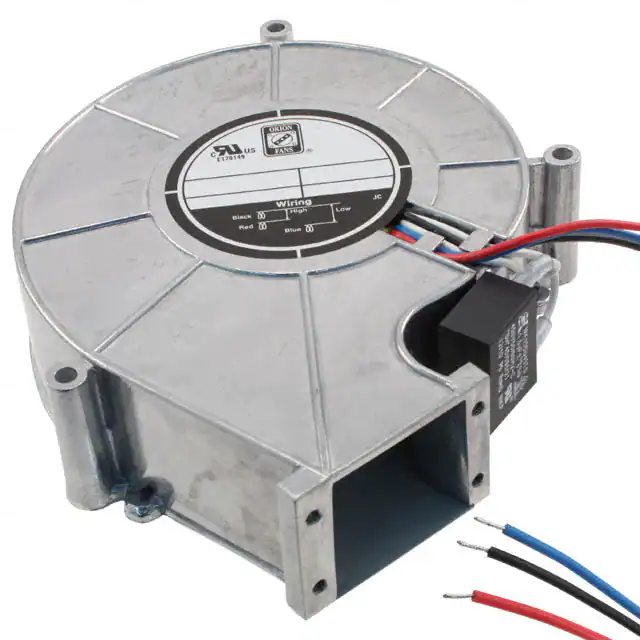

OAB908AN-22-1/2FAN BLOWER 183X70MM 220VAC WIRE Orion Fans |
3,383 |
|
数据手册 |
OAB908 | Box | Active | 230VAC | Rectangular/Rounded - 183mm L x 189.8mm H | 70.00mm | 75.0 ~ 100.0 CFM (2.10 ~ 2.80m³/min) | 1.40/1.80 in H2O (348.7/448.4 Pa) | Ball | Blower | Dual Speed, Thermal Overload Protector (TOP) | 55/68dB | 65.0W, 80.0W | 2400/3100 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus | - |
|
OA254AN-22-1WBXCFAN AXIAL 254X89MM 230VAC WIRE Orion Fans |
2,644 |
|
数据手册 |
OA254AN XC | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 850.0 CFM (23.80m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 69.0dB | 75.0W | 2700 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | CE, cURus, TUV, UR | 5.4 lbs (2.4 kg) |
|
OA254AP-22-1WBFAN AXIAL 254X89MM 230VAC WIRE Orion Fans |
1,398 |
|
数据手册 |
OA254 | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 547.0 CFM (15.32m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 55.0dB | 35.00W | 1650 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 4.2 lbs (1.9 kg) |
