交流风扇
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

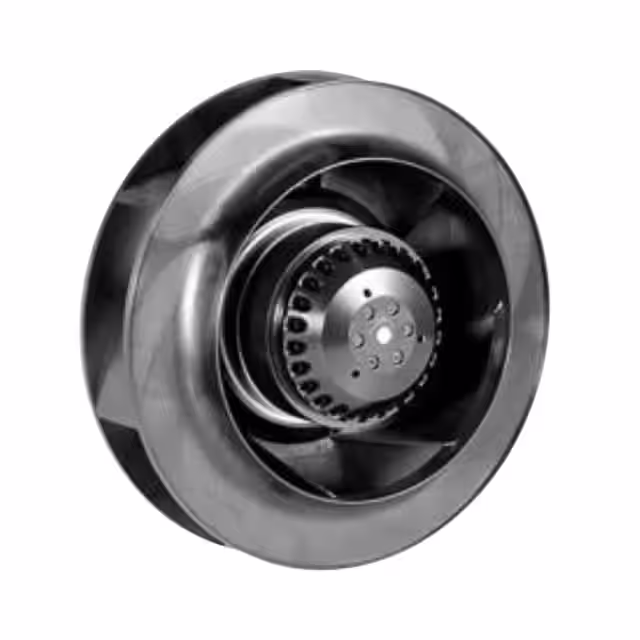

OAB22569-22-1WBFAN IMP MTRZD 225X69MM 230VAC W/ Orion Fans |
4,290 |
|
数据手册 |
OAB22569 | Box | Active | 230VAC | Round - 255mm Dia | 69.00mm | 550.0 CFM (15.40m³/min) | 2.305 in H2O (574.2 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor | 72.0dB | 125W | 2950 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 140°F (-40 ~ 60°C) | - | 5.1 lbs (2.3 kg) |
|

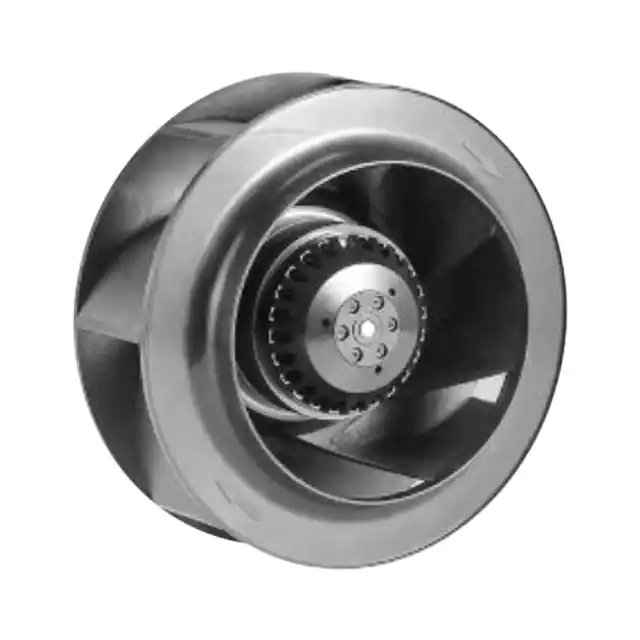

OAB22585-22-1WBFAN IMP MTRZD 225X85MM 230VAC W/ Orion Fans |
3,041 |
|
数据手册 |
OAB22585 | Box | Active | 230VAC | Round - 225mm Dia | 85.00mm | 680.0 CFM (19.04m³/min) | 2.500 in H2O (622.7 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor | 75.0dB | 135W | 3000 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 140°F (-40 ~ 60°C) | - | 5.1 lbs (2.3 kg) |
|
OA254LFGH111TXCFAN AXIAL 322.7X322.7MM 115VAC Orion Fans |
2,760 |
|
数据手册 |
OA254LFGH XC | Box | Active | 115VAC | Square - 322.7mm L x 322.7mm H | 142.4mm | 850.0 CFM (23.80m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 69.0dB | 75.0W | 2700 RPM | 2 Terminals or 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
OA254LFGH221TXCFAN AXIAL 322.7X322.7MM 230VAC Orion Fans |
1,481 |
|
数据手册 |
OA254LFGH XC | Box | Active | 230VAC | Square - 322.7mm L x 322.7mm H | 142.4mm | 850.0 CFM (23.80m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 69.0dB | 75.0W | 2700 RPM | 2 Terminals or 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
OA254LFGH111TFAN AXIAL 322.7X322.7MM 115VAC Orion Fans |
2,126 |
|
数据手册 |
OA254LFGH | Box | Active | 115VAC | Square - 322.7mm L x 322.7mm H | 142.4mm | 547.0 CFM (15.32m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 55.0dB | 33.00W | 1650 RPM | 2 Terminals or 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
OA254LFGH221TFAN AXIAL 322.7X322.7MM 230VAC Orion Fans |
1,188 |
|
数据手册 |
OA254LFGH | Box | Active | 230VAC | Square - 322.7mm L x 322.7mm H | 142.4mm | 547.0 CFM (15.32m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 55.0dB | 33.00W | 1650 RPM | 2 Terminals or 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
OAB318-22-1FAN IMP MTRZD 318X154 230V W/CAP Orion Fans |
1,586 |
|
数据手册 |
OAB318 | Box | Active | 230VAC | Round - 318mm Dia | 154.5mm | 1165.0 CFM (32.62m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 66.0dB | 155W | 1580 RPM | 4 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 8.8 lbs (4 kg) |
|
OA225LFGS221TFAN AXIAL 317X125.5MM 230VAC Orion Fans |
2,135 |
|
数据手册 |
OA225LFGS | Box | Active | 230VAC | Square - 317mm L x 317mm H | 125.5mm | 600.0 CFM (16.80m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 59.0dB | 80.0W | 2800 RPM | Terminal Block | - | 104 ~ 158°F (40 ~ 70°C) | cURus, TUV | - |
|
|
OA225LFGS111TFAN AXIAL 317X125.5MM 115VAC Orion Fans |
4,945 |
|
数据手册 |
OA225LFGS | Box | Active | 115VAC | Square - 317mm L x 317mm H | 125.5mm | 600.0 CFM (16.80m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 59.0dB | 72.0W | 2800 RPM | Terminal Block | - | 104 ~ 158°F (40 ~ 70°C) | cURus, TUV | - |
|
OA225LFG221TFAN AXIAL 320X141.5MM 230VAC Orion Fans |
4,406 |
|
数据手册 |
OA225LFG | Box | Active | 230VAC | Square - 320mm L x 320mm H | 141.5mm | 600.0 CFM (16.80m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 61.0dB | 80.0W | 2800 RPM | Terminal Block | - | -40 ~ 176°F (-40 ~ 80°C) | cURus, TUV | - |
