交流风扇
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA172AN-11-3WB115VAC 172X172X51MM Orion Fans |
2,272 |
|
数据手册 |
OA172AN | Bulk | Active | 115VAC | Round - 172mm Dia | 51.00mm | 135.0 CFM (3.78m³/min) | 0.430 in H2O (107.0 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 16.00W | 1800 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
OA172AP-22-3WB230VAC 172X172X51MM Orion Fans |
3,871 |
|
数据手册 |
OA172AP | Bulk | Active | 230VAC | Round - 172mm Dia | 51.00mm | 135.0 CFM (3.78m³/min) | 0.430 in H2O (107.0 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 16.00W | 1800 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
OA172AP-11-2WBFAN AXIAL 172X50.8MM 115VAC WIRE Orion Fans |
3,542 |
|
数据手册 |
OA172AP | Bulk | Active | 115VAC | Round - 172mm Dia | 51.00mm | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | - | 42.0dB | 20.00W | 2400 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | 2.7 lbs (1.2 kg) |
|

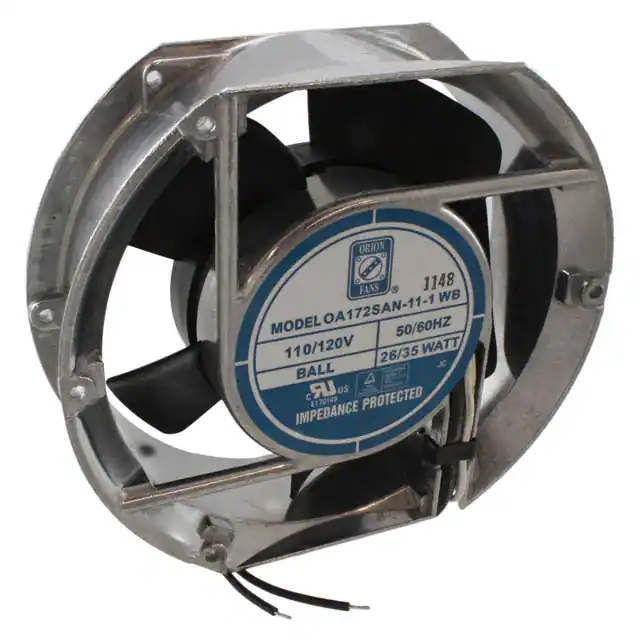

OA172SAN-11-2WBFAN AXIAL 172X50.8MM 115VAC WIRE Orion Fans |
1,094 |
|
数据手册 |
OA172SAN | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 42.0dB | 20.00W | 2400 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | cURus | - |
|
|
OA172SAPL-11-3WBIP55115VAC 150X172X38MM IP55 Orion Fans |
2,592 |
|
数据手册 |
OA172SAPL | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.50mm | 103.0 CFM (2.88m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 44.0dB(A) | 26.00W | 1700 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
|
OA172SAP-22-3WB230VAC 172X150X51MM Orion Fans |
4,193 |
|
数据手册 |
OA172SAP | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 115.0 CFM (3.22m³/min) | 0.430 in H2O (107.0 Pa) | Ball | Tubeaxial | Auto Restart, Capacitor, Thermal Overload Protector (TOP) | 33.2dB(A) | 16.00W | 1700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
OA172SAP-22-2WB230VAC 172X150X51MM Orion Fans |
1,928 |
|
数据手册 |
OA172SAP | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart, Capacitor, Thermal Overload Protector (TOP) | 39.8dB(A) | 20.00W | 2300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
OA162AP-11-2WB1855115VAC 172X55MM METAL Orion Fans |
3,785 |
|
数据手册 |
OA162AP | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150.5mm H | 55.00mm | 189.0 CFM (5.29m³/min) | 0.430 in H2O (107.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 43.2dB(A) | 20.00W | 2390 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, UR | - |
|
|
OA172SAPL-11-2TBIP55115VAC 150X172X38MM IP55 Orion Fans |
3,046 |
|
数据手册 |
OA172SAPL | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.50mm | 162.0 CFM (4.54m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 50.0dB(A) | 27.00W | 2750 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
|
OA172SAPL-22-1WBIP55230VAC 150X172X38MM IP55 Orion Fans |
2,167 |
|
数据手册 |
OA172SAPL | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.50mm | 228.0 CFM (6.38m³/min) | 0.870 in H2O (216.7 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 58.0dB(A) | 28.00W | 3400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
