紧急停止（E-Stop）开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 复位操作 | 电路 | 开关功能 | 特性 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 面板开孔尺寸 | 端接样式 | 防护等级 | 工作温度 | 照明电压（额定值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

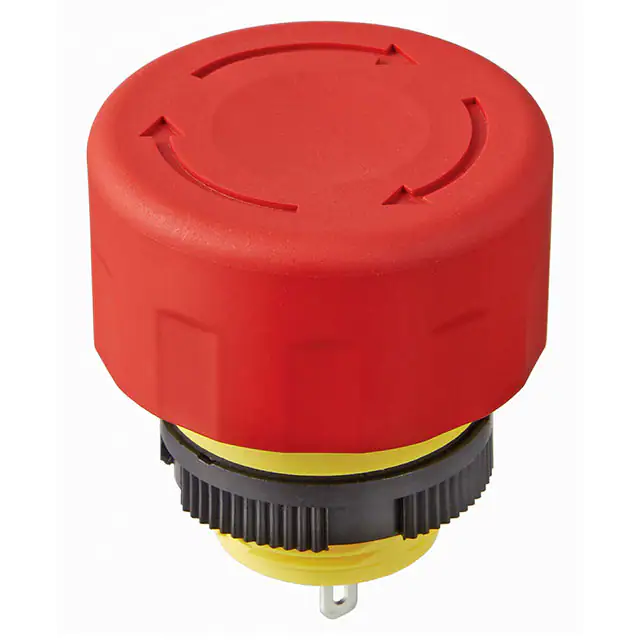

FF0116BBCAEA01SW E-STOP TWIST RESET 500MA 24V |
345 |
|
数据手册 |
FF01 | Box | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 500mA (DC) | - | 24 V | Circular - 16.20mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
YW1L-V4E01Q4RSW ESTOP PULL/TW RESET 10A 120V |
4,497 |
|
数据手册 |
YW | Bulk | Active | Panel Mount, Front | Pull or Twist | SPST-NC | On-Off | - | 10A (AC), 8A (DC) | 120 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | 24 VAC/DC |
|
XW1E-BV422M-RSW ESTOP PULL/TWST RESET 5A 125V |
2,377 |
|
数据手册 |
XW | Bulk | Active | Panel Mount, Front | Pull or Twist | 4PST-2NO/2NC | On-Off, Off-On | - | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
AYW411-RSWITCH ESTOP PULL RESET 10A 110V |
2,326 |
|
数据手册 |
TW | Bulk | Active | Panel Mount, Front | Pull | DPST-NO/NC | On-Off, Off-On | - | 10A (AC), 8A (DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 50°C | - |
|

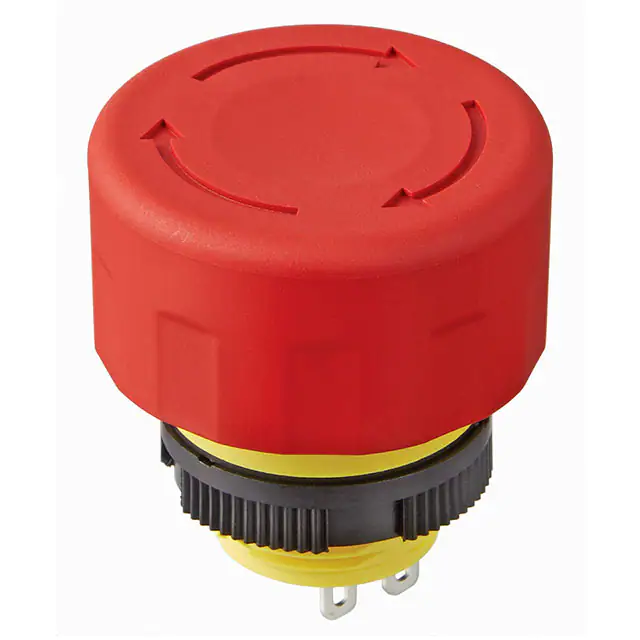

FF0126BBCAEA01SW E-STOP TWIST RESET 500MA 24V |
310 |
|
数据手册 |
FF01 | Box | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 500mA (DC) | - | 24 V | Circular - 16.20mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|

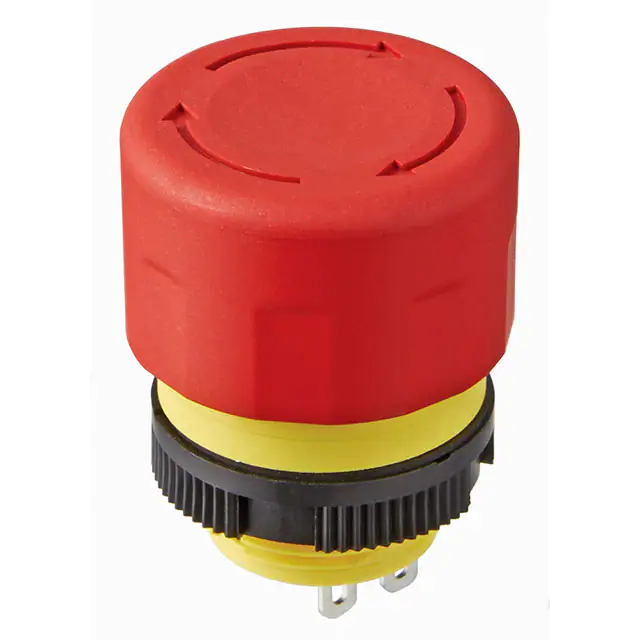

FF0126BACAEA01SW E-STOP TWIST RESET 500MA 24V |
204 |
|
数据手册 |
FF01 | Box | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 500mA (DC) | - | 24 V | Circular - 16.20mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
A22E-S-01SW E-STOP TWIST RESET 10A 110V |
1,780 |
|
数据手册 |
A22E | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
1.15.213.003/0000SWITCH E-STOP TWIST RESET 5A 35V |
2,970 |
|
数据手册 |
LUMOTAST 16 | Bulk | Active | Panel Mount, Front | Twist | 3PST-2NC/1NO | On-Off, Off-On | Status Indicator | 5A (AC), 2A (DC) | 35 V | 35 V | Circular - 16.20mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
61-6461.4057SWITCH E-STOP TWIST RESET |
3,778 |
|
数据手册 |
61 | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | - | - | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 55°C | - |
|
A22E-MP-01SWITCH ESTOP PULL RESET 10A 110V |
126 |
|
数据手册 |
A22E | Bulk | Active | Panel Mount, Front | Pull | SPST-NC | On-Off | - | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
SSA-EB1PL2-12SW ESTOP PULL/TWIST RESET 2A 30V |
4,953 |
|
数据手册 |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | 3PST-2NC/1NO | On-Off, Off-On | - | 2A (DC) | - | 30 V | Circular - 30.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|

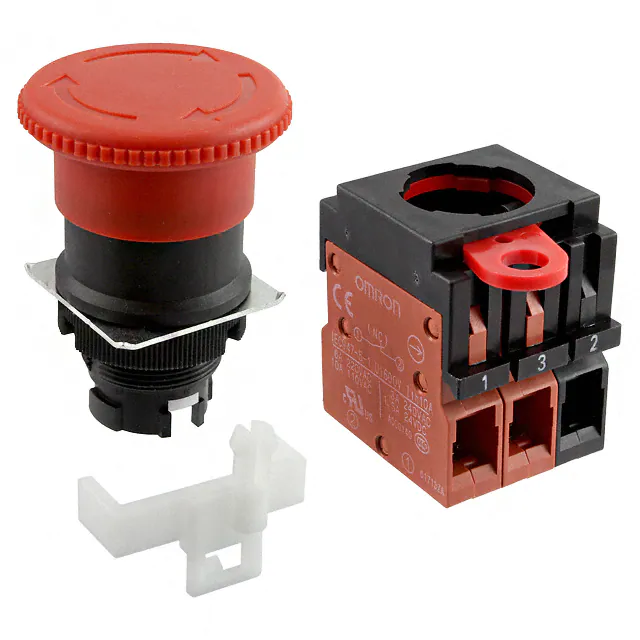

A22E-M-12SW E-STOP TWIST RESET 10A 110V |
529 |
|
数据手册 |
A22E | Bulk | Active | Panel Mount, Front | Twist | 3PST-2NC/1NO | On-Off, Off-On | - | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
A22EL-M-24A-01SW E-STOP TWIST RESET 10A 110V |
3,601 |
|
数据手册 |
A22E | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | Illuminated (Red) | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | 24 VAC/DC |
|
45-1C36.1920.000.102SWITCH ESTOP PULL RESET 10A 500V |
2,478 |
|
数据手册 |
45 | Bulk | Active | Panel Mount, Front | Pull | SPST-NC | On-Off | - | 10A (AC/DC) | 500 V | 500 V | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C | - |
|
87941-08SWITCH E-STOP PULL RESET 20A 14V |
320 |
|
数据手册 |
87940 | Bulk | Active | Panel Mount, Rear | Pull | DPST-NC | - | - | 20A (DC) | - | 14 V | - | Screw Terminal | Environment Sealed | -40°C ~ 100°C | - |
|
PBES16N40RSWITCH ESTOP TWIST RESET 3A 125V |
3,364 |
|
数据手册 |
PBES16 | Tray | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | Push Marking | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
84-5130.0040SWITCH ESTOP TWIST RESET 5A 250V |
112 |
|
数据手册 |
84 | Bulk | Active | Panel Mount, Front | Twist | DPST-NO/NC | On-Off, Off-On | - | 5A (AC/DC) | 250 V | 250 V | Circular - 22.30mm Dia | Cable Leads | IP65 - Dust Tight, Water Resistant | -25°C ~ 65°C | - |
|

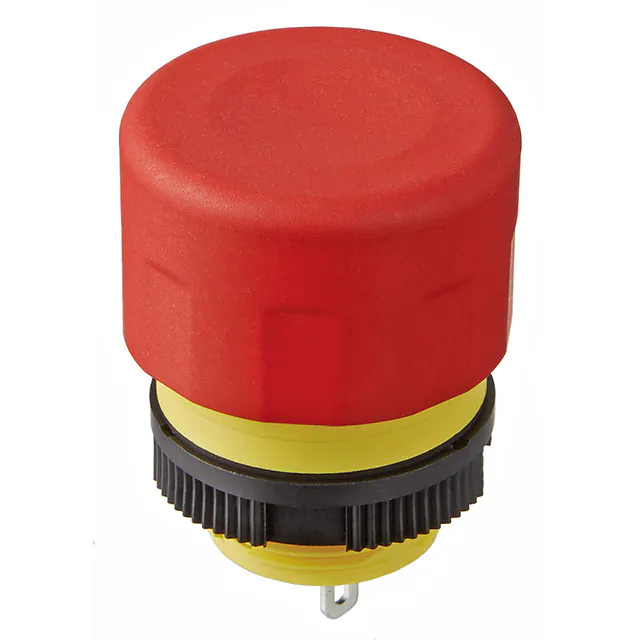

FF0116BACEEA01SW E-STOP TWIST RESET 500MA 24V |
2,699 |
|
数据手册 |
FF01 | Box | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 500mA (DC) | - | 24 V | Circular - 16.20mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
61-6461.4077SWITCH E-STOP TWIST RESET |
4,502 |
|
数据手册 |
61 | Bulk | Active | Panel Mount, Front | Twist | DPST-NO/NC | On-Off, Off-On | - | - | - | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 55°C | - |
|

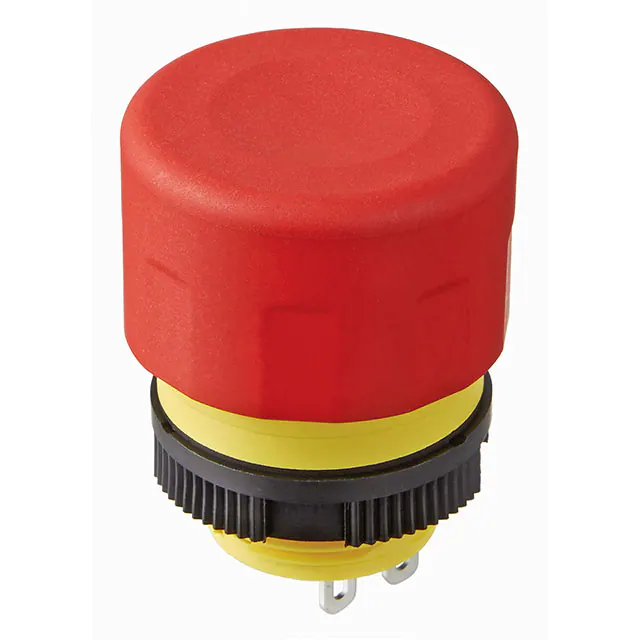

FF0126BACEEA01SW E-STOP TWIST RESET 500MA 24V |
4,766 |
|
数据手册 |
FF01 | Box | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 500mA (DC) | - | 24 V | Circular - 16.20mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
