电动执行器/气缸
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPCS-BS-32-150-8P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
1,050 |
|
数据手册 |
- | Bulk | Active | Linear Actuator | Stepper | 5.906" (150.00mm) | 52.91lbf (235.4N) | 33.72lbf (150.0N) | 8.27 in/s (210.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
ELGC-BS-KF-32-200-8PSPINDLE AXIS |
2,522 |
|
数据手册 |
- | Bulk | Active | Linear Axis (Without Motor) | - | 7.874" (200.00mm) | - | - | 23.62 in/s (600.0 mm/s) | - | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | - | 0°C ~ 50°C | IP40 | - |
|
ELGC-BS-KF-45-400-10PSPINDLE AXIS |
4,462 |
|
数据手册 |
- | Bulk | Active | Linear Axis (Without Motor) | - | 15.748" (400.00mm) | - | - | 23.62 in/s (600.0 mm/s) | - | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | - | 0°C ~ 50°C | IP40 | - |
|
EPCS-BS-45-50-10P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
1,742 |
|
数据手册 |
- | Bulk | Active | Linear Actuator | Stepper | 1.969" (50.00mm) | 88.19lbf (392.3N) | 101.16lbf (450.0N) | 9.06 in/s (230.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
EPCS-BS-45-100-3P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
2,324 |
|
数据手册 |
- | Bulk | Active | Linear Actuator | Stepper | 3.937" (100.00mm) | 132.28lbf (588.4N) | 101.16lbf (450.0N) | 2.91 in/s (74.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 1.50 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
EPCS-BS-45-150-10P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
1,397 |
|
数据手册 |
- | Bulk | Active | Linear Actuator | Stepper | 5.906" (150.00mm) | 88.19lbf (392.3N) | 101.16lbf (450.0N) | 9.06 in/s (230.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
ELGC-BS-KF-60-300-12PSPINDLE AXIS |
3,012 |
|
数据手册 |
- | Bulk | Active | Linear Axis (Without Motor) | - | 11.811" (300.00mm) | - | - | 31.50 in/s (800.0 mm/s) | - | - | Ball Screw | ±10µm | 15.00 m/s² | - | - | - | - | 0°C ~ 50°C | IP40 | - |
|
EPCS-BS-60-50-12P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
1,869 |
|
数据手册 |
- | Bulk | Active | Linear Actuator | Stepper | 1.969" (50.00mm) | 123.46lbf (549.2N) | 224.81lbf (1000.0N) | 8.66 in/s (220.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|
ELGC-BS-KF-60-400-12PSPINDLE AXIS |
3,312 |
|
数据手册 |
- | Bulk | Active | Linear Axis (Without Motor) | - | 15.748" (400.00mm) | - | - | 31.50 in/s (800.0 mm/s) | - | - | Ball Screw | ±10µm | 15.00 m/s² | - | - | - | - | 0°C ~ 50°C | IP40 | - |
|
EGSS-BS-KF-32-100-8P-ST-M-H1-PLK-AAMINI-SLIDE UNIT |
1,950 |
|
数据手册 |
Electric slide drive | Bulk | Active | Linear Axis | Stepper | 3.937" (100.00mm) | 13.48lbf (60.0N) | - | 7.48 in/s (190.0 mm/s) | 100% | 24VDC | Ball Screw | ±15µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|
EGSS-BS-KF-45-75-10P-ST-M-H1-PLK-AAMINI-SLIDE UNIT |
2,818 |
|
数据手册 |
Electric slide drive | Bulk | Active | Linear Axis | Stepper | 2.953" (75.00mm) | 26.97lbf (120.0N) | - | 9.84 in/s (250.0 mm/s) | 100% | 24VDC | Ball Screw | ±15µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|
EGSS-BS-KF-60-100-12P-ST-M-H1-PLK-AAMINI-SLIDE UNIT |
3,237 |
|
数据手册 |
Electric slide drive | Bulk | Active | Linear Axis | Stepper | 3.937" (100.00mm) | 56.20lbf (250.0N) | - | 9.45 in/s (240.0 mm/s) | 100% | 24VDC | Ball Screw | ±15µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|

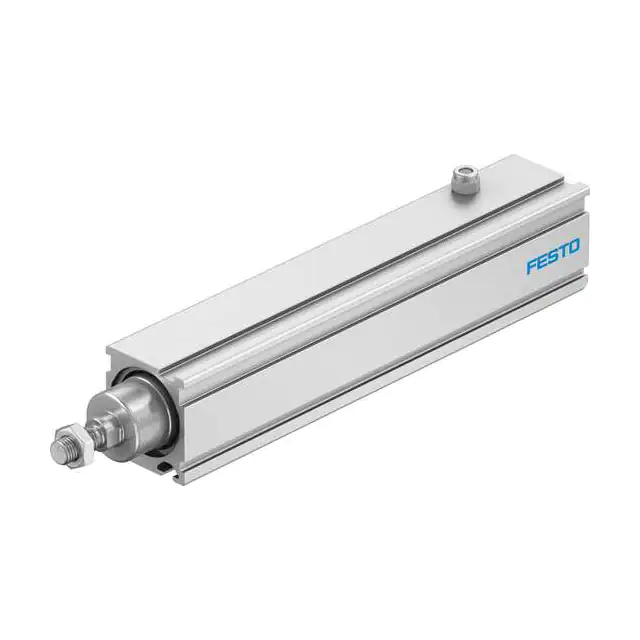

EPCC-BS-25-25-6P-AELECTRO-CYLINDER |
2,734 |
|
数据手册 |
- | Bulk | Active | Linear Actuator (Without Motor) | - | 0.984" (25.00mm) | - | - | 15.75 in/s (400.0 mm/s) | - | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 | - |
|
|
EPCC-BS-25-25-2P-AELECTRO-CYLINDER |
2,960 |
|
数据手册 |
- | Bulk | Active | Linear Actuator (Without Motor) | - | 0.984" (25.00mm) | - | - | 5.24 in/s (133.0 mm/s) | - | - | Ball Screw | ±20µm | 5.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 | - |
|
|
EPCC-BS-25-50-2P-AELECTRO-CYLINDER |
1,600 |
|
数据手册 |
- | Bulk | Active | Linear Actuator (Without Motor) | - | 1.969" (50.00mm) | - | - | 5.24 in/s (133.0 mm/s) | - | - | Ball Screw | ±20µm | 5.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 | - |
|
|
EPCC-BS-25-50-6P-AELECTRO-CYLINDER |
2,118 |
|
数据手册 |
- | Bulk | Active | Linear Actuator (Without Motor) | - | 1.969" (50.00mm) | - | - | 15.75 in/s (400.0 mm/s) | - | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 | - |
|
|
EPCC-BS-25-75-2P-AELECTRO-CYLINDER |
4,790 |
|
数据手册 |
- | Bulk | Active | Linear Actuator (Without Motor) | - | 2.953" (75.00mm) | - | - | 5.24 in/s (133.0 mm/s) | - | - | Ball Screw | ±20µm | 5.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 | - |
|
|
EPCC-BS-25-75-6P-AELECTRO-CYLINDER |
4,599 |
|
数据手册 |
- | Bulk | Active | Linear Actuator (Without Motor) | - | 2.953" (75.00mm) | - | - | 15.75 in/s (400.0 mm/s) | - | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 | - |
|
|
EPCC-BS-25-100-6P-AELECTRO-CYLINDER |
3,625 |
|
数据手册 |
- | Bulk | Active | Linear Actuator (Without Motor) | - | 3.937" (100.00mm) | - | - | 15.75 in/s (400.0 mm/s) | - | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 | - |
|
|
EPCC-BS-25-100-2P-AELECTRO-CYLINDER |
3,327 |
|
数据手册 |
- | Bulk | Active | Linear Actuator (Without Motor) | - | 3.937" (100.00mm) | - | - | 5.24 in/s (133.0 mm/s) | - | - | Ball Screw | ±20µm | 5.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 | - |
