电动执行器/气缸
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P8-75-50-12-PP8-P Micro Linear Actuator Actuonix Motion Devices Inc |
2,150 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Brushed | 2.953" (75.00mm) | 7.87lbf (35.0N) | 40.46 lbf (180N) | 1.18 in/s (30.0 mm/s) | 20% | 12VDC | Lead Screw | ±0.40mm | - | Integrated Sensor | 50 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P8-75-165-12-PP8-P Micro Linear Actuator Actuonix Motion Devices Inc |
2,874 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Brushed | 2.953" (75.00mm) | 24.73lbf (110.0N) | 40.46 lbf (180N) | 0.36 in/s (9.2 mm/s) | 20% | 12VDC | Lead Screw | ±0.40mm | - | Integrated Sensor | 165 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P8-100-252-12-PP8-P Micro Linear Actuator Actuonix Motion Devices Inc |
2,440 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 33.72lbf (150.0N) | 40.46 lbf (180N) | 0.24 in/s (6.2 mm/s) | 20% | 12VDC | Lead Screw | ±0.50mm | - | Integrated Sensor | 252 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P8-10-50-12-PP8-P Micro Linear Actuator Actuonix Motion Devices Inc |
2,590 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Brushed | 0.394" (10.00mm) | 7.87lbf (35.0N) | 40.46 lbf (180N) | 1.18 in/s (30.0 mm/s) | 20% | 12VDC | Lead Screw | ±0.10mm | - | Integrated Sensor | 50 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P8-75-252-12-PP8-P Micro Linear Actuator Actuonix Motion Devices Inc |
3,448 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Brushed | 2.953" (75.00mm) | 33.72lbf (150.0N) | 40.46 lbf (180N) | 0.24 in/s (6.2 mm/s) | 20% | 12VDC | Lead Screw | ±0.40mm | - | Integrated Sensor | 252 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P8-50-50-12-PP8-P Micro Linear Actuator Actuonix Motion Devices Inc |
2,417 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 7.87lbf (35.0N) | 40.46 lbf (180N) | 1.18 in/s (30.0 mm/s) | 20% | 12VDC | Lead Screw | ±0.30mm | - | Integrated Sensor | 50 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P8-100-165-12-PP8-P Micro Linear Actuator Actuonix Motion Devices Inc |
1,656 |
|
数据手册 |
P8 | Retail Package | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 24.73lbf (110.0N) | 40.46 lbf (180N) | 0.36 in/s (9.2 mm/s) | 20% | 12VDC | Lead Screw | ±0.50mm | - | Integrated Sensor | 165 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
ROB-18591ACTUONIX PQ12-100-6-R MICRO-ACTU Actuonix Motion Devices Inc |
2,634 |
|
数据手册 |
PQ12 | Bulk | Active | Linear Actuator | Brushed | 0.787" (20.00mm) | 8.99lbf (40.0N) | 11.24lbf (50.0N) | 0.39 in/s (10.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.10mm | - | Limit Switches | 100 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|

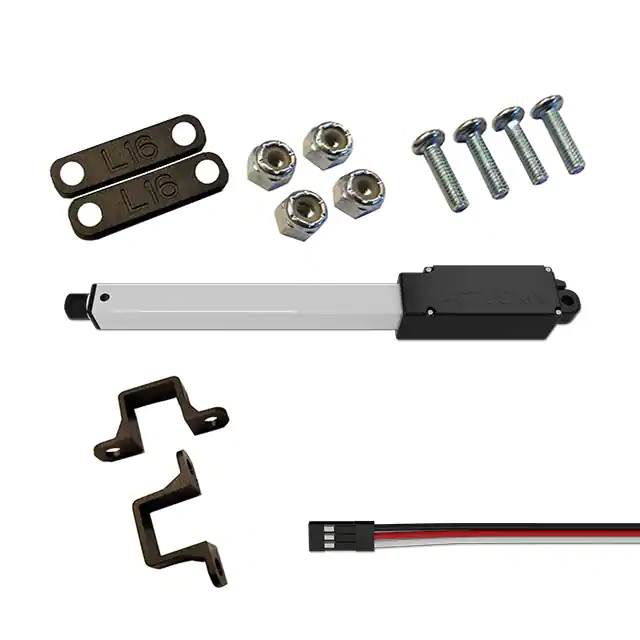

L16-100-35-6-RL16-R MINIATURE LINEAR SERVO Actuonix Motion Devices Inc |
2,810 |
|
数据手册 |
L16 | Bulk | Active | Linear Actuator | Brushed | 3.937" (100.00mm) | 11.24lbf (50.0N) | 56.20lbf (250.0N) | 1.26 in/s (32.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.40mm | - | RC Linear Servo | 35 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|

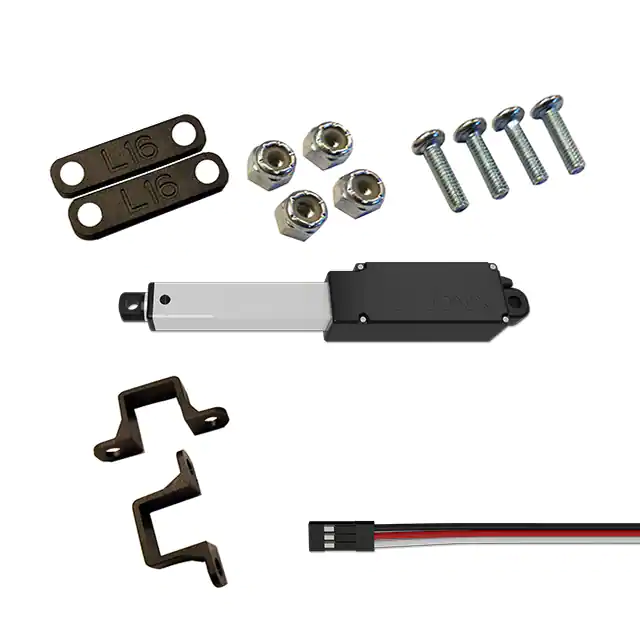

L16-50-35-6-RL16-R MINIATURE LINEAR SERVO Actuonix Motion Devices Inc |
2,237 |
|
数据手册 |
L16 | Bulk | Active | Linear Actuator | Brushed | 1.969" (50.00mm) | 11.24lbf (50.0N) | 56.20lbf (250.0N) | 1.26 in/s (32.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.30mm | - | RC Linear Servo | 35 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
