DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDS3-10S-1012-1-RA-508-DSWITCH ROTARY DIP BCD 0.15A 42V |
197 |
|
数据手册 |
RDS3-1012-RA | Tube | Active | BCD | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-10S-1012-1-RA-254-DSWITCH ROTARY DIP BCD 0.15A 42V |
190 |
|
数据手册 |
RDS3-1012-RA | Tube | Active | BCD | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
5-1571999-6SWITCH PIANO DIP SPST |
2,986 |
|
数据手册 |
ADPA | Tube | Active | SPST | 8 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
RDS6-10S-1011-2-RA-508-DSWITCH ROTARY DIP BCD 0.15A 42V |
200 |
|
数据手册 |
RDS6-1011-RA | Tube | Active | BCD | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-8S-1011-2-RA-508-DSWITCH ROTARY DIP SPST 0.15A 42V |
200 |
|
数据手册 |
RDS6-1011-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-16S-1011-2-RA-254-DSWITCH ROTARY DIP HEX 0.15A 42V |
200 |
|
数据手册 |
RDS6-1011-RA | Tube | Active | Hexadecimal | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-16S-1011-2-RA-508-DSWITCH ROTARY DIP HEX 0.15A 42V |
200 |
|
数据手册 |
RDS6-1011-RA | Tube | Active | Hexadecimal | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-16S-1012-2-RA-254-DSWITCH ROTARY DIP HEX 0.15A 42V |
200 |
|
数据手册 |
RDS3-1012-RA | Tube | Active | Hexadecimal | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-8S-1012-2-RA-254-DSWITCH ROTARY DIP SPST 0.15A 42V |
200 |
|
数据手册 |
RDS3-1012-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-10S-1011-2-RA-254-DSWITCH ROTARY DIP BCD 0.15A 42V |
200 |
|
数据手册 |
RDS6-1011-RA | Tube | Active | BCD | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-8S-1011-2-RA-254-DSWITCH ROTARY DIP SPST 0.15A 42V |
200 |
|
数据手册 |
RDS6-1011-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-8S-1012-2-RA-508-DSWITCH ROTARY DIP SPST 0.15A 42V |
200 |
|
数据手册 |
RDS3-1012-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-10S-1012-2-RA-254-DSWITCH ROTARY DIP BCD 0.15A 42V |
198 |
|
数据手册 |
RDS3-1012-RA | Tube | Active | BCD | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-16S-1012-2-RA-508-DSWITCH ROTARY DIP HEX 0.15A 42V |
196 |
|
数据手册 |
RDS3-1012-RA | Tube | Active | Hexadecimal | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-10S-1012-2-RA-508-DSWITCH ROTARY DIP BCD 0.15A 42V |
172 |
|
数据手册 |
RDS3-1012-RA | Tube | Active | BCD | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SBP 9104 TDUAL-IN-LINE SWITCH FOR SMT, PIA |
450 |
|
数据手册 |
SBP | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.256" (6.50mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
SBP 61004 TDUAL-IN-LINE SWITCH FOR SMT, PIA |
550 |
|
数据手册 |
SBP | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper | Gold | 0.224" (5.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DSS 201 NDUAL-IN-LINE SWITCH, BOX-TYPE, R |
300 |
|
数据手册 |
DSS | Tube | Active | SPST | 1 | 100mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.280" (7.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DHS 608DUAL-IN-LINE SWITCH, HALF-PITCH- |
1,963 |
|
数据手册 |
DHS | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.067" (1.70mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

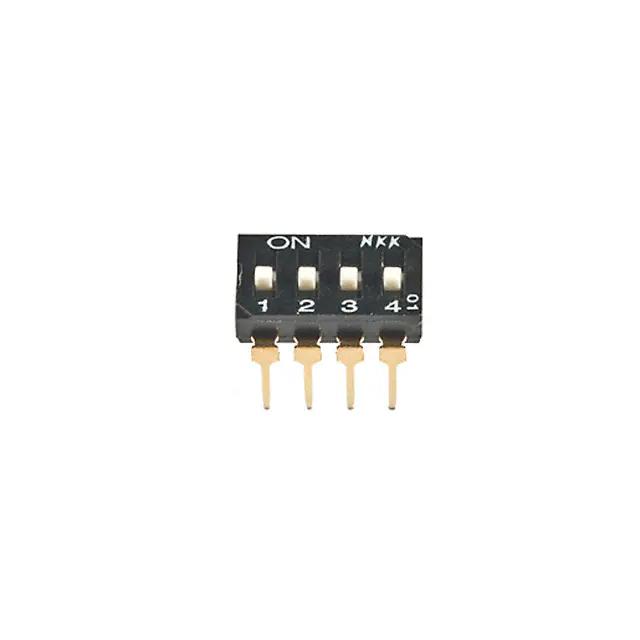

JS0104AP4-SSWITCH SLIDE DIP SPST 0.025A 24V |
122 |
|
数据手册 |
JS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.162" (4.11mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
