DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6S-9104-HSWITCH SLIDE DIP SPST 0.025A 24V |
127 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
EDSP06SGRNSTU04SWITCH PIANO DIP SPST 0.025A 24V |
256 |
|
数据手册 |
EDSP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
EDSP06SGRFSTU04SWITCH PIANO DIP SPST 0.025A 24V |
256 |
|
数据手册 |
EDSP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
EDSP10SGRNSTR04SWITCH PIANO DIP SPST 0.025A 24V |
1,400 |
|
数据手册 |
EDSP | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

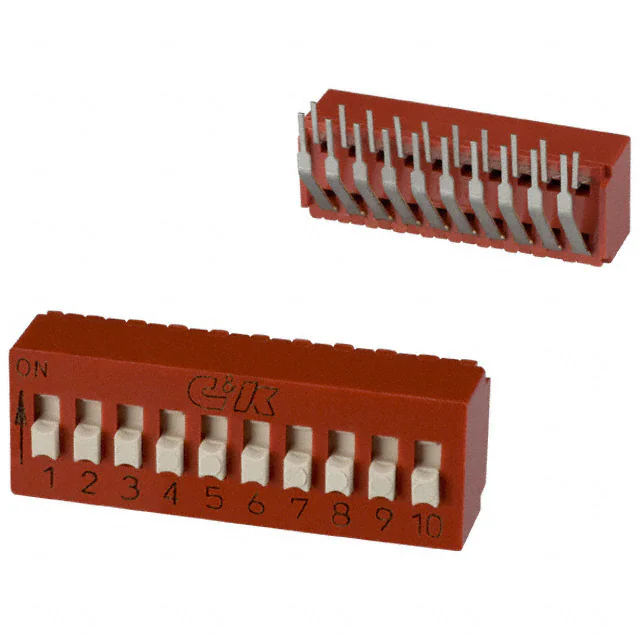

BD10AVSWITCH SLIDE DIP SPST 0.1A 5V |
490 |
|
数据手册 |
BD | Tube | Active | SPST | 10 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

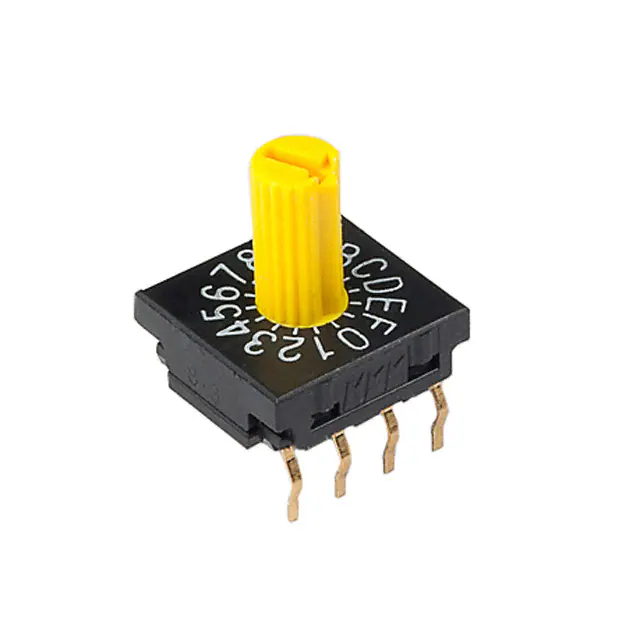

FR01KC16P-W-SSW ROTARY DIP HEX COMP 0.1A 5V |
250 |
|
数据手册 |
FR01 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
RDMAR16P1TSWITCH ROTARY DIP HEX 0.1A 42V |
111 |
|
数据手册 |
RDM | Tube | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
A6RS-101RSSWITCH ROTARY DIP BCD 0.025A 24V |
239 |
|
数据手册 |
A6RS | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.472" (12.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
A6HR-4104-PSWITCH PIANO DIP SPST 0.025A 24V |
300 |
|
数据手册 |
A6HR | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
SMR8016C-1SWITCH ROTARY DIP HEX 0.03A 15V |
145 |
|
数据手册 |
SMR | Tube | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
RTE1000R14SWITCH ROTARY DIP BCD 0.1A 30V |
10,737 |
|
数据手册 |
RTE | Bulk | Active | BCD | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | - | Through Hole, Reverse | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
EDSP08SGLFNTR04SWITCH PIANO DIP SPST 0.025A 24V |
1,709 |
|
数据手册 |
EDSP | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

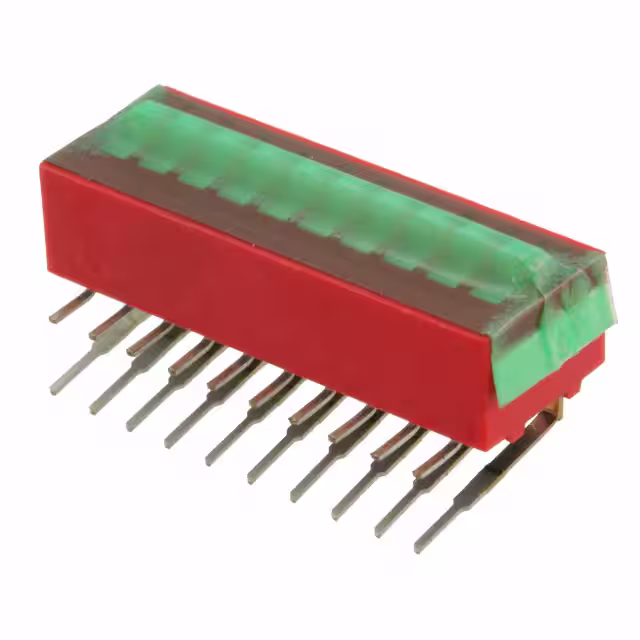

78B10SRATSWITCH SLIDE DIP SPST 0.15A 30V |
2,841 |
|
数据手册 |
78 | Bulk | Active | SPST | 10 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6K-102RSSWITCH ROTARY DIP BCD 0.025A 24V |
1,072 |
|
数据手册 |
A6K | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
EDSP10SGLFNTU04SWITCH PIANO DIP SPST 0.025A 24V |
252 |
|
数据手册 |
EDSP | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDSP10SGRFNTU04SWITCH PIANO DIP SPST 0.025A 24V |
240 |
|
数据手册 |
EDSP | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

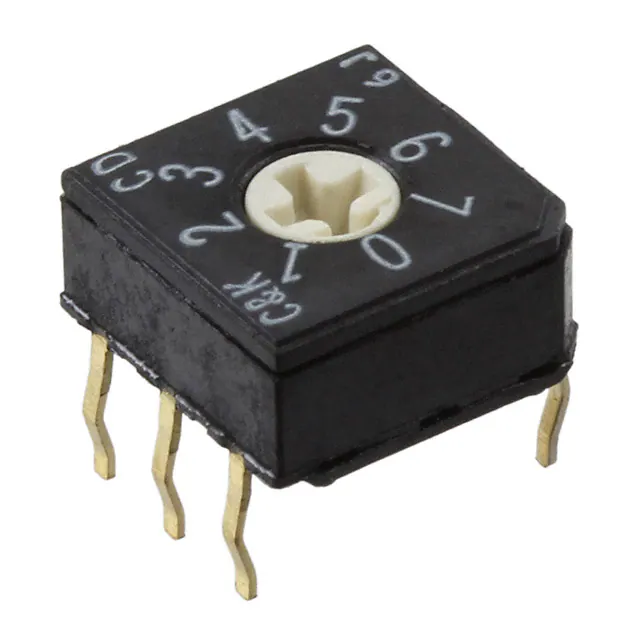

CD08RM0CBSW ROTARY DIP OCTAL 0.4VA 20V |
269 |
|
数据手册 |
CD | Tube | Active | Octal | 8 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|

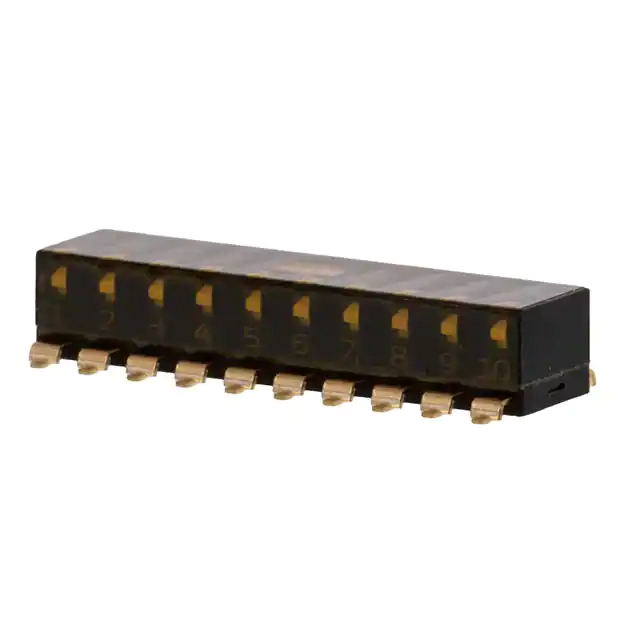

EDSP10SGRFSTU04SWITCH PIANO DIP SPST 0.025A 24V |
249 |
|
数据手册 |
EDSP | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
A6KS-162RSSWITCH ROTARY DIP HEX 0.025A 24V |
304 |
|
数据手册 |
A6KS | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
|
MRSSH4DC16SMGWTSW ROTARY DIP HEX COMP 0.4VA 20V |
5,385 |
|
数据手册 |
MRSS | Tube | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
