DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

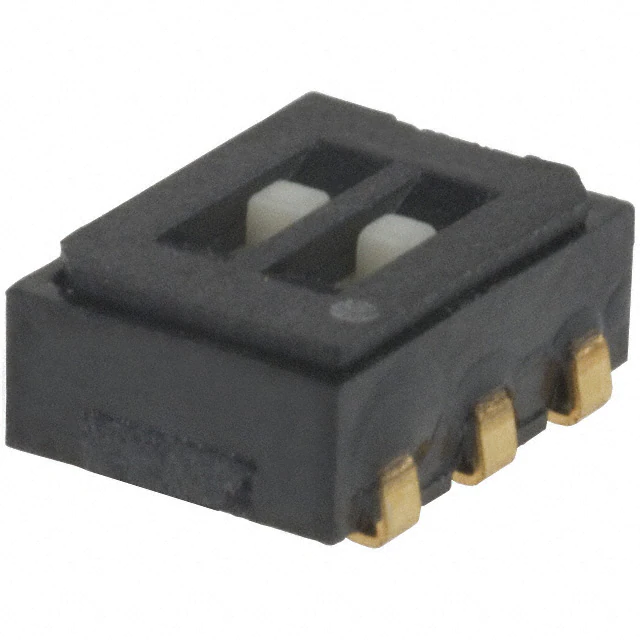

CAS-D20TASWITCH SLIDE SPDTX2 100MA 6V |
23,117 |
|
数据手册 |
CAS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | Tape Seal | -40°C ~ 85°C |
|
CAS-D20TBSWITCH SLIDE SPDTX2 100MA 6V |
6,807 |
|
数据手册 |
CAS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | Tape Seal | -40°C ~ 85°C |
|

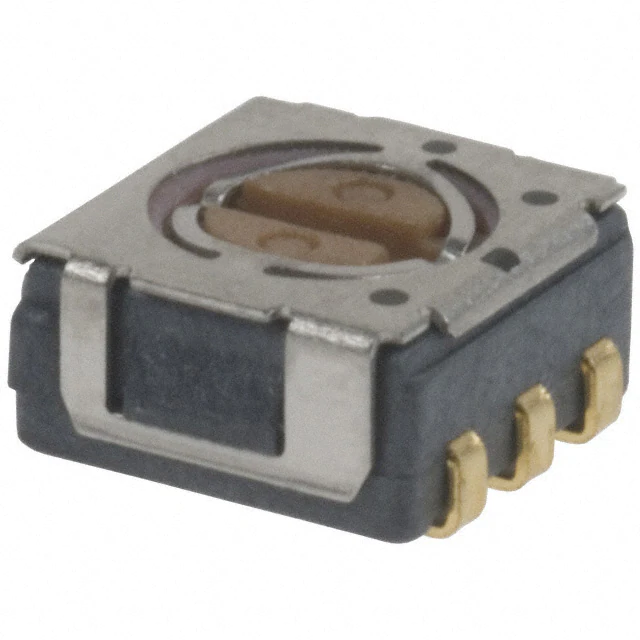

CS-4-14NTASWITCH ROTARY DIP SP4T 0.1A 16V |
1,762 |
|
数据手册 |
CS-4 | Tape & Reel (TR) | Active | SP4T | 4 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | J Lead | 0.051" (1.30mm) | Yes | - | -25°C ~ 70°C |
|
2-1825058-5SWITCH SLIDE DIP SPST 0.1A 24V |
2,826 |
|
数据手册 |
ADE | Tube | Active | SPST | 10 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
S-1031ASW ROTARY DIP HEX COMP 0.1A 5V |
8,844 |
|
数据手册 |
S-1000A | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
A6D-8100SWITCH SLIDE DIP SPST 0.03A 30V |
400 |
|
数据手册 |
A6D | Tube | Active | SPST | 8 | 30mA | 30VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|

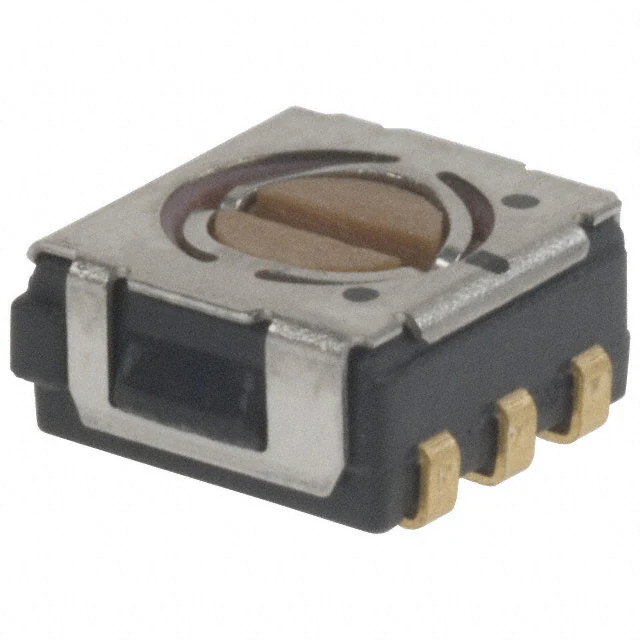

CS-4-22YTASWITCH ROTARY DIP DPDT 0.1A 16V |
6,207 |
|
数据手册 |
CS-4 | Tape & Reel (TR) | Active | DPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | J Lead | 0.051" (1.30mm) | Yes | - | -25°C ~ 70°C |
|
TDD01H0SB1RSWITCH SLIDE DIP SPDT 0.025A 24V |
28,422 |
|
数据手册 |
TDD | Tape & Reel (TR) | Active | SPDT | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | - | Yes | Tape Seal | -30°C ~ 85°C |
|

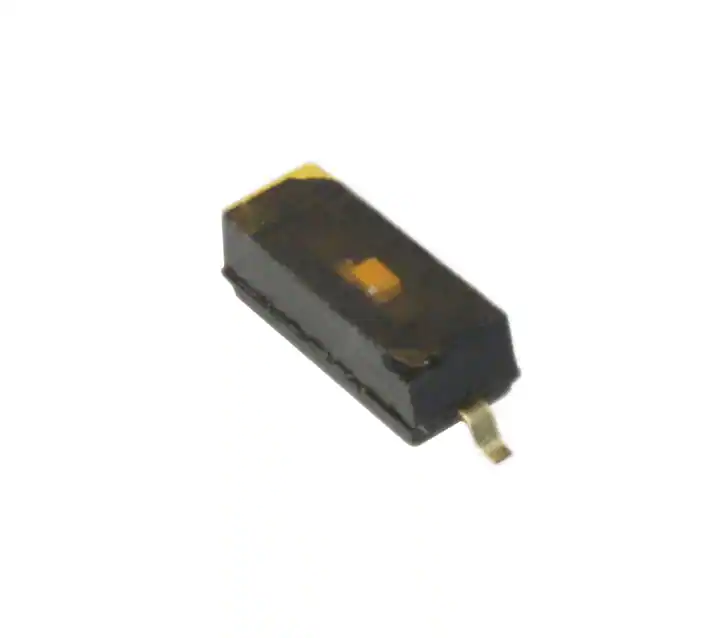

TDA01H0SB1RSWITCH SLIDE DIP SPST 0.025A 24V |
13,689 |
|
数据手册 |
TDA | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
A6H-4101SWITCH SLIDE DIP SPST 0.025A 24V |
21,607 |
|
数据手册 |
A6H | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -20°C ~ 70°C |
|
1825140-2SWITCH SLIDE DIP SPST 0.025A 24V |
16,902 |
|
数据手册 |
MGDH | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.067" (1.70mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Tape Seal | -30°C ~ 85°C |
|
BD08SWITCH SLIDE DIP SPST 0.1A 5V |
9,902 |
|
数据手册 |
BD | Tube | Active | SPST | 8 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

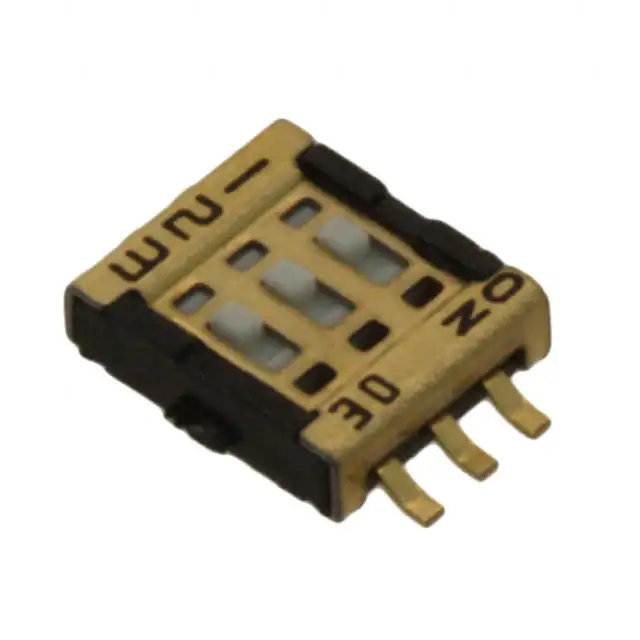

CVS-03TBSWITCH SLIDE DIP SPST 0.1A 6V |
52,536 |
|
数据手册 |
CVS | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|

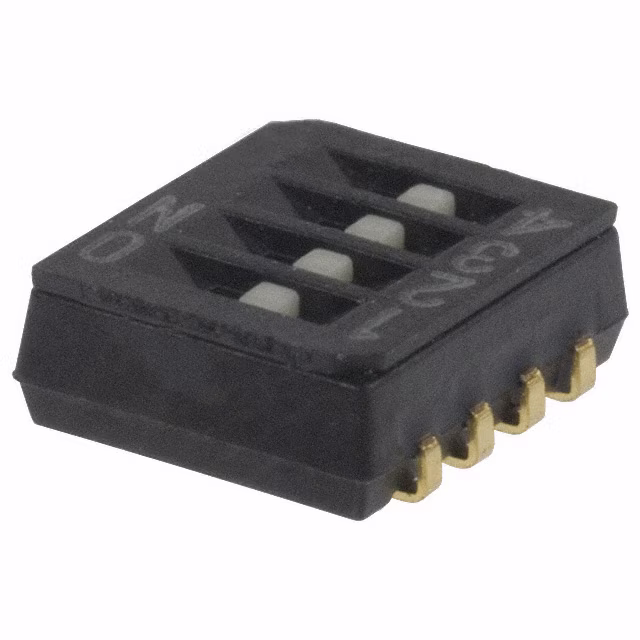

CHS-04TASWITCH SLIDE DIP SPST 0.1A 6V |
36,692 |
|
数据手册 |
CHS | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
TDA04H0SB1SWITCH SLIDE DIP SPST 0.025A 24V |
17,029 |
|
数据手册 |
TDA | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
CHS-04TBSWITCH SLIDE DIP SPST 0.1A 6V |
6,614 |
|
数据手册 |
CHS | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
RDS-16S-1055-SMT-TRSWITCH ROTARY DIP HEX 0.025A 24V |
9,957 |
|
数据手册 |
RDS-1055-SMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.217" (5.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CVS-01TBSWITCH SLIDE DIP SPST 0.1A 6V |
3,550 |
|
数据手册 |
CVS | Tape & Reel (TR) | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|
SDA08H1SBDRSWITCH SLIDE DIP SPST 0.025A 24V |
2,669 |
|
数据手册 |
SDA | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

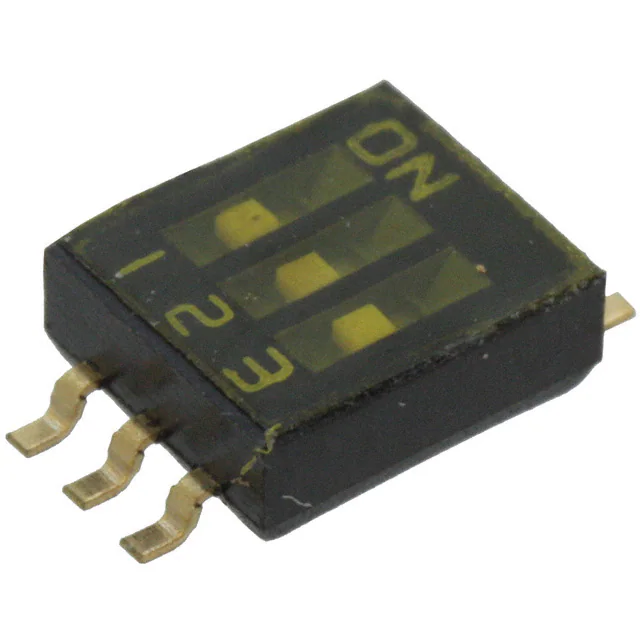

416131160803SWITCH SLIDE DIP SPST 0.025A 24V |
4,143 |
|
数据手册 |
WS-DISV | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
