DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDS05SGRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
2,920 |
|
数据手册 |
EDS | Tape & Reel (TR) | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
RDS-10S-1045-DSWITCH ROTARY DIP BCD 0.025A 24V |
113 |
|
数据手册 |
RDS-1045 | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
EDS02SNRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
334 |
|
数据手册 |
EDS | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS06SGNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
3,336 |
|
数据手册 |
EDS | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.150" (3.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS06SGRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,800 |
|
数据手册 |
EDS | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
RTE1002N14SWITCH ROTARY DIP BCD 0.1A 30V |
1,850 |
|
数据手册 |
RTE | Tube | Active | BCD | 10 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
EDS10SNRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
700 |
|
数据手册 |
EDS | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
5161390-3SWITCH SLIDE DIP SPST 0.025A 50V |
2,824 |
|
数据手册 |
DIP | Box | Active | SPST | 3 | 25mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
EDS06SNRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,656 |
|
数据手册 |
EDS | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
EDS06SGRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,350 |
|
数据手册 |
EDS | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
EDS02SGRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
373 |
|
数据手册 |
EDS | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
EDSP02SGLNNTU04SWITCH PIANO DIP SPST 0.025A 24V |
569 |
|
数据手册 |
EDSP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAS2110ETNOMARKING-HTSWITCH SLIDE DIP SPST 0.025A 24V |
1,003 |
|
数据手册 |
KAS | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
EDSP02SGLFNTU04SWITCH PIANO DIP SPST 0.025A 24V |
758 |
|
数据手册 |
EDSP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

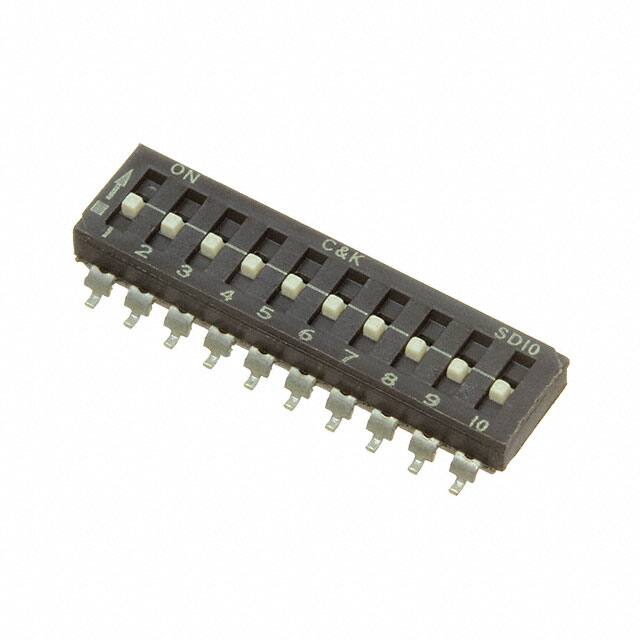

SD10H1SBDSWITCH SLIDE DIP SPST 0.1A 25V |
132 |
|
数据手册 |
SD | Tube | Active | SPST | 10 | 100mA | 25VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
EDS04SNRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
984 |
|
数据手册 |
EDS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
EDSP02SGRNSTU04SWITCH PIANO DIP SPST 0.025A 24V |
766 |
|
数据手册 |
EDSP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
RD10RA8RVATSW ROTARY DIP OCTAL 0.15A 50V |
408 |
|
数据手册 |
RD10 | Tube | Active | Octal | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
EDS04SNNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
472 |
|
数据手册 |
EDS | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
SDA06H0BSWITCH SLIDE DIP SPST 0.025A 24V |
6,638 |
|
数据手册 |
SDA | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
