DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
76GB06STSWITCH ROCKER DIP SPST 0.15A 30V |
4,695 |
|
数据手册 |
76 | Tube | Obsolete | SPST | 6 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78HF03GWRTSWITCH SLIDE DIP DPST 0.15A 30V |
1,445 |
|
数据手册 |
78H | Tape & Reel (TR) | Active | DPST | 3 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
97R04RTSWITCH SLIDE DIP SPST 0.025A 24V |
4,142 |
|
数据手册 |
97 | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

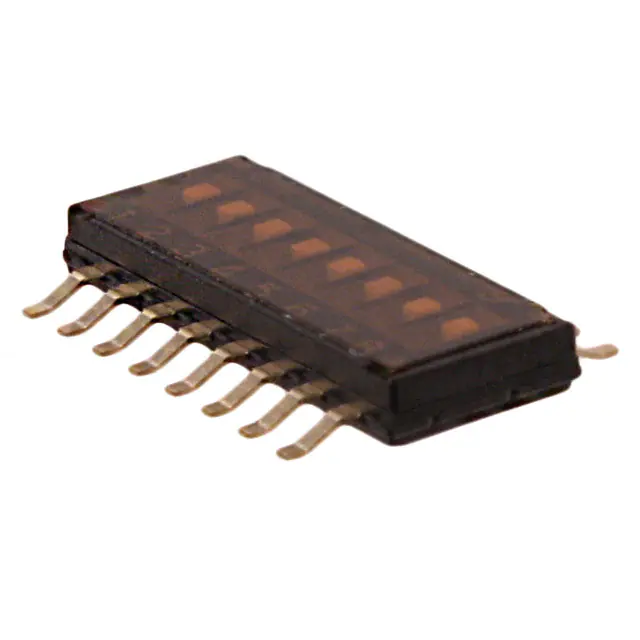

97R08RTSWITCH SLIDE DIP SPST 0.025A 24V |
3,376 |
|
数据手册 |
97 | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
FR01AC10HSW ROTARY DIP BCD COMP 0.1A 5V |
3,454 |
|
数据手册 |
FR01 | Bulk | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

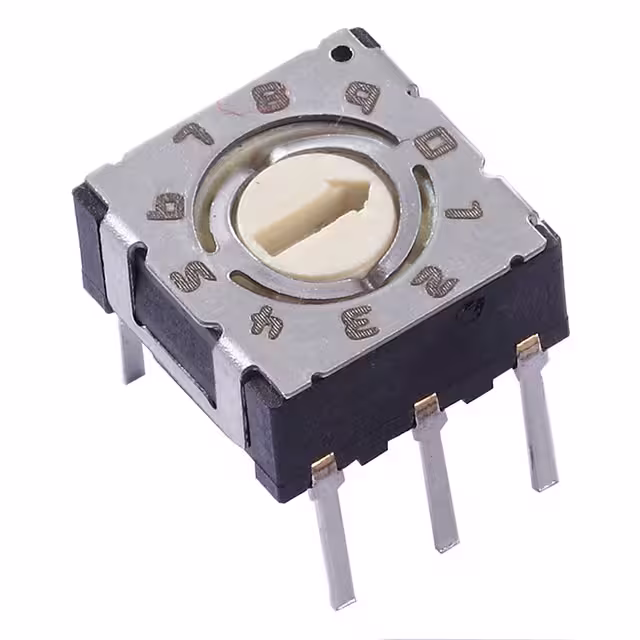

220ADA10SWITCH ROTARY DIP BCD 0.1A 50V |
2,142 |
|
数据手册 |
220 | Tube | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

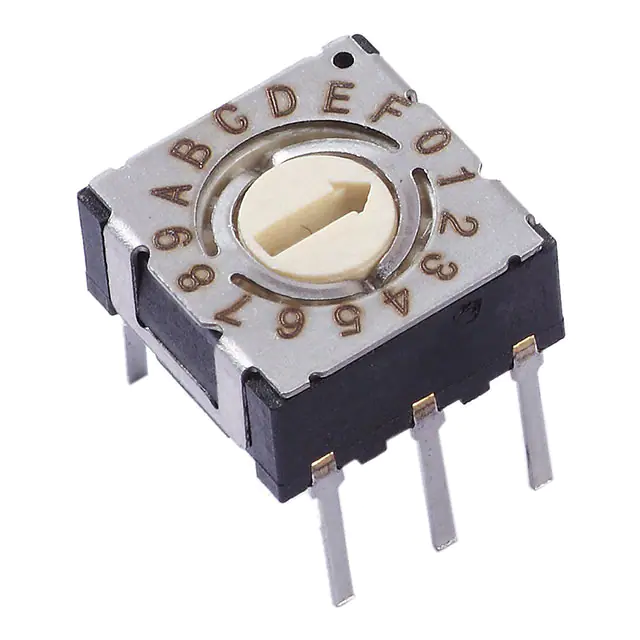

220ADA16SWITCH ROTARY DIP HEX 0.1A 50V |
3,348 |
|
数据手册 |
220 | Tube | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

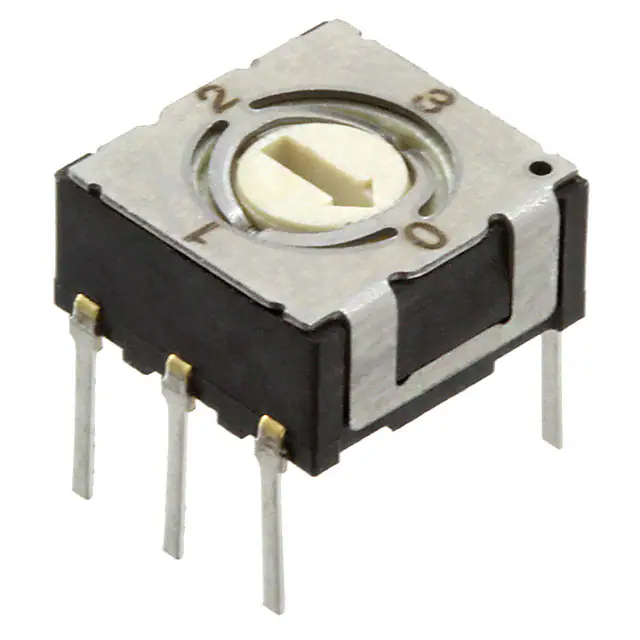

220ADA04SWITCH ROTARY DIP SP4T 0.1A 50V |
1,316 |
|
数据手册 |
220 | Tube | Discontinued at Digi-Key | SP4T | 4 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418217170904SWITCH SLIDE DIP SPST 0.025A 24V |
3,536 |
|
数据手册 |
WS-DITU | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

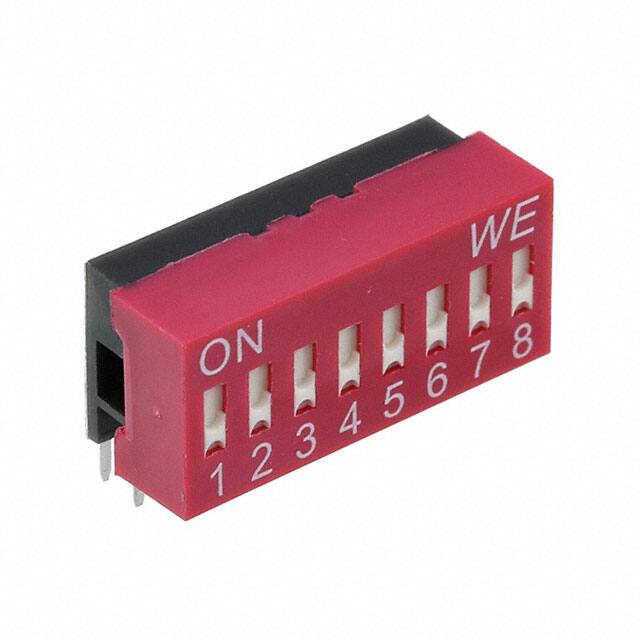

418217170908SWITCH SLIDE DIP SPST 0.025A 24V |
4,732 |
|
数据手册 |
WS-DITU | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

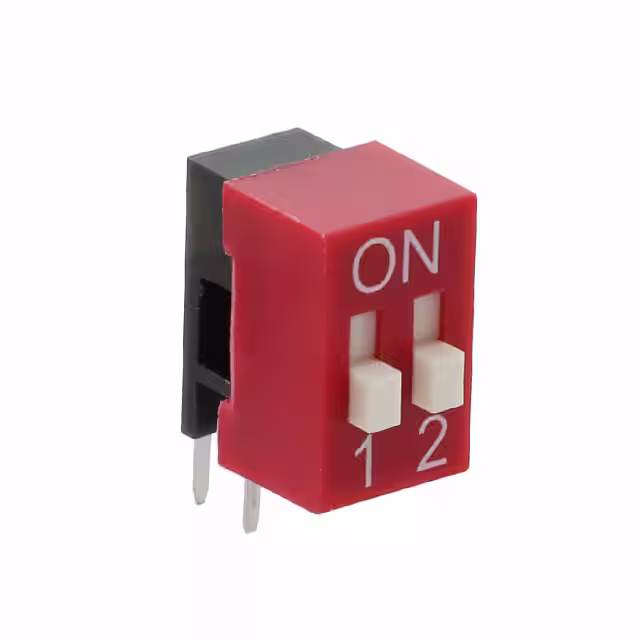

418217270902SWITCH SLIDE DIP SPST 0.025A 24V |
4,055 |
|
数据手册 |
WS-DITU | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418217270904SWITCH SLIDE DIP SPST 0.025A 24V |
1,076 |
|
数据手册 |
WS-DITU | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
418217270908SWITCH SLIDE DIP SPST 0.025A 24V |
4,218 |
|
数据手册 |
WS-DITU | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

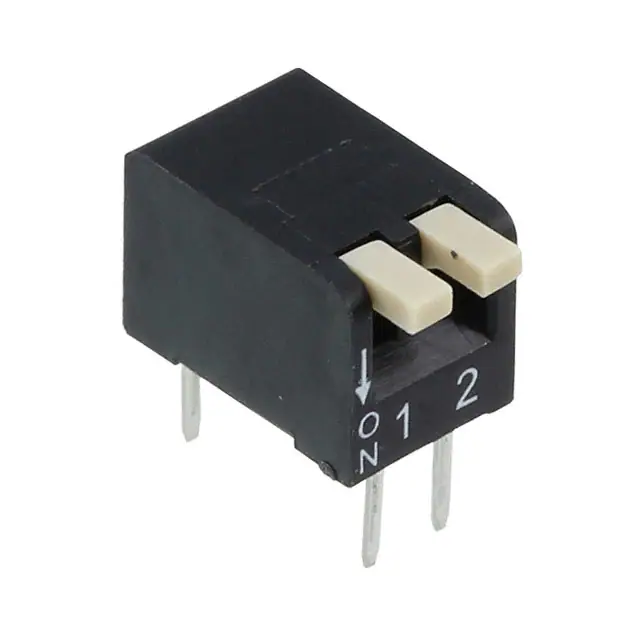

418317270902SWITCH PIANO DIP SPST 0.025A 24V |
4,861 |
|
数据手册 |
WS-DITU | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

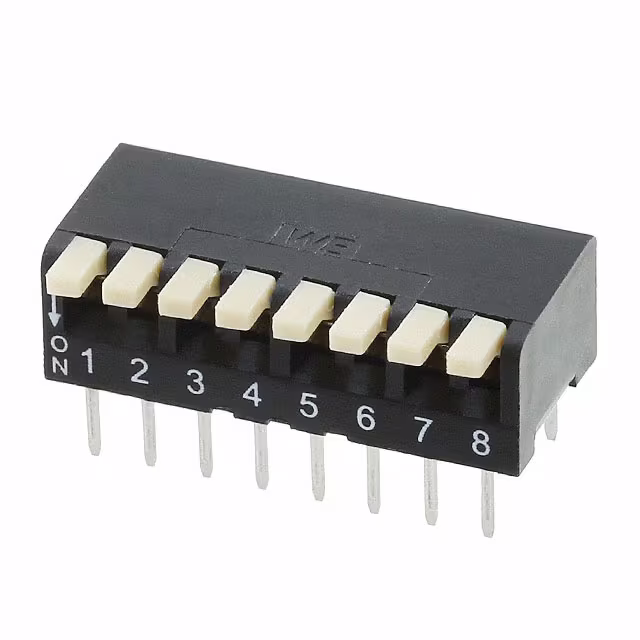

418317270908SWITCH PIANO DIP SPST 0.025A 24V |
2,653 |
|
数据手册 |
WS-DITU | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
206-4STPSWITCH SLIDE DIP SPST 0.05A 24V |
1,680 |
|
数据手册 |
206 | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
.jpg)
|
219-4LPSTPSWITCH SLIDE DIP SPST 0.1A 20V |
3,442 |
|
数据手册 |
219 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

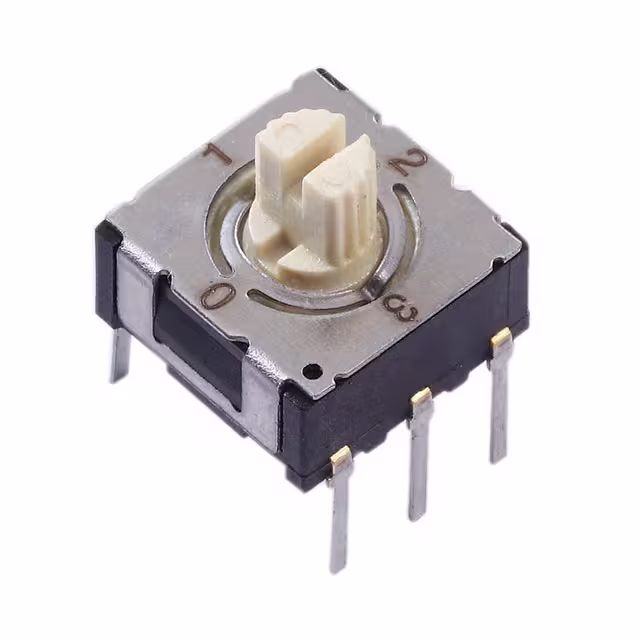

220ADB04SWITCH ROTARY DIP SP4T 0.1A 50V |
3,172 |
|
数据手册 |
220 | Tube | Discontinued at Digi-Key | SP4T | 4 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.262" (6.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

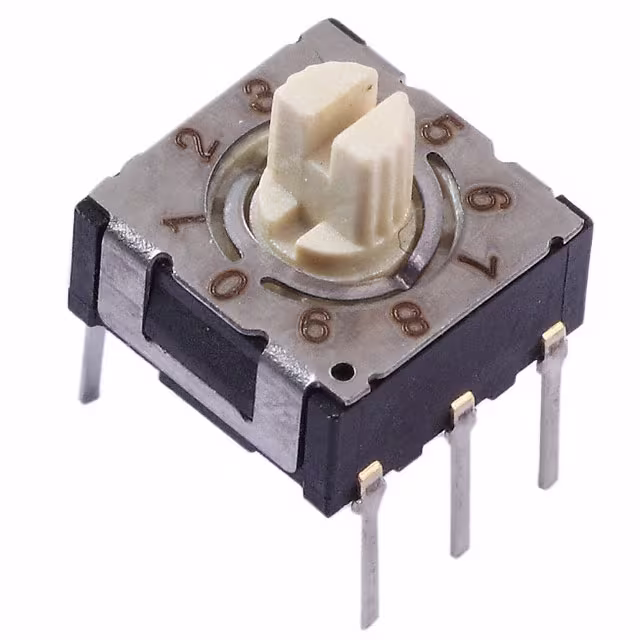

220ADB10SWITCH ROTARY DIP BCD 0.1A 50V |
4,532 |
|
数据手册 |
220 | Tube | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.262" (6.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

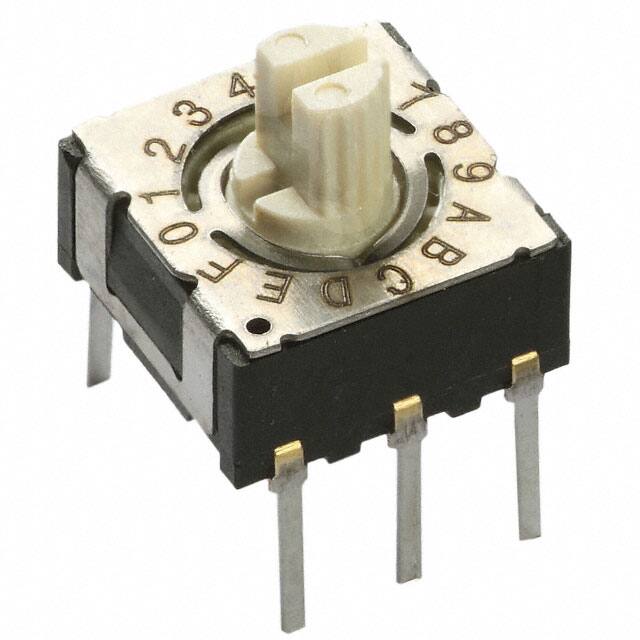

220ADB16SWITCH ROTARY DIP HEX 0.1A 50V |
4,145 |
|
数据手册 |
220 | Tube | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.262" (6.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
