DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRAR16PSWITCH ROTARY DIP HEX 0.1A 5V |
1,868 |
|
数据手册 |
DR | Tray | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
|
DRKC10HSW ROTARY DIP BCD COMP 0.1A 5V |
1,811 |
|
数据手册 |
DR | Tray | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
|
DRKR10HSWITCH ROTARY DIP BCD 0.1A 5V |
2,455 |
|
数据手册 |
DR | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -25°C ~ 75°C |
|
RTE0201N04SWITCH ROTARY DIP SPDT 0.1A 30V |
1,840 |
|
数据手册 |
RTE | Tube | Obsolete | SPDT | 2 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE0300N04SWITCH ROTARY DIP SP3T 0.1A 30V |
4,838 |
|
数据手册 |
RTE | Tube | Obsolete | SP3T | 3 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE0301N04SWITCH ROTARY DIP SP3T 0.1A 30V |
1,667 |
|
数据手册 |
RTE | Tube | Obsolete | SP3T | 3 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
SP08BSWITCH SLIDE DIP SPST 0.01A 20V |
4,824 |
|
数据手册 |
SP | Tube | Obsolete | SPST | 8 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP06ABSWITCH SLIDE DIP SPST 0.01A 20V |
2,119 |
|
数据手册 |
SP | Tube | Obsolete | SPST | 6 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

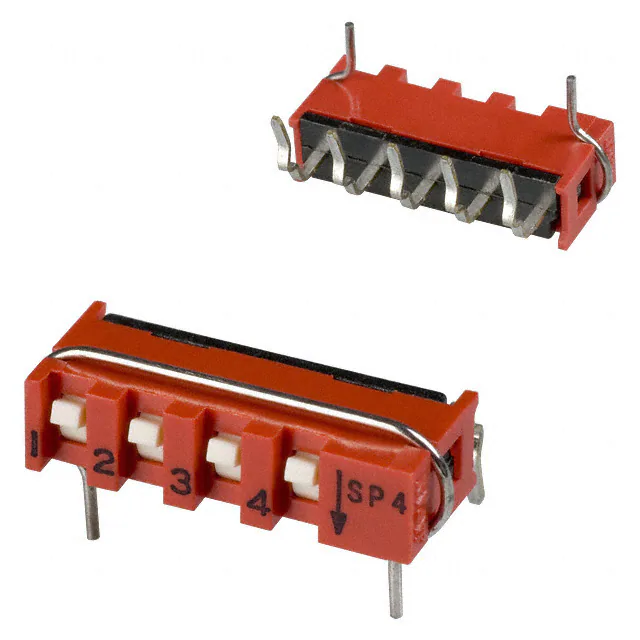

SP04ABSWITCH SLIDE DIP SPST 0.01A 20V |
3,122 |
|
数据手册 |
SP | Tube | Obsolete | SPST | 4 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP02ABSWITCH SLIDE DIP SPST 0.01A 20V |
4,256 |
|
数据手册 |
SP | Tube | Obsolete | SPST | 2 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP10BSWITCH SLIDE DIP SPST 0.01A 20V |
2,913 |
|
数据手册 |
SP | Tube | Obsolete | SPST | 10 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP06BSWITCH SLIDE DIP SPST 0.01A 20V |
4,799 |
|
数据手册 |
SP | Tube | Obsolete | SPST | 6 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP08ABSWITCH SLIDE DIP SPST 0.01A 20V |
2,254 |
|
数据手册 |
SP | Tube | Obsolete | SPST | 8 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP02BSWITCH SLIDE DIP SPST 0.01A 20V |
3,876 |
|
数据手册 |
SP | Tube | Obsolete | SPST | 2 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP10ABSWITCH SLIDE DIP SPST 0.01A 20V |
3,618 |
|
数据手册 |
SP | Tube | Obsolete | SPST | 10 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
SP04BSWITCH SLIDE DIP SPST 0.01A 20V |
1,462 |
|
数据手册 |
SP | Tube | Obsolete | SPST | 4 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.196" (4.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
1393546-8SWITCH DIP SPST |
3,459 |
|
数据手册 |
DIP-FIX | Tray | Obsolete | SPST | 8 | - | - | - | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
2-1393546-0SWITCH DIP SPDT |
3,907 |
|
数据手册 |
DIP-FIX | Tray | Obsolete | SPDT | 12 | - | - | - | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
|
2-435166-9SWITCH ROCKER DIP SPST |
4,157 |
|
数据手册 |
7000 | Tube | Obsolete | SPST | 2 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
3-435668-2SWITCH ROCKER DIP SPST 0.06A 5V |
4,067 |
|
数据手册 |
7100 | Tube | Obsolete | SPST | 12 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
