DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6S-7101SWITCH SLIDE DIP SPST 0.025A 24V |
4,704 |
|
数据手册 |
A6S | Bag | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6S-8101SWITCH SLIDE DIP SPST 0.025A 24V |
4,419 |
|
数据手册 |
A6S | Bag | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-9101SWITCH SLIDE DIP SPST 0.025A 24V |
2,982 |
|
数据手册 |
A6S | Bag | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
BPA08RKSWITCH PIANO DIP SPST 0.1A 5V |
4,656 |
|
数据手册 |
BPA | Bag | Obsolete | SPST | 8 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
94HFB16SWITCH ROTARY DIP HEX 0.1A 50V |
1,335 |
|
数据手册 |
94H | Bag | Obsolete | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.225" (5.72mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
RTE0200N01SWITCH ROTARY DIP SPDT 0.1A 50V |
3,706 |
|
数据手册 |
RTE | Bag | Obsolete | SPDT | 2 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Bronze | Silver | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE0201N01SWITCH ROTARY DIP SPDT 0.1A 50V |
1,526 |
|
数据手册 |
RTE | Bag | Obsolete | SPDT | 2 | 100mA | 50VDC | Rotary with Shaft | Raised | Bronze | Silver | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE0300N01SWITCH ROTARY DIP SP3T 0.1A 50V |
3,510 |
|
数据手册 |
RTE | Bag | Obsolete | SP3T | 3 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Bronze | Silver | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

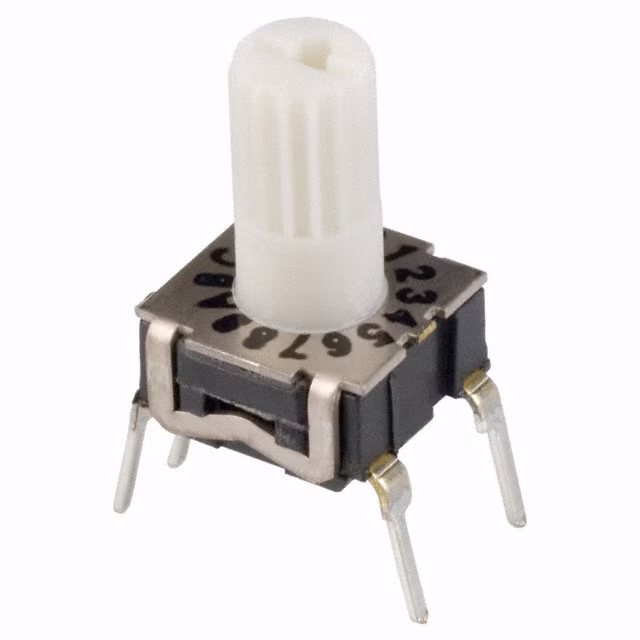

RTE0301N01SWITCH ROTARY DIP SP3T 0.1A 50V |
3,976 |
|
数据手册 |
RTE | Bag | Obsolete | SP3T | 3 | 100mA | 50VDC | Rotary with Shaft | Raised | Bronze | Silver | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTE1000N13SWITCH ROTARY DIP BCD 0.1A 30V |
4,350 |
|
数据手册 |
RTE | Bag | Obsolete | BCD | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTE1000V13SWITCH ROTARY DIP BCD 0.1A 30V |
4,820 |
|
数据手册 |
RTE | Bag | Obsolete | BCD | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.335" (8.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE1002N13SWITCH ROTARY DIP BCD 0.1A 30V |
2,052 |
|
数据手册 |
RTE | Bag | Obsolete | BCD | 10 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE1600N43SWITCH ROTARY DIP HEX 0.1A 30V |
2,800 |
|
数据手册 |
RTE | Bag | Obsolete | Hexadecimal | 16 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE1601N43SWITCH ROTARY DIP HEX 0.1A 30V |
2,845 |
|
数据手册 |
RTE | Bag | Obsolete | Hexadecimal | 16 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.463" (11.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE1602N43SWITCH ROTARY DIP HEX 0.1A 30V |
4,824 |
|
数据手册 |
RTE | Bag | Obsolete | Hexadecimal | 16 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
94HEB08RASWITCH ROTARY DIP OCTAL 0.1A 50V |
2,588 |
|
数据手册 |
94H | Bag | Obsolete | Octal | 8 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94HEB08SWITCH ROTARY DIP OCTAL 0.1A 50V |
1,466 |
|
数据手册 |
94H | Bag | Obsolete | Octal | 8 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
97C02SSWITCH SLIDE DIP SPST 0.025A 24V |
2,566 |
|
数据手册 |
97 | Bag | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
97C04SSWITCH SLIDE DIP SPST 0.025A 24V |
3,434 |
|
数据手册 |
97 | Bag | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
97C08SSWITCH SLIDE DIP SPST 0.025A 24V |
4,471 |
|
数据手册 |
97 | Bag | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
