DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDA09H0SKDSWITCH SLIDE DIP SPST 0.025A 24V |
3,412 |
|
数据手册 |
SDA | Tube | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA10H0SKDSWITCH SLIDE DIP SPST 0.025A 24V |
1,930 |
|
数据手册 |
SDA | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA12H0SKDSWITCH SLIDE DIP SPST 0.025A 24V |
2,416 |
|
数据手册 |
SDA | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
SDA02H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
1,291 |
|
数据手册 |
SDA | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA03H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
2,208 |
|
数据手册 |
SDA | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA04H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
2,166 |
|
数据手册 |
SDA | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA05H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
3,209 |
|
数据手册 |
SDA | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA06H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
4,546 |
|
数据手册 |
SDA | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA07H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
4,104 |
|
数据手册 |
SDA | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA08H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
1,882 |
|
数据手册 |
SDA | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA09H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
4,097 |
|
数据手册 |
SDA | Tube | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA10H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
1,841 |
|
数据手册 |
SDA | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA12H0SKSWITCH SLIDE DIP SPST 0.025A 24V |
3,912 |
|
数据手册 |
SDA | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
BPA02KSWITCH PIANO DIP SPST 0.1A 5V |
1,040 |
|
数据手册 |
BPA | Bag | Obsolete | SPST | 2 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
BPA04KSWITCH PIANO DIP SPST 0.1A 5V |
4,463 |
|
数据手册 |
BPA | Bag | Obsolete | SPST | 4 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
BPA05KSWITCH PIANO DIP SPST 0.1A 5V |
2,196 |
|
数据手册 |
BPA | Bag | Obsolete | SPST | 5 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

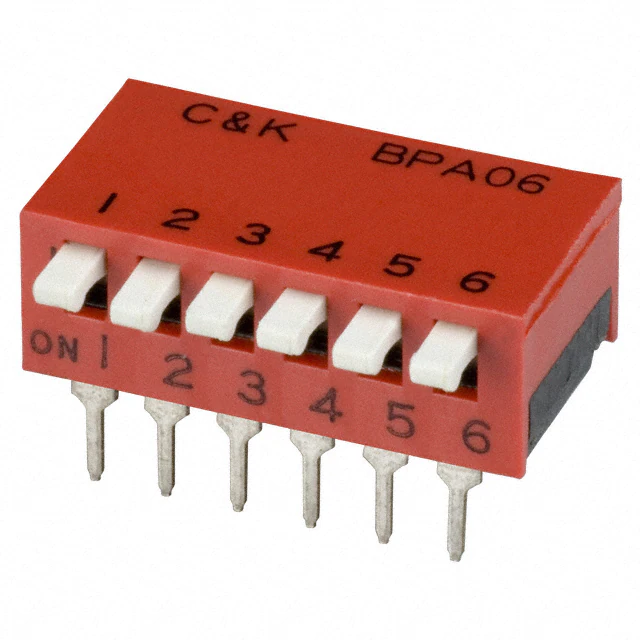

BPA06KSWITCH PIANO DIP SPST 0.1A 5V |
4,589 |
|
数据手册 |
BPA | Bag | Obsolete | SPST | 6 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
BPA07KSWITCH PIANO DIP SPST 0.1A 5V |
3,361 |
|
数据手册 |
BPA | Bag | Obsolete | SPST | 7 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
BPA08KSWITCH PIANO DIP SPST 0.1A 5V |
2,038 |
|
数据手册 |
BPA | Bag | Obsolete | SPST | 8 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

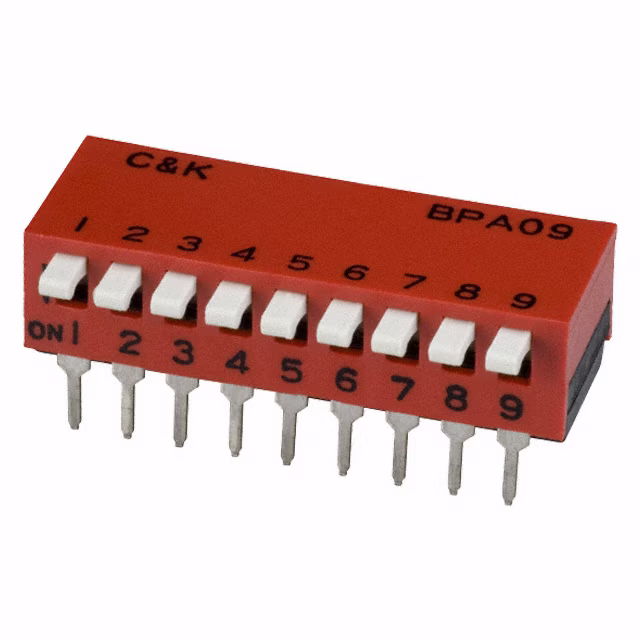

BPA09KSWITCH PIANO DIP SPST 0.1A 5V |
3,106 |
|
数据手册 |
BPA | Bag | Obsolete | SPST | 9 | 100mA | 5VDC | Piano | Raised | Phosphor Bronze | Tin | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
