DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

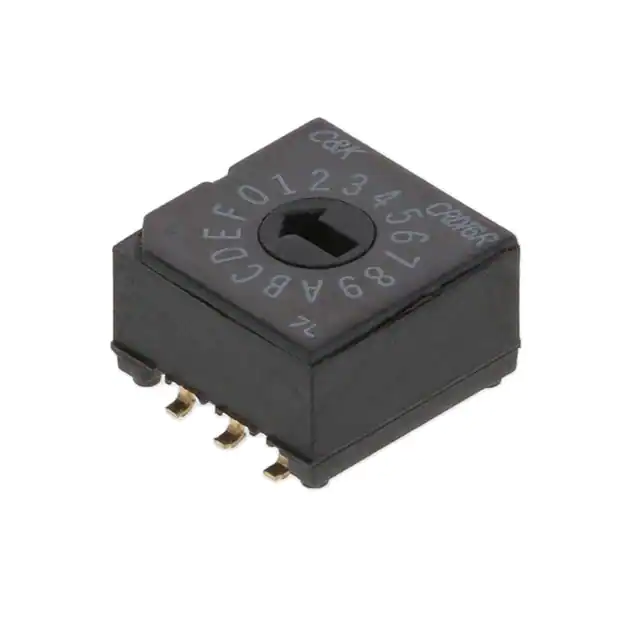

CRD16RM0SBSWITCH ROTARY DIP HEX 0.4VA 20V |
7,478 |
|
数据手册 |
CRD | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.271" (6.88mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
FR01AR16HB-SSWITCH ROTARY DIP HEX 0.1A 5V |
152 |
|
数据手册 |
FR01 | Tube | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

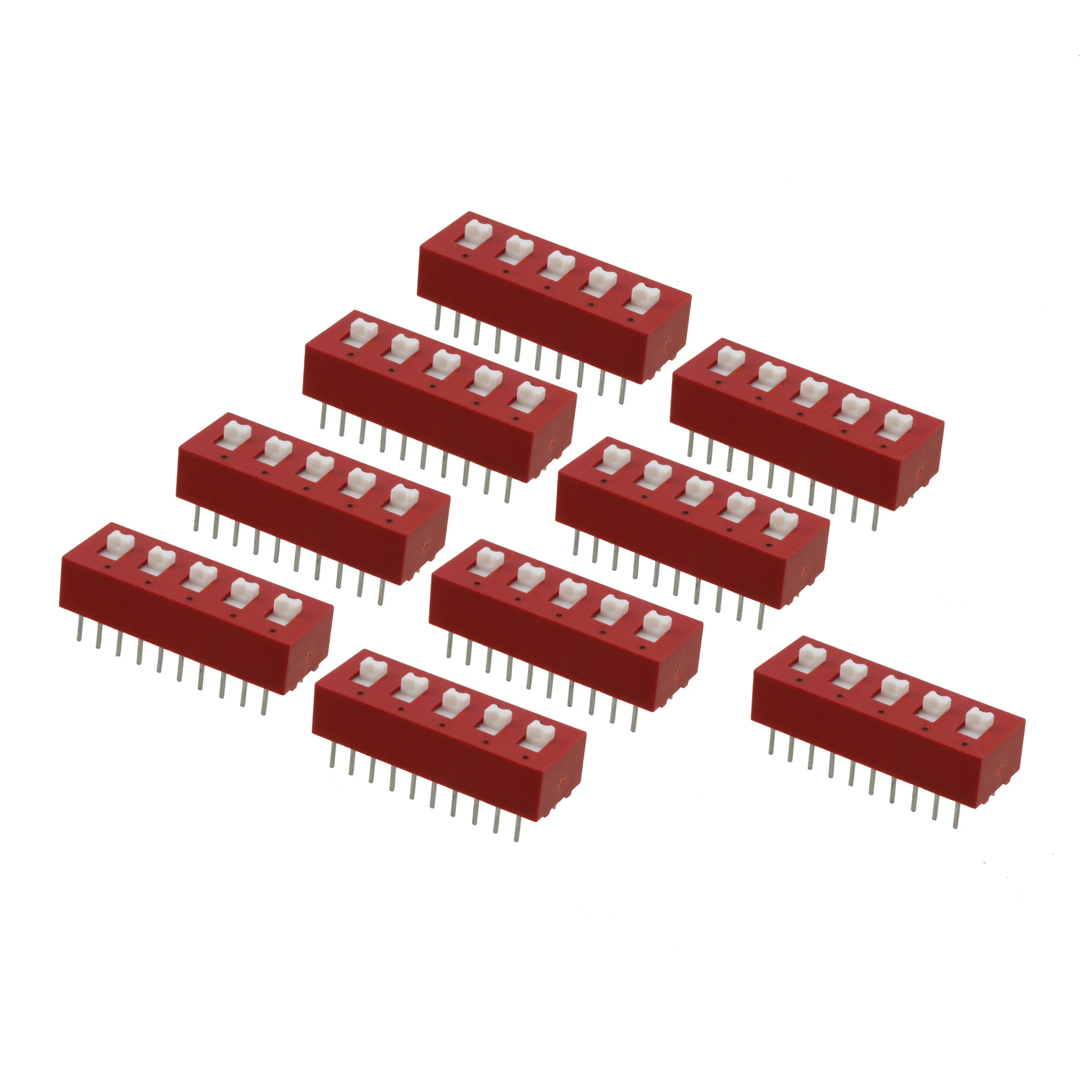

78J05TSWITCH SLIDE DIP SPDT 0.15A 30V |
144 |
|
数据手册 |
78 | Tube | Active | SPDT | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
FR01AR16PB-SSWITCH ROTARY DIP HEX 0.1A 5V |
347 |
|
数据手册 |
FR01 | Tube | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

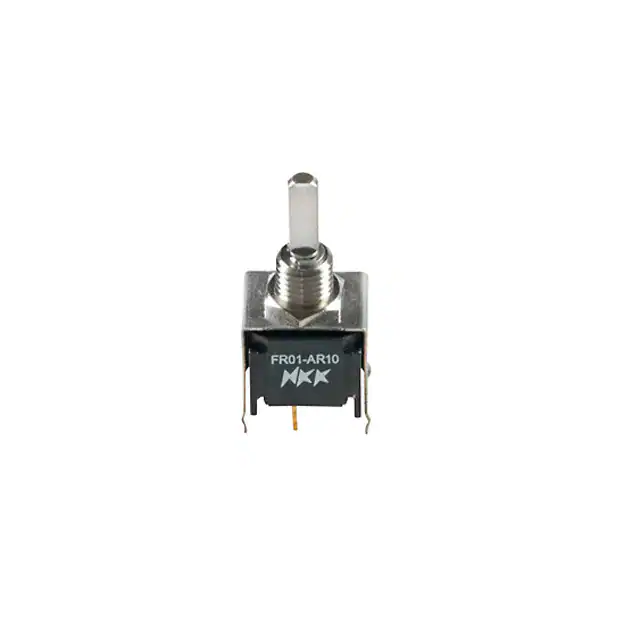

FR01AR10PBSWITCH ROTARY DIP BCD 0.1A 5V |
348 |
|
数据手册 |
FR01 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
PT65103L254SWITCH ROTARY DIP HEX 0.15A 24V |
3,650 |
|
数据手册 |
PT65 | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65126SW ROTARY DIP OCTAL 0.15A 24V |
798 |
|
数据手册 |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65301SWITCH ROTARY DIP BCD 0.15A 24V |
1,223 |
|
数据手册 |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

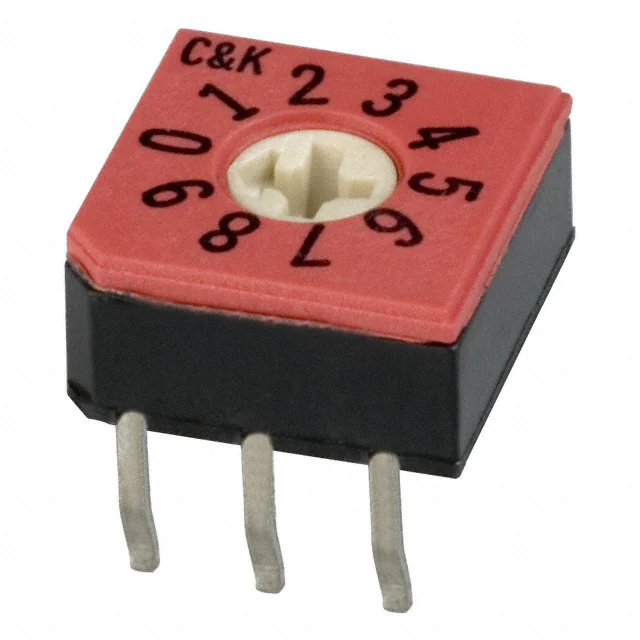

CD10RM0CBSWITCH ROTARY DIP BCD 0.4VA 20V |
1,469 |
|
数据手册 |
CD | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
PT65501L254SWITCH ROTARY DIP BCD 0.15A 24V |
1,101 |
|
数据手册 |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65503L508SWITCH ROTARY DIP HEX 0.15A 24V |
3,331 |
|
数据手册 |
PT65 | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

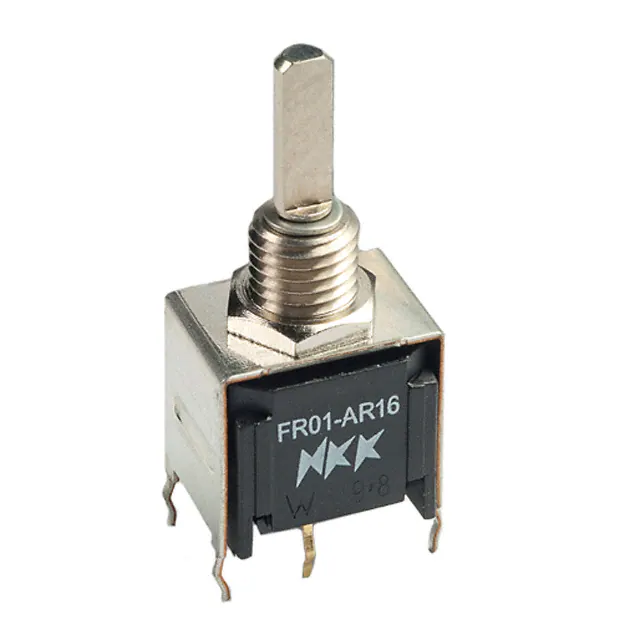

FR01AR16PB-W-SSWITCH ROTARY DIP HEX 0.1A 5V |
3,988 |
|
数据手册 |
FR01 | Tube | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|

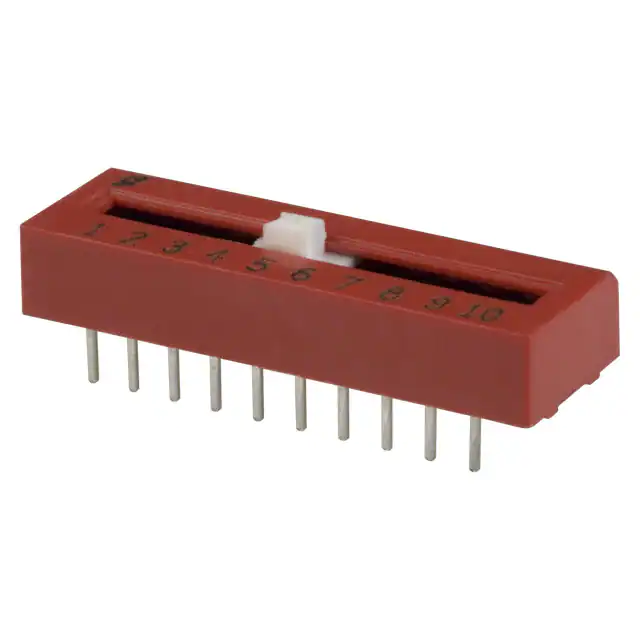

79A10TSWITCH SLIDE DIP 10PST 0.125A 6V |
856 |
|
数据手册 |
79A | Tube | Active | 10PST | 10 | 125mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.250" (6.35mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

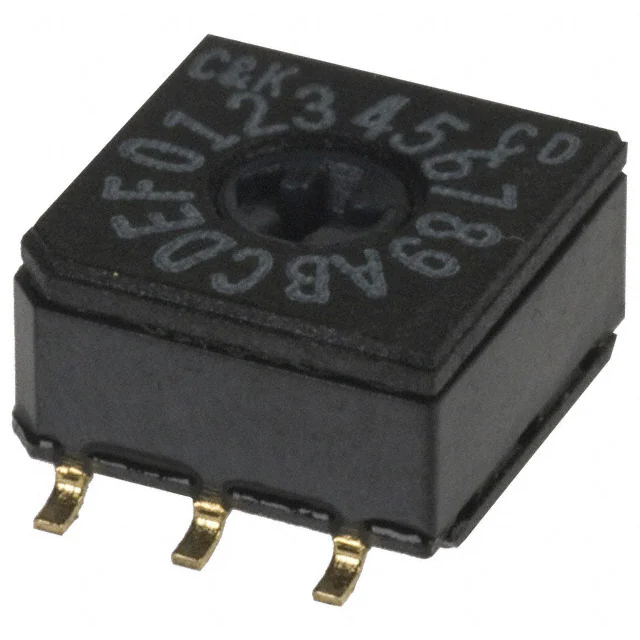

CD16CM0SBSW ROTARY DIP HEX COMP 0.4VA 20V |
3,008 |
|
数据手册 |
CD | Tube | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
CFS-0200TBSWITCH SLIDE DIP SPST 0.1A 6V |
10,366 |
|
数据手册 |
CFS | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
1825360-1SWITCH SLIDE DIP SPST 0.1A 24V |
1,860 |
|
数据手册 |
ADE | Tube | Active | SPST | 2 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
DS02C-254-1L-05BESWITCH PIANO DIP SPST 0.025A 24V |
1,031 |
|
数据手册 |
DS02-254 | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KAE02LGGRSWITCH SLIDE DIP SPST 0.025A 24V |
7,421 |
|
数据手册 |
KAE | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
209-5LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
3,753 |
|
数据手册 |
209 | Tube | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
209-5MSSWITCH SLIDE DIP SPST 0.1A 20V |
990 |
|
数据手册 |
209 | Tube | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
