DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

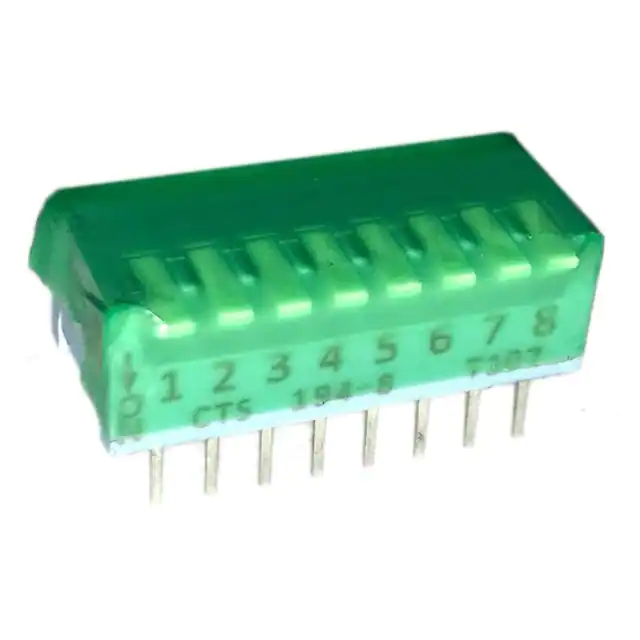

194-8MSTSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
1,276 |
|
数据手册 |
194 | Tube | Active | SPST | 8 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

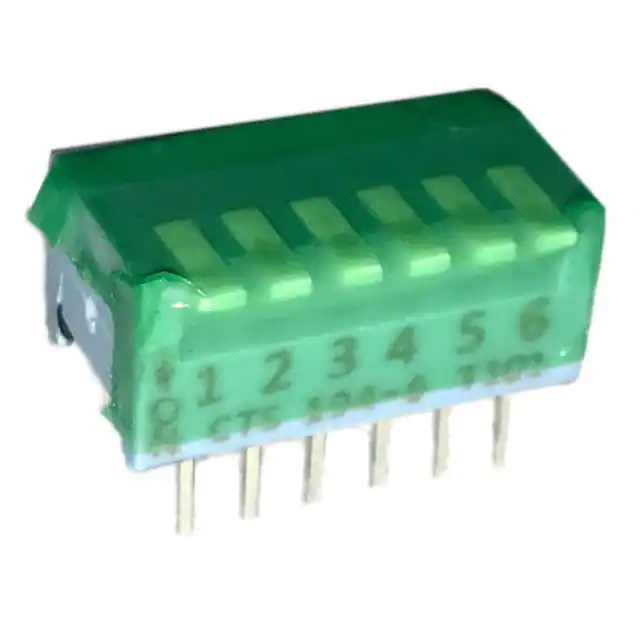

194-6MSTSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
753 |
|
数据手册 |
194 | Tube | Active | SPST | 6 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
206-214SWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
848 |
|
数据手册 |
206 | Tube | Active | DPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
.jpg)
|
219-10MSTRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,605 |
|
数据手册 |
219 | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

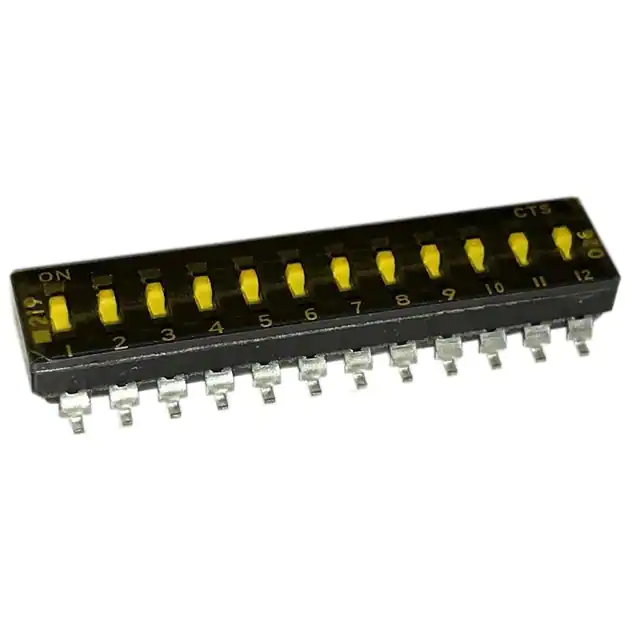

219-12MSTSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,644 |
|
数据手册 |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-8RASTSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
2,107 |
|
数据手册 |
206RA | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
193-8MSSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
666 |
|
数据手册 |
193 | Tube | Active | SPST | 8 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

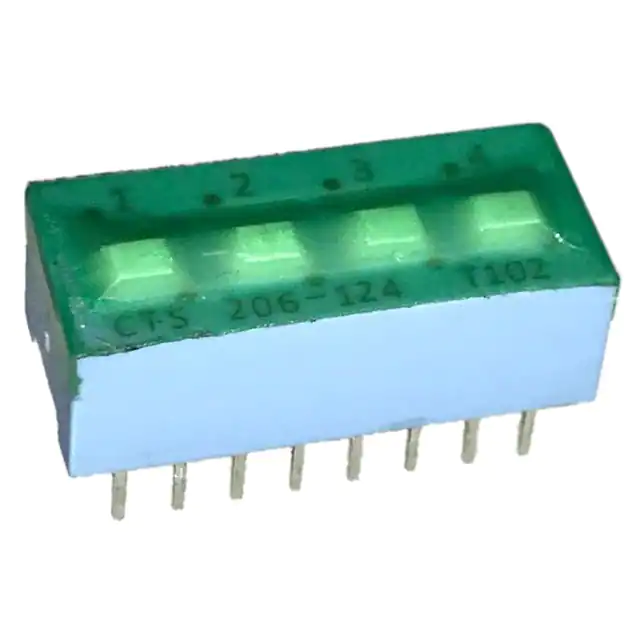

206-124STSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
1,105 |
|
数据手册 |
206 | Tube | Active | SPDT | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
204-124STSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
1,257 |
|
数据手册 |
204 | Tube | Active | SPDT | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

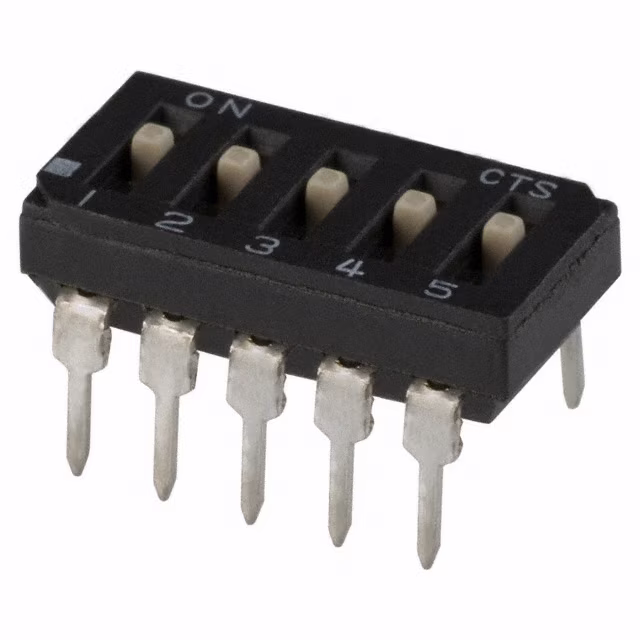

209-5LPSTSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,753 |
|
数据手册 |
209 | Tube | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
