DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD-1110SWITCH ROTARY DIP HEX 0.1A 5V |
813 |
|
数据手册 |
SD-1000 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.409" (10.39mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
GDS08S04SWITCH SLIDE DIP SPST 0.025A 24V |
2,996 |
|
数据手册 |
GDS | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
76SB02STSWITCH ROCKER DIP SPST 0.15A 30V |
3,758 |
|
数据手册 |
76 | Tube | Active | SPST | 2 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
TDP08H1SBD1SWITCH PIANO DIP SPST 0.025A 24V |
18,177 |
|
数据手册 |
TDP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

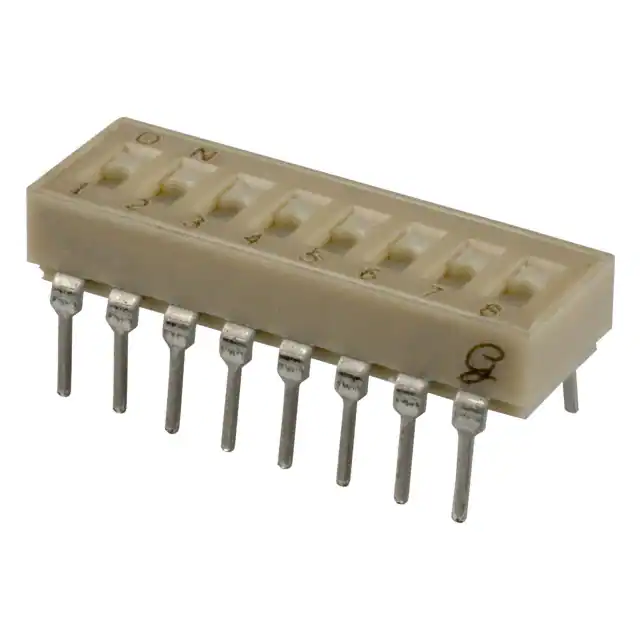

90B08STSWITCH SLIDE DIP SPST 0.025A 24V |
3,658 |
|
数据手册 |
90B | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76RSB02STSWITCH ROCKER DIP SPST 0.15A 30V |
3,454 |
|
数据手册 |
76 | Tube | Active | SPST | 2 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

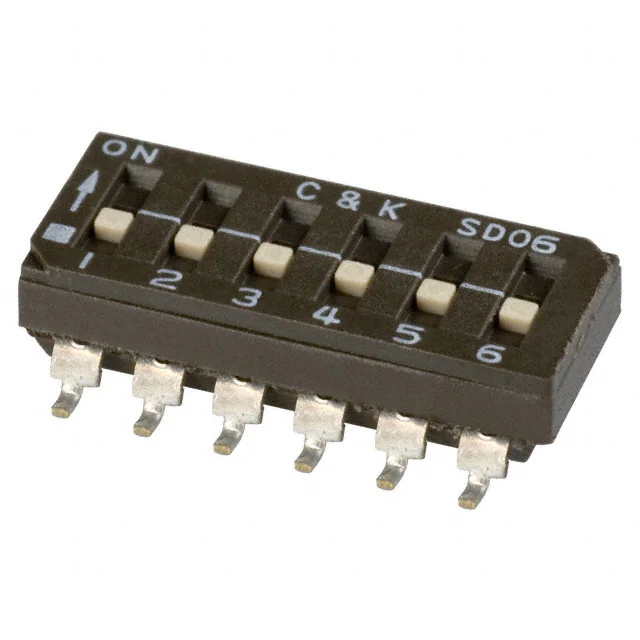

SD06H0SBSWITCH SLIDE DIP SPST 0.1A 25V |
4,806 |
|
数据手册 |
SD | Tube | Active | SPST | 6 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78B05TSWITCH SLIDE DIP SPST 0.15A 30V |
5,079 |
|
数据手册 |
78 | Tube | Active | SPST | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

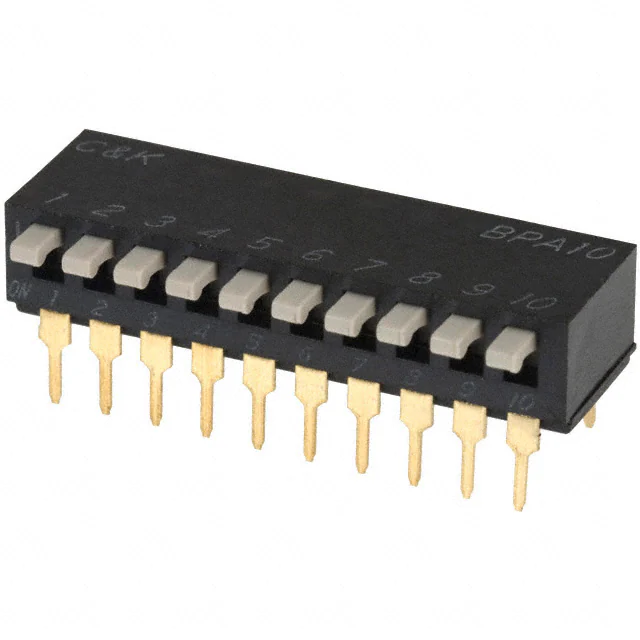

BPA10BSWITCH PIANO DIP SPST 0.1A 5V |
707 |
|
数据手册 |
BPA | Tube | Active | SPST | 10 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
RTE1600V44SWITCH ROTARY DIP HEX 0.1A 30V |
6,501 |
|
数据手册 |
RTE | Bulk | Active | Hexadecimal | 16 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.335" (8.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
428542320817SW ROTARY DIP HEX COMP 0.1A 42V |
334 |
|
数据手册 |
WS-ROSV | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
76SB03STSWITCH ROCKER DIP SPST 0.15A 30V |
2,941 |
|
数据手册 |
76 | Tube | Active | SPST | 3 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SDA12H0SBRSWITCH SLIDE DIP SPST 0.025A 24V |
1,084 |
|
数据手册 |
SDA | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SD08H1SBSWITCH SLIDE DIP SPST 0.1A 25V |
868 |
|
数据手册 |
SD | Tube | Active | SPST | 8 | 100mA | 25VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.180" (4.57mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB05TSWITCH ROCKER DIP SPST 0.15A 30V |
4,227 |
|
数据手册 |
76 | Tube | Active | SPST | 5 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
76SB07STSWITCH ROCKER DIP SPST 0.15A 30V |
4,098 |
|
数据手册 |
76 | Tube | Active | SPST | 7 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78B06TSWITCH SLIDE DIP SPST 0.15A 30V |
2,491 |
|
数据手册 |
78 | Tube | Active | SPST | 6 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6S-8104-PHSWITCH SLIDE DIP SPST 0.025A 24V |
1,652 |
|
数据手册 |
A6S-H | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

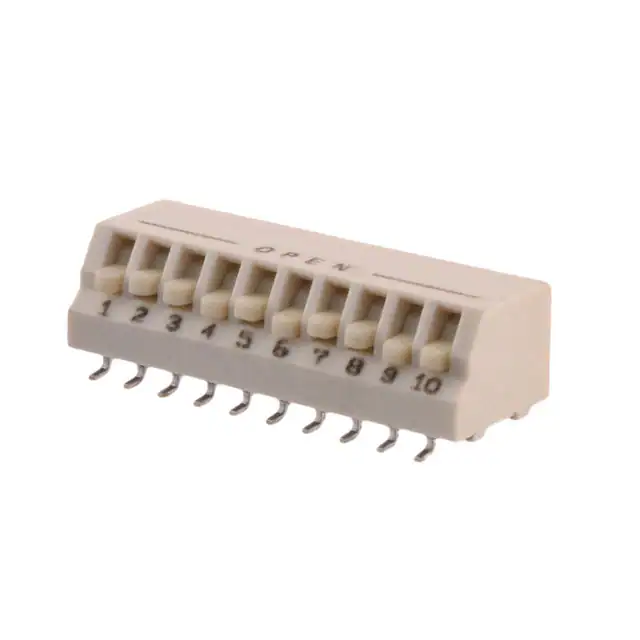

76HPSB10GWRTSWITCH PIANO DIP SPST 0.15A 30V |
3,345 |
|
数据手册 |
76HP | Tape & Reel (TR) | Active | SPST | 10 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.337" (8.56mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
1825006-8SWITCH SLIDE DIP SPST 0.025A 24V |
6,269 |
|
数据手册 |
GDS | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold Alloy | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
