上传BOM单
DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6HR-6104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,060 |
|
数据手册 |
A6HR | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
A6E-8101-NSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,862 |
|
数据手册 |
A6E-N | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6KV-162RSSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
4,273 |
|
数据手册 |
A6K | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
A6K-164RFSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
3,279 |
|
数据手册 |
A6K | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.118" (3.00mm) | Through Hole | PC Pin | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|

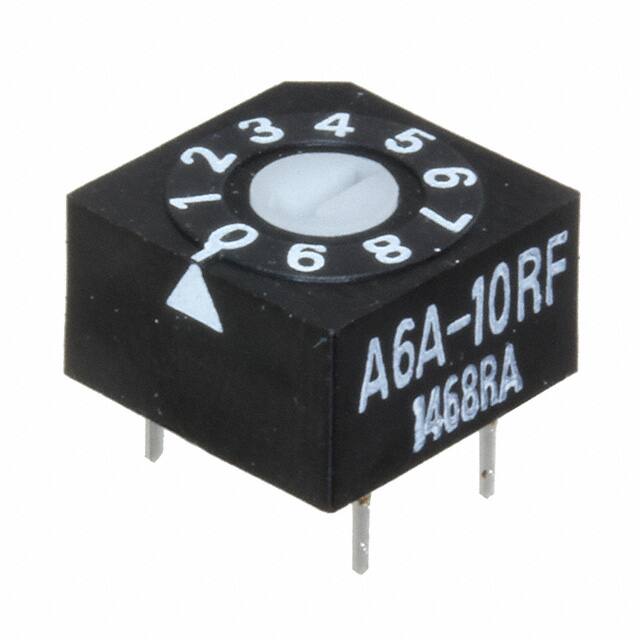

A6A-10RFSWITCH ROTARY DIP BCD 0.1A 28V Omron Electronics Inc-EMC Div |
1,652 |
|
数据手册 |
A6A | Tray | Active | BCD | 10 | 100mA | 28VDC | Rotary for Tool | Flush, Recessed | - | - | 0.244" (6.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|
A6KSV-104RSSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
2,735 |
|
数据手册 |
A6KS | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.293" (7.45mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
A6TN-5101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,953 |
|
数据手册 |
A6TN | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6TN-9101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,230 |
|
数据手册 |
A6TN | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6TN-0101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,886 |
|
数据手册 |
A6TN | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6SR-0104SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
3,418 |
|
数据手册 |
A6SR | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
