DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6A-10CSSW ROTARY DIP BCD COMP 0.1A 28V Omron Electronics Inc-EMC Div |
1,635 |
|
数据手册 |
A6A | Tray | Active | BCD Complement | 10 | 100mA | 28VDC | Rotary with Shaft | Raised | - | - | 0.531" (13.49mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|

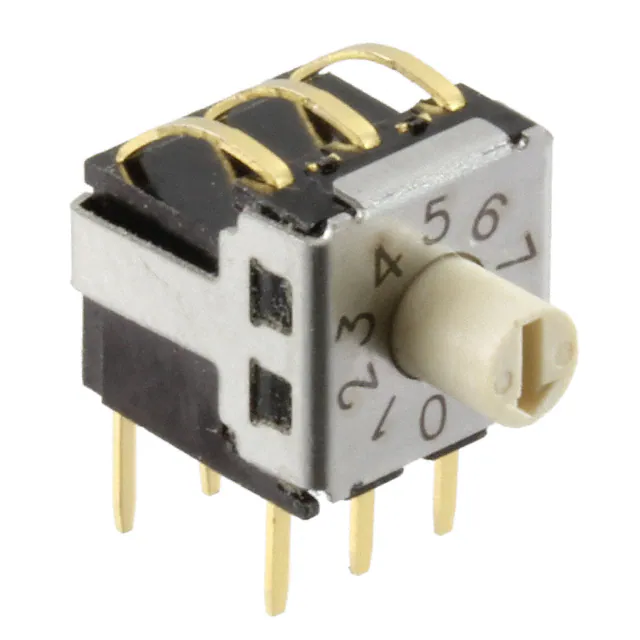

A6KV-102RSSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
4,074 |
|
数据手册 |
A6K | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
A6A-10CSW ROTARY DIP BCD COMP 0.1A 28V Omron Electronics Inc-EMC Div |
4,365 |
|
数据手册 |
A6A | Bulk | Active | BCD Complement | 10 | 100mA | 28VDC | Rotary for Tool | Raised | - | - | 0.295" (7.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|

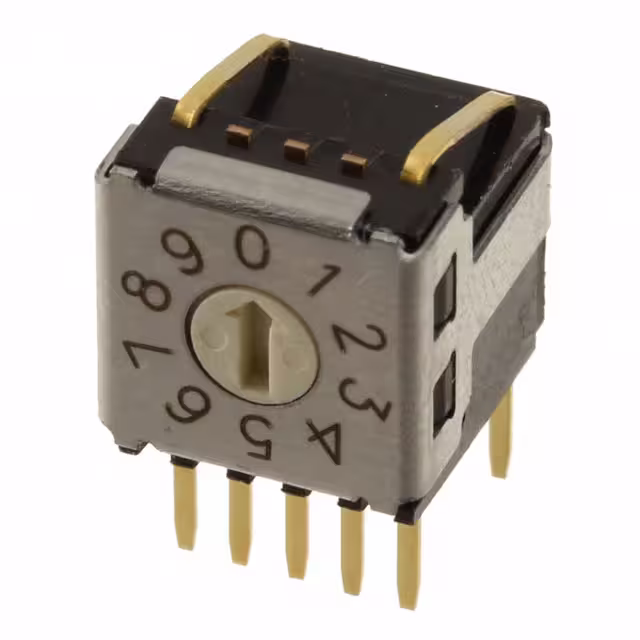

A6KV-104RFSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
4,000 |
|
数据手册 |
A6K | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
|
A6A-16CSSW ROTARY DIP HEX COMP 0.1A 28V Omron Electronics Inc-EMC Div |
1,116 |
|
数据手册 |
A6A | Tray | Active | Hexadecimal Complement | 16 | 100mA | 28VDC | Rotary with Shaft | Raised | - | - | 0.531" (13.49mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|
|
A6TR-6101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,345 |
|
数据手册 |
A6TR | Bulk | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6ER-3101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
4,760 |
|
数据手册 |
A6ER | Bulk | Obsolete | SPST | 3 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6SR-0101-R100SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
100 |
|
数据手册 |
A6SR | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6SN-5102-R100SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
100 |
|
数据手册 |
A6SN | Tape & Reel (TR) | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
A6S-7102-HSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,453 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
