DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6C 0010ESWITCH DIP 0.1A 30V Omron Electronics Inc-EMC Div |
436 |
|
数据手册 |
A6C | Bulk | Active | - | - | 100mA | 30VDC | - | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6EN0017BSWITCH SLIDE DIP 0.025A 24V Omron Electronics Inc-EMC Div |
304 |
|
数据手册 |
A6E | Box | Active | - | - | 25mA | 24VDC | Slide (Standard) | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6A 1602MROTARY DIP SWITCH Omron Electronics Inc-EMC Div |
230 |
|
数据手册 |
A6A | Bulk | Active | - | - | 100mA | 28VDC | - | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -10°C ~ 70°C |
|
|
A6C 0010ESWITCH DIP 0.1A 30V Omron Electronics Inc-EMC Div |
600 |
|
数据手册 |
A6C | Box | Active | - | - | 100mA | 30VDC | - | - | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
A6K 0003RSWITCH DIP 0.025A 24V Omron Electronics Inc-EMC Div |
124 |
|
数据手册 |
A6K | Box | Active | - | - | 25mA | 24VDC | - | - | - | - | - | - | - | - | No | - | -30°C ~ 80°C |
|
A6SR-6104-PSWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
2,155 |
|
数据手册 |
A6SR | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-3101-HSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
3,540 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6HF-6102SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
1,994 |
|
数据手册 |
A6HF | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|

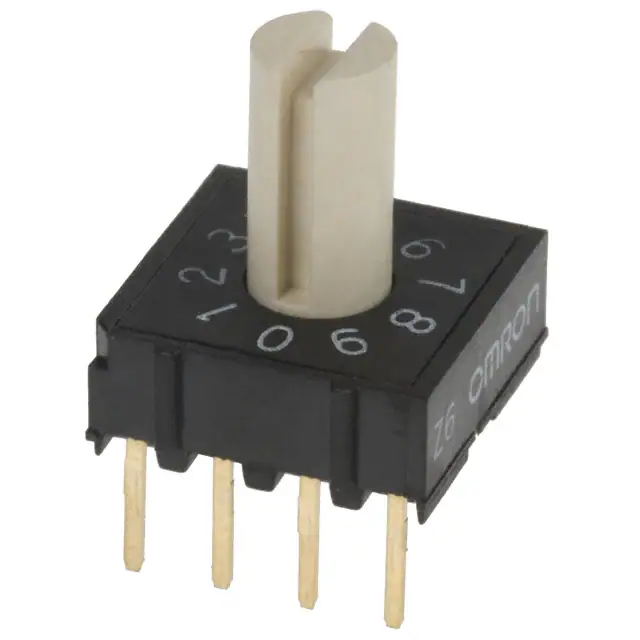

A6R-101RSSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
1,682 |
|
数据手册 |
A6R | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.465" (11.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|

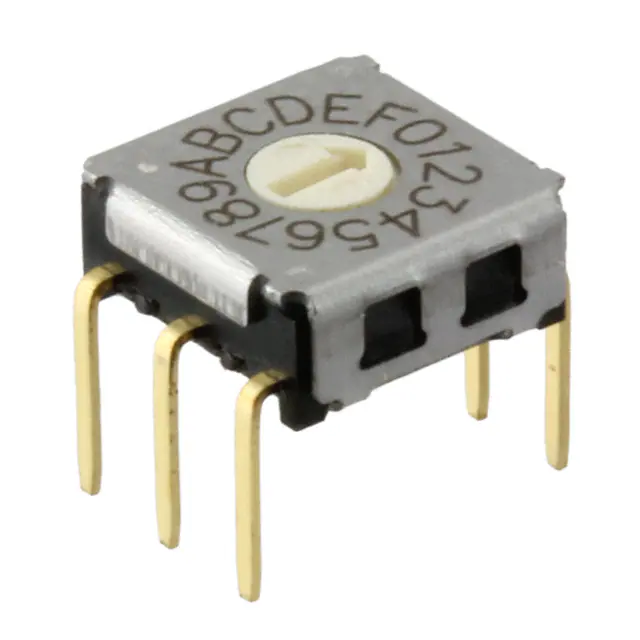

A6KV-162RFSWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div |
3,879 |
|
数据手册 |
A6K | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
