DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RD10AB8RGTSW ROTARY DIP OCTAL 0.15A 50V |
3,531 |
|
数据手册 |
RD10 | Tube | Active | Octal | 8 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10AA16CGTSW ROTARY DIP HEX COMP 0.15A 50V |
1,109 |
|
数据手册 |
RD10 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RDTCR16S2TSWITCH ROTARY DIP HEX 0.15A 42V |
1,949 |
|
数据手册 |
RDT | Tube | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
SD12H0BSWITCH SLIDE DIP SPST 0.1A 25V |
3,738 |
|
数据手册 |
SD | Tube | Active | SPST | 12 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
MPG302BSW PIANO DIP DPST 0.025A 24V |
1,422 |
|
数据手册 |
MPG | Tube | Active | DPST-NO/NC | 2 | 25mA | 24VDC | Piano | Raised | Brass | Gold | 0.381" (9.68mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
|
2-2319764-9E STACK PIANO 8P G SHORT SEAL T& |
4,263 |
|
数据手册 |
EDSP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
RD10RB6RVBTSWITCH ROTARY DIP BCD 0.15A 50V |
4,049 |
|
数据手册 |
RD10 | Tube | Active | BCD | 6 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10RB10CVATSW ROTARY DIP BCD COMP 0.15A 50V |
2,455 |
|
数据手册 |
RD10 | Tube | Active | BCD Complement | 10 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10AB10CVBTSW ROTARY DIP BCD COMP 0.15A 50V |
3,131 |
|
数据手册 |
RD10 | Tube | Active | BCD Complement | 10 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10AA8CVBTSW ROTARY DIP OCT COMP 0.15A 50V |
3,289 |
|
数据手册 |
RD10 | Tube | Active | Octal Complement | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10RB8RVATSW ROTARY DIP OCTAL 0.15A 50V |
2,053 |
|
数据手册 |
RD10 | Tube | Active | Octal | 8 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10AA8RVATSW ROTARY DIP OCTAL 0.15A 50V |
3,397 |
|
数据手册 |
RD10 | Tube | Active | Octal | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10AB4RVBTSWITCH ROTARY DIP BCD 0.15A 50V |
1,826 |
|
数据手册 |
RD10 | Tube | Active | BCD | 4 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10AB16CVATSW ROTARY DIP HEX COMP 0.15A 50V |
1,941 |
|
数据手册 |
RD10 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10AA16CVBTSW ROTARY DIP HEX COMP 0.15A 50V |
3,226 |
|
数据手册 |
RD10 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
3-5435668-0SWITCH ROCKER DIP SPST 0.06A 5V |
1,307 |
|
数据手册 |
7100 | Tube | Active | SPST | 10 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|

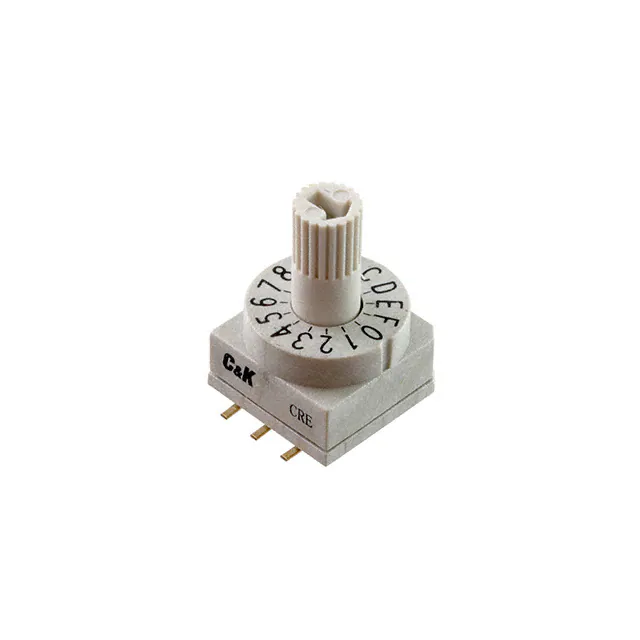

CRE16RRDL0SSWITCH ROTARY DIP HEX 0.15A 42V |
3,860 |
|
数据手册 |
CRE | Tube | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary with Shaft | Raised | Brass | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
GDH06STRSWITCH SLIDE DIP SPST 0.025A 24V |
2,379 |
|
数据手册 |
GDH | Tape & Reel (TR) | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
EDS02SNNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
3,315 |
|
数据手册 |
EDS | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
435640-7SWITCH ROCKER DIP SPST |
4,437 |
|
数据手册 |
7100 | Tube | Active | SPST | 10 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | No | - | - |
