DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAS1108ETSWITCH SLIDE DIP SPST 0.025A 24V |
1,758 |
|
数据手册 |
KAS | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

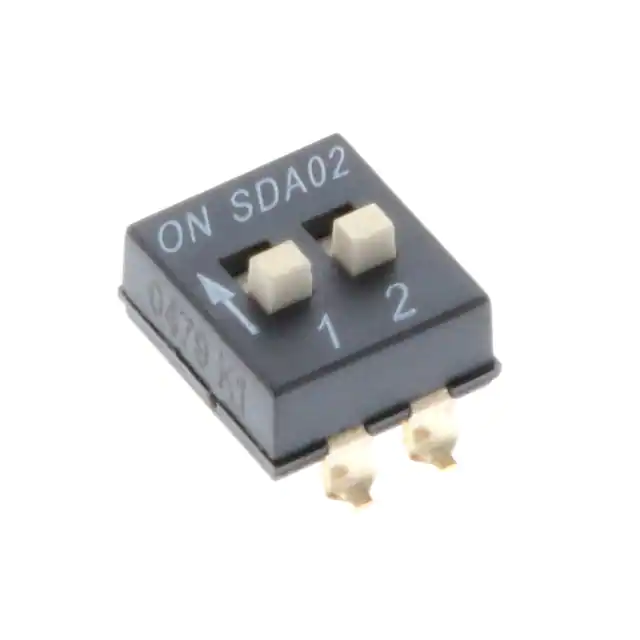

SDA02H1SBDRSWITCH SLIDE DIP SPST 0.025A 24V |
35,986 |
|
数据手册 |
SDA | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
1825057-9SWITCH SLIDE DIP SPST 0.1A 24V |
6,819 |
|
数据手册 |
ADE | Tube | Active | SPST | 10 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6S-4101-HSWITCH SLIDE DIP SPST 0.025A 24V |
2,695 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-6102-PHSWITCH SLIDE DIP SPST 0.025A 24V |
3,792 |
|
数据手册 |
A6S-H | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|

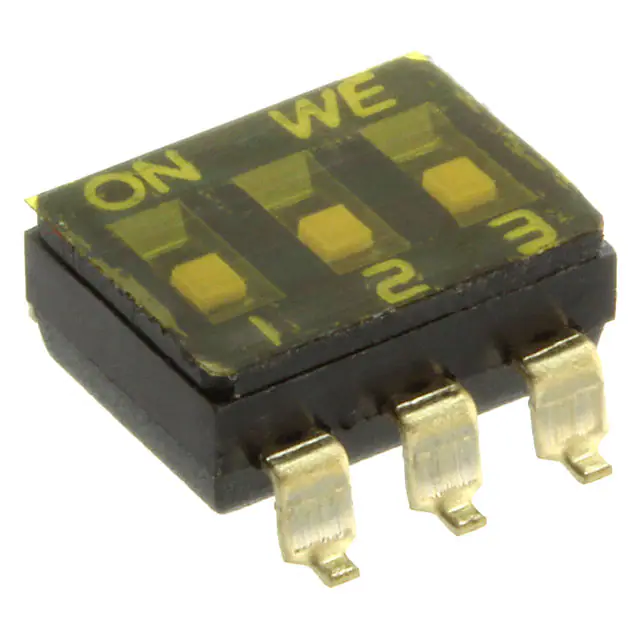

418121160803SWITCH SLIDE DIP SPST 0.025A 24V |
1,391 |
|
数据手册 |
WS-DISV | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
BD06SWITCH SLIDE DIP SPST 0.1A 5V |
10,366 |
|
数据手册 |
BD | Tube | Active | SPST | 6 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

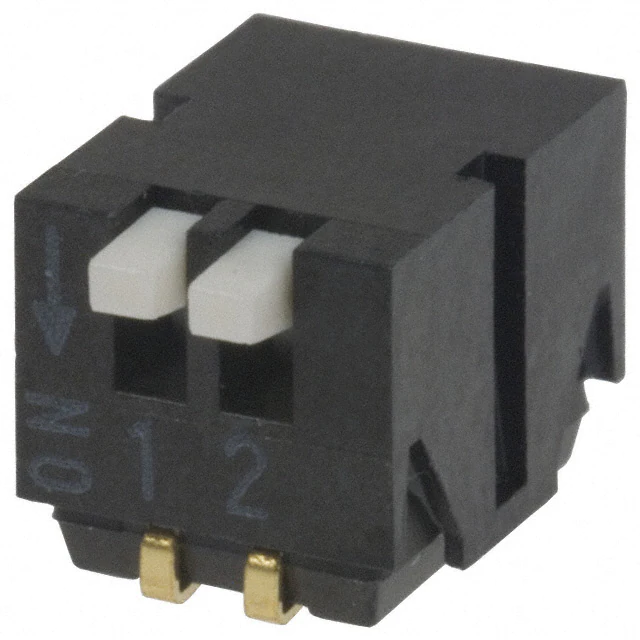

CHP-021TASWITCH PIANO DIP SPST 0.1A 6V |
2,153 |
|
数据手册 |
CHP | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount, Right Angle | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
KAD08LHGTSWITCH SLIDE DIP SPST 0.1A 50V |
133 |
|
数据手册 |
KAD | Tube | Active | SPST | 8 | 100mA | 50VDC | Slide (Standard) | Raised | - | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
A6SR-8104-PSWITCH PIANO DIP SPST 0.025A 24V |
4,969 |
|
数据手册 |
A6SR | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
204-124STSWITCH SLIDE DIP SPDT 0.05A 24V |
1,257 |
|
数据手册 |
204 | Tube | Active | SPDT | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
A6SN-3101-PSWITCH SLIDE DIP SPST 0.025A 24V |
2,036 |
|
数据手册 |
A6SN | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6S-1102-HSWITCH SLIDE DIP SPST 0.025A 24V |
2,886 |
|
数据手册 |
A6S-H | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|

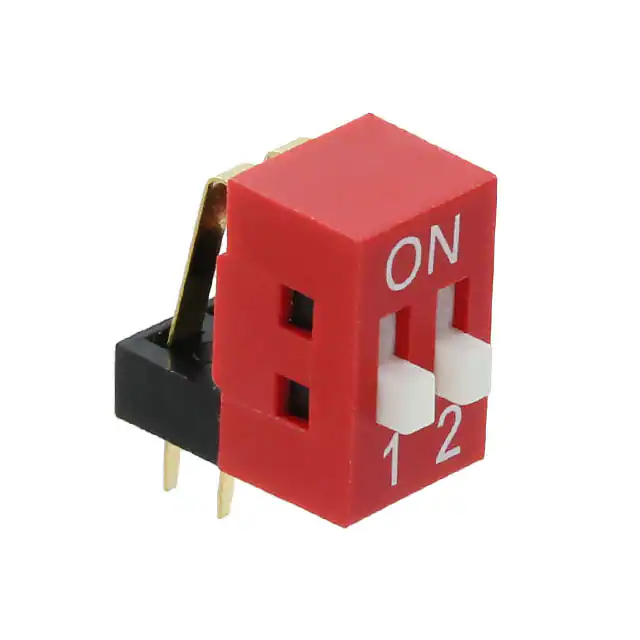

418217270902ASWITCH SLIDE DIP SPST 0.025A 24V |
322 |
|
数据手册 |
WS-DITU | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
5435640-5SWITCH ROCKER DIP SPST 0.06A 5V |
5,074 |
|
数据手册 |
7100 | Tube | Active | SPST | 8 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
418121160804SWITCH SLIDE DIP SPST 0.025A 24V |
3,256 |
|
数据手册 |
WS-DISV | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

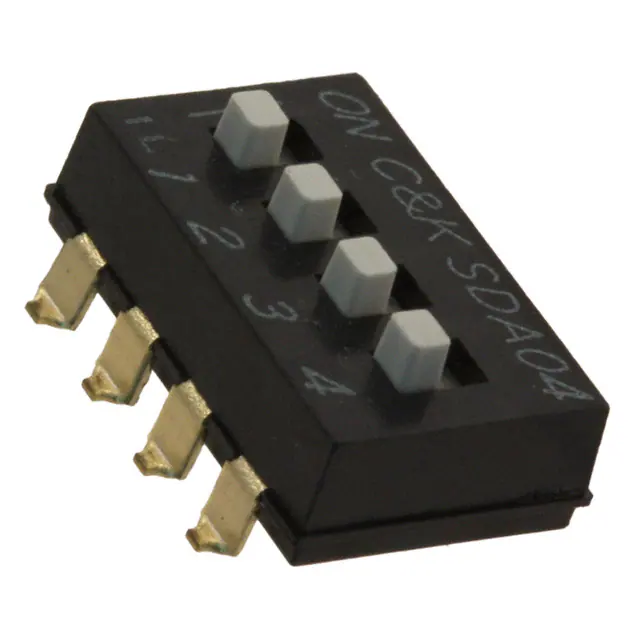

SDA04H1SBDRSWITCH SLIDE DIP SPST 0.025A 24V |
43,070 |
|
数据手册 |
SDA | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

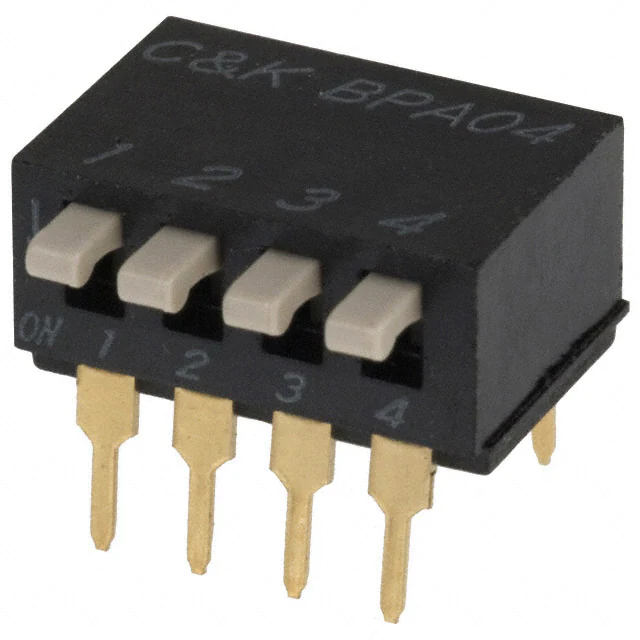

BPA04BSWITCH PIANO DIP SPST 0.1A 5V |
21,519 |
|
数据手册 |
BPA | Tube | Active | SPST | 4 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
418121270806SWITCH SLIDE DIP SPST 0.025A 24V |
1,815 |
|
数据手册 |
WS-DISV | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418217270904ASWITCH SLIDE DIP SPST 0.025A 24V |
3,483 |
|
数据手册 |
WS-DITU | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
