上传BOM单
DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

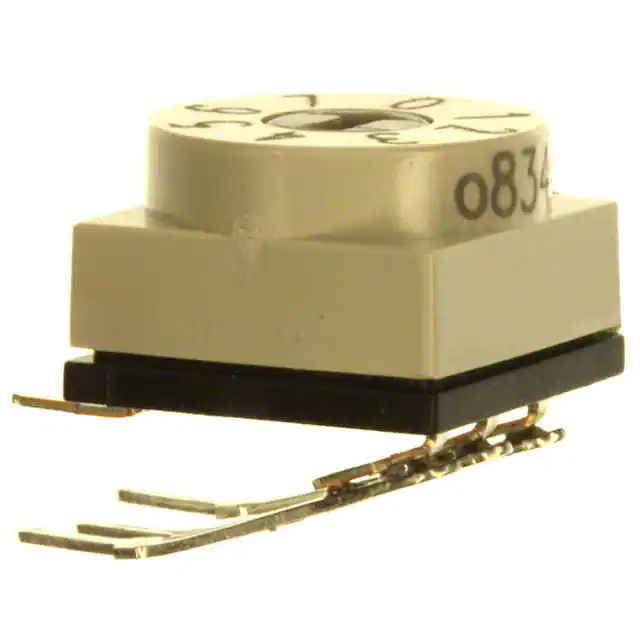

PT65126L254SW ROTARY DIP OCTAL 0.15A 24V APEM Inc. |
4,376 |
|
数据手册 |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

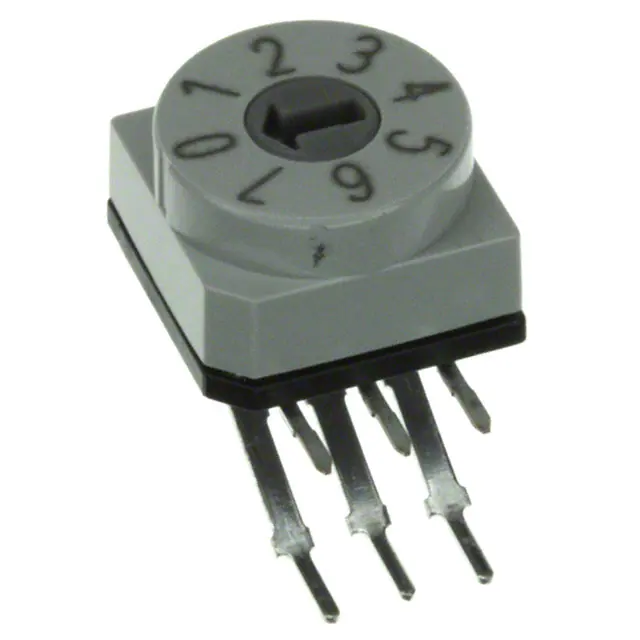

PT65127L508SW ROTARY DIP OCT COMP 0.15A 24V APEM Inc. |
4,122 |
|
数据手册 |
PT65 | Tube | Active | Octal Complement | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
P65THR103L254DIP ROTARY SWITCH P60 10MM APEM Inc. |
3,778 |
|
数据手册 |
P65 | Bulk | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -60°C ~ 125°C |
|
|
P65THR101DIP ROTARY SWITCH P60 10MM APEM Inc. |
1,540 |
|
数据手册 |
P65 | Bulk | Active | BCD | 10 | 200mA | 42VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -60°C ~ 125°C |
|
|
PT65726L254SW ROTARY DIP OCTAL 0.15A 24V APEM Inc. |
3,367 |
|
数据手册 |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65724L254SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc. |
3,215 |
|
数据手册 |
PT65 | Tube | Active | BCD | 6 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65721L508SWITCH ROTARY DIP SP4T 0.15A 24V APEM Inc. |
4,977 |
|
数据手册 |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
DH101ALSMT001SWITCH ROTARY DIP BCD 0.1A 42V APEM Inc. |
3,259 |
|
数据手册 |
DH | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 42VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|

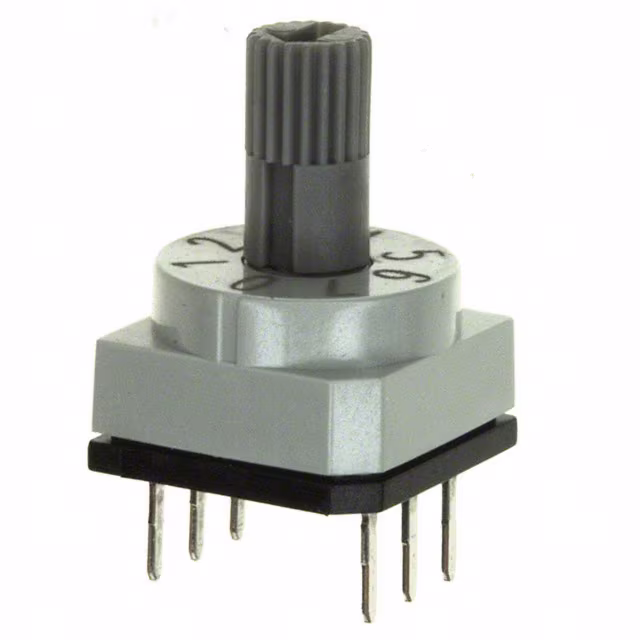

PT65326SW ROTARY DIP OCTAL 0.15A 24V APEM Inc. |
4,582 |
|
数据手册 |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

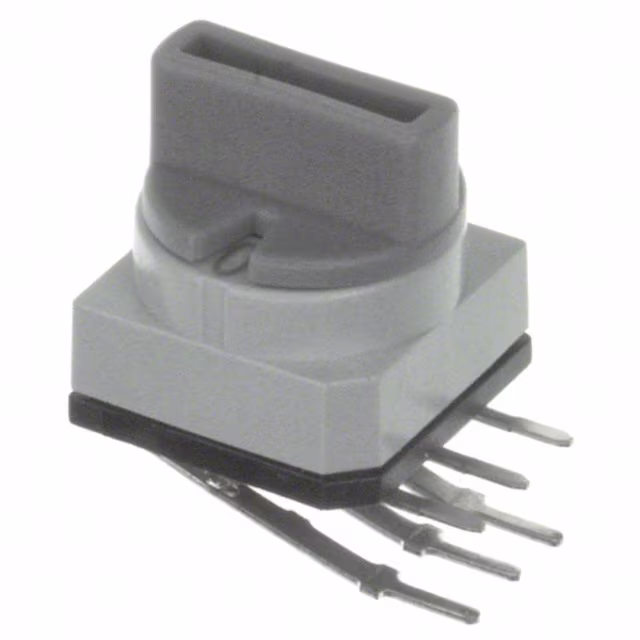

PT65502L254SW ROTARY DIP BCD COMP 0.15A 24V APEM Inc. |
4,132 |
|
数据手册 |
PT65 | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
