上传BOM单
DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT65702L254DIP ROTARY SWITCH P60 10MM APEM Inc. |
4,927 |
|
数据手册 |
PT65 | Bulk | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.393" (9.98mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 70°C |
|
|
PT65702L508DIP ROTARY SWITCH P60 10MM APEM Inc. |
3,181 |
|
数据手册 |
PT65 | Bulk | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.393" (9.98mm) | Through Hole, Right Angle | PC Pin | 0.200" (5.08mm) | Yes | - | -20°C ~ 70°C |
|

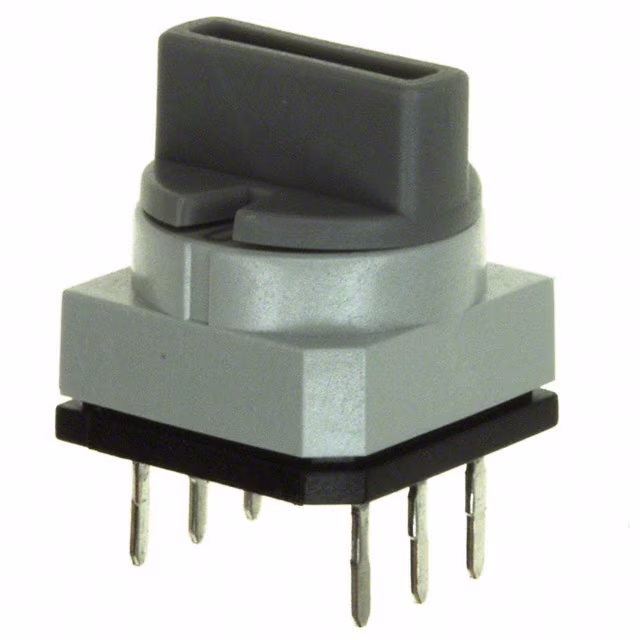

PT65502SW ROTARY DIP BCD COMP 0.15A 24V APEM Inc. |
4,126 |
|
数据手册 |
PT65 | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.469" (11.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65301VSWITCH ROTARY DIP BCD 0.15A 24V APEM Inc. |
2,086 |
|
数据手册 |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
P60A701L508DIP ROTARY SWITCH P60 10MM APEM Inc. |
3,812 |
|
数据手册 |
P60A | Bulk | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Stainless Steel | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
P60A702L508DIP ROTARY SWITCH P60 10MM APEM Inc. |
1,130 |
|
数据手册 |
P60A | Bulk | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Stainless Steel | Gold | 0.236" (6.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
PT65112L508SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc. |
3,735 |
|
数据手册 |
PT65 | Tube | Active | BCD | 4 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65106L508SW ROTARY DIP HEX COMP 0.15A 24V APEM Inc. |
4,650 |
|
数据手册 |
PT65 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

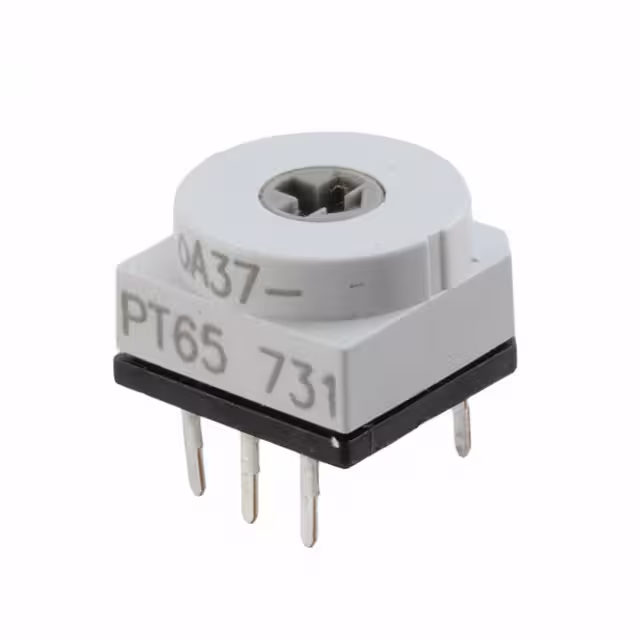

PT65731SWITCH ROTARY DIP 0.15A 24V APEM Inc. |
3,046 |
|
数据手册 |
PT65 | Tube | Active | - | - | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65306L508DIP ROTARY SWITCH P60 10MM APEM Inc. |
4,282 |
|
数据手册 |
PT65 | Bulk | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 70°C |
