DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT65305SW ROTARY DIP GRY CODE 0.15A 24V APEM Inc. |
3,917 |
|
数据手册 |
PT65 | Tube | Active | Gray Code | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
P36SMTSG86DIP ROTARY SWITCH P25 7MM LOW APEM Inc. |
3,340 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
P36803DIP ROTARY SWITCH P25 7MM LOW APEM Inc. |
2,434 |
|
数据手册 |
P36 | Bulk | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.143" (3.63mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P36301VDIP ROTARY SWITCH P25 7MM LOW APEM Inc. |
1,498 |
|
数据手册 |
P36 | Bulk | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.143" (3.63mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P36S303DIP ROTARY SWITCH P25 7MM LOW APEM Inc. |
3,190 |
|
数据手册 |
P36 | Bulk | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.151" (3.84mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P36SMJ103DIP ROTARY SWITCH P25 7MM LOW APEM Inc. |
2,906 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
P60A702DIP ROTARY SWITCH P60 10MM APEM Inc. |
4,896 |
|
数据手册 |
P60A | Bulk | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Stainless Steel | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

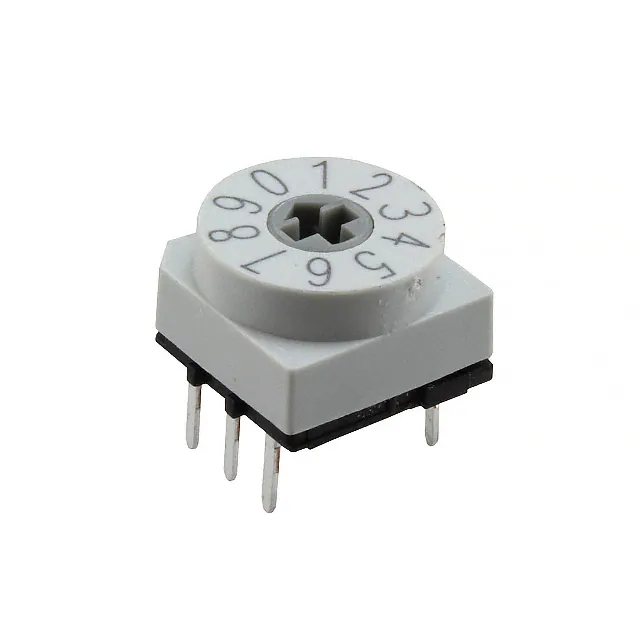

P65THR701SWITCH ROTARY DIP BCD 0.2A 50V APEM Inc. |
2,762 |
|
数据手册 |
P65 | Tube | Active | BCD | 10 | 200mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
|
P36THR301L254SWITCH ROTARY DIP TH APEM Inc. |
2,123 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RM3HA10RVSWITCH ROTARY DIP BCD 0.025A 24V APEM Inc. |
3,290 |
|
数据手册 |
RM | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.224" (5.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 80°C |
