DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADE12SWITCH SLIDE DIP SPST 0.1A 24V TE Connectivity ALCOSWITCH Switches |
2,828 |
|
数据手册 |
ADE | Tube | Obsolete | SPST | 12 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADF10SSWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
4,022 |
|
数据手册 |
ADF | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
GDS04SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,208 |
|
数据手册 |
GDS | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
ADPA04SASWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
4,290 |
|
数据手册 |
ADPA | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Surface Mount, Right Angle | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
435640-6SWITCH ROCKER DIP SPST 0.06A 5V TE Connectivity ALCOSWITCH Switches |
4,149 |
|
数据手册 |
7100 | Tube | Obsolete | SPST | 9 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
ADF06STSWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
1,483 |
|
数据手册 |
ADF | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
GDH04STRSWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,496 |
|
数据手册 |
GDH | Tape & Reel (TR) | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
ADE10SSWITCH SLIDE DIP SPST 0.1A 24V TE Connectivity ALCOSWITCH Switches |
2,056 |
|
数据手册 |
ADE | Tube | Obsolete | SPST | 10 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.219" (5.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
5-435166-1SWITCH ROCKER DIP SPST TE Connectivity ALCOSWITCH Switches |
4,455 |
|
数据手册 |
7000 | Bulk | Active | SPST | 6 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|

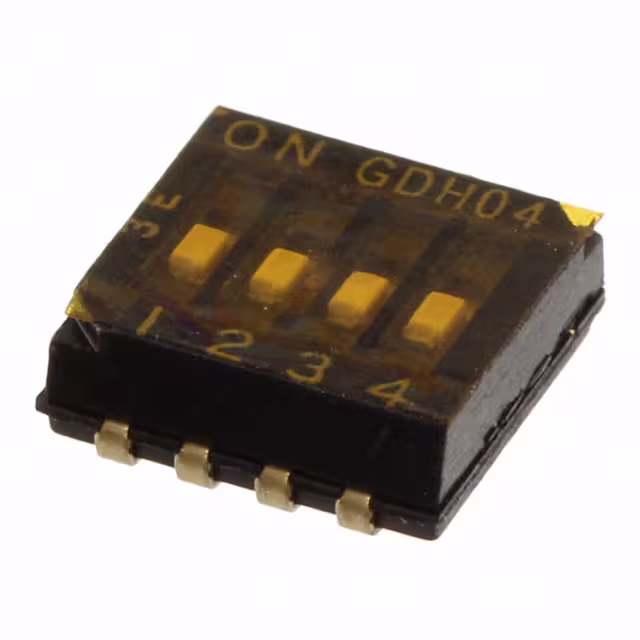

GDH04SA04SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
3,107 |
|
数据手册 |
GDH | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
