DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
218-8LPSFSWITCH SLIDE DIP SPST 0.025A 24V |
3,917 |
|
数据手册 |
218 | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
ADE02SASWITCH SLIDE DIP SPST 0.1A 24V |
4,404 |
|
数据手册 |
ADE | Tube | Obsolete | SPST | 2 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.246" (6.25mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

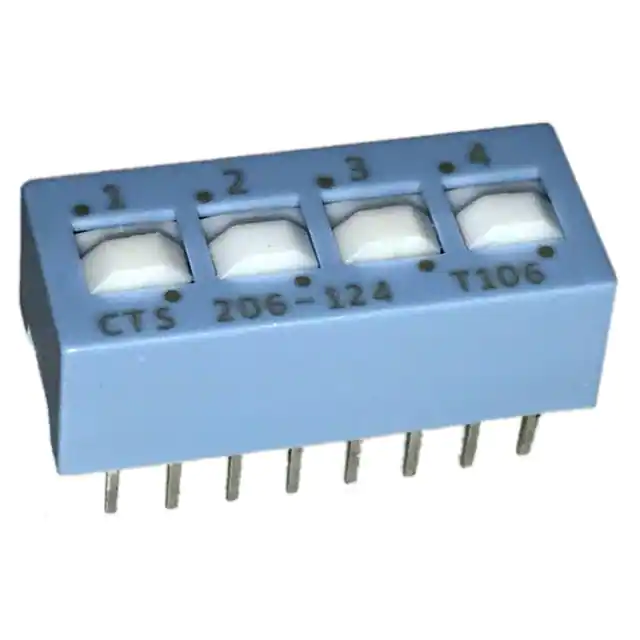

206-124SSWITCH SLIDE DIP SPDT 0.05A 24V |
1,271 |
|
数据手册 |
206 | Tube | Active | SPDT | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
4,143 |
|
数据手册 |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-12LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
3,903 |
|
数据手册 |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-12MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
2,086 |
|
数据手册 |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-12MSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,721 |
|
数据手册 |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
KAE06TGGTSWITCH SLIDE DIP SPST 0.025A 24V |
1,347 |
|
数据手册 |
KAE | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
KAE06TAGTSWITCH SLIDE DIP SPST 0.025A 24V |
4,572 |
|
数据手册 |
KAE | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
KAE06SGGRSWITCH SLIDE DIP SPST 0.025A 24V |
1,819 |
|
数据手册 |
KAE | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
BPA04RSBSWITCH PIANO DIP SPST 0.1A 5V |
2,380 |
|
数据手册 |
BPA | Tube | Obsolete | SPST | 4 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
NDS03TVDIP SWITCH ND STANDARD |
1,445 |
|
数据手册 |
NDS | Bulk | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
DS02-254-1L-08BESWITCH PIANO DIP SPST 0.025A 24V |
3,087 |
|
数据手册 |
DS02-254 | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0600TASWITCH SLIDE DIP SPST 0.1A 6V |
2,097 |
|
数据手册 |
CFS | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
QHPS10ERDIP SWITCHES / SIP SWITCHES |
4,227 |
|
数据手册 |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CJS-1201ASWITCH SLIDE SPDT 100MA 6V |
1,842 |
|
数据手册 |
CJS | Bulk | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | Tape Seal | -40°C ~ 85°C |
|
|
CJS-1201BSWITCH SLIDE SPDT 100MA 6V |
3,530 |
|
数据手册 |
CJS | Bulk | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | Tape Seal | -40°C ~ 85°C |
|
|
204-10STRSWITCH SLIDE DIP SPST 0.05A 24V |
3,123 |
|
数据手册 |
204 | Tape & Reel (TR) | Active | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
219-12LPSTJSWITCH SLIDE DIP SPST 0.1A 20V |
4,027 |
|
数据手册 |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-12LPSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
1,767 |
|
数据手册 |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
