DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S-1211AWSWITCH ROTARY DIP HEX 0.1A 5V Nidec Components Corporation |
3,758 |
|
数据手册 |
S-1000A | Tray | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
S-8130WSW ROTARY DIP OCT COMP 0.1A 5V Nidec Components Corporation |
3,317 |
|
数据手册 |
S-8000 | Tray | Active | Octal Complement | 8 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
|
S-8131WSW ROTARY DIP OCT COMP 0.1A 5V Nidec Components Corporation |
3,256 |
|
数据手册 |
S-8000 | Tray | Active | Octal Complement | 8 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.283" (7.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
|
S-8110WSWITCH ROTARY DIP OCTAL 0.1A 5V Nidec Components Corporation |
1,331 |
|
数据手册 |
S-8000 | Tray | Active | Octal | 8 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
SMR7016C-1SWITCH ROTARY DIP HEX 0.03A 15V Nidec Components Corporation |
3,588 |
|
数据手册 |
SMR | Tube | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
SMR7110C-1SW ROTARY DIP BCD COMP 0.03A 15V Nidec Components Corporation |
1,505 |
|
数据手册 |
SMR | Tube | Active | BCD Complement | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|

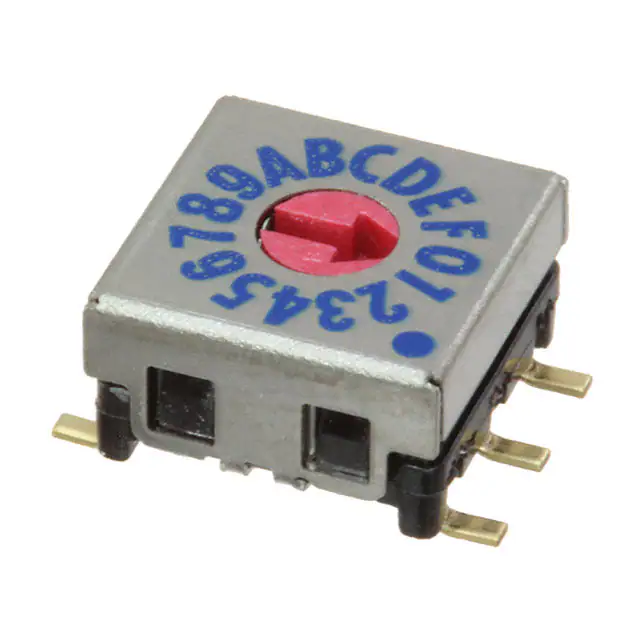

SMR7116C-1SW ROTARY DIP HEX COMP 0.03A 15V Nidec Components Corporation |
3,762 |
|
数据手册 |
SMR | Tube | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
DRS8116CSW ROTARY DIP HEX COMP 0.03A 15V Nidec Components Corporation |
2,198 |
|
数据手册 |
DR | Tube | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
DRS8016CSWITCH ROTARY DIP HEX 0.03A 15V Nidec Components Corporation |
2,101 |
|
数据手册 |
DR | Tube | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
DRS8110CSW ROTARY DIP BCD COMP 0.03A 15V Nidec Components Corporation |
2,910 |
|
数据手册 |
DR | Tube | Active | BCD Complement | 10 | 30mA | 15VDC | Rotary with Shaft | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
