DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-2011SWITCH ROTARY DIP BCD 0.1A 5V Nidec Components Corporation |
3,570 |
|
数据手册 |
SC-2000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SC-1231SW ROTARY DIP HEX COMP 0.1A 5V Nidec Components Corporation |
3,351 |
|
数据手册 |
SC | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SC-2130SW ROTARY DIP BCD COMP 0.1A 5V Nidec Components Corporation |
1,047 |
|
数据手册 |
SC-2000 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.409" (10.39mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SC-1031SW ROTARY DIP HEX COMP 0.1A 5V Nidec Components Corporation |
2,184 |
|
数据手册 |
SC | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SC-2211SWITCH ROTARY DIP BCD 0.1A 5V Nidec Components Corporation |
2,778 |
|
数据手册 |
SC-2000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CHS-10MASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
1,749 |
|
数据手册 |
CHS | Tube | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
CHS-10MBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
2,796 |
|
数据手册 |
CHS | Tube | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|

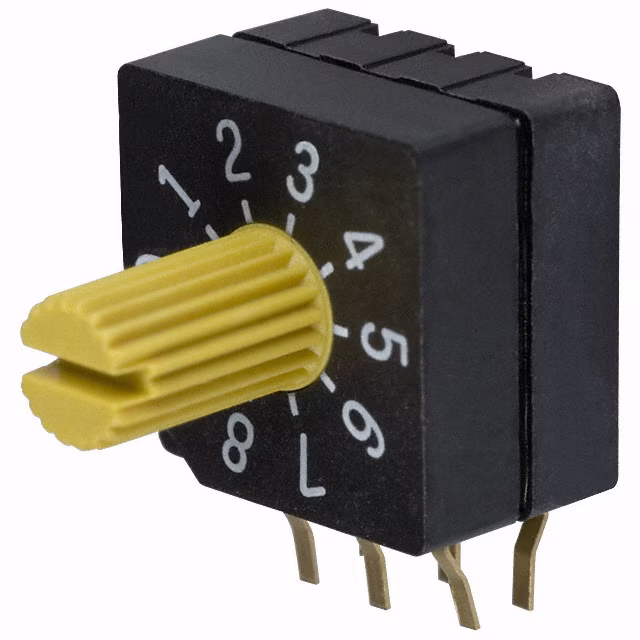

SD-2111SWITCH ROTARY DIP BCD 0.1A 5V Nidec Components Corporation |
3,735 |
|
数据手册 |
SD-2000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CVS-08BSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
1,287 |
|
数据手册 |
CVS | Bulk | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|
|
SA-7010BSWITCH ROTARY DIP BCD 0.1A 5V Nidec Components Corporation |
4,177 |
|
数据手册 |
SA-7000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
