DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
210-12ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,079 |
|
数据手册 |
210 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

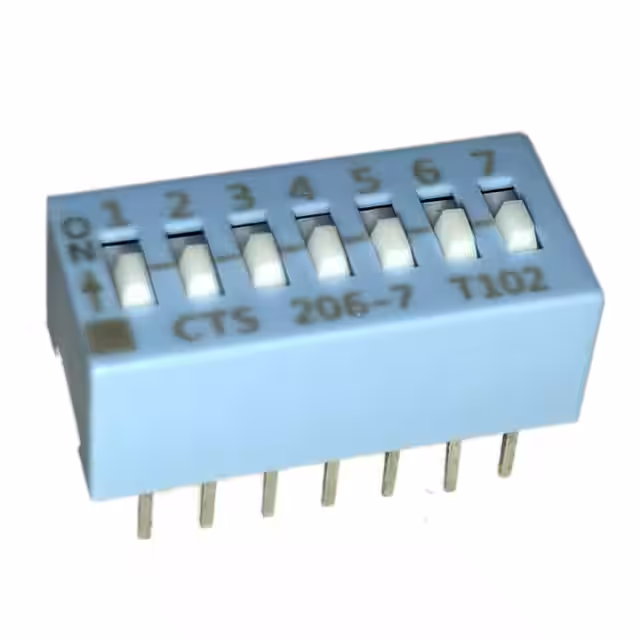

206-7SSWITCH SLIDE DIP SPST 0.05A 24V |
4,550 |
|
数据手册 |
206 | Tube | Active | SPST | 7 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
1825002-6SWITCH STANDARD DIP SPST |
4,512 |
|
数据手册 |
ADF | Bulk | Active | SPST | 4 | - | - | Standard | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
208-1SSWITCH SLIDE DIP SPST 0.05A 24V |
3,911 |
|
数据手册 |
208 | Tube | Active | SPST | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
KR03RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,019 |
|
数据手册 |
KR | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KR03ETSWITCH SLIDE DIP SPST 0.025A 24V |
4,362 |
|
数据手册 |
KR | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
DS01-254-S-09BESWITCH SLIDE DIP SPST 0.025A 24V |
1,754 |
|
数据手册 |
DS01-254 | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS02-254-1L-05BESWITCH PIANO DIP SPST 0.025A 24V |
2,685 |
|
数据手册 |
DS02-254 | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
QFPT05L1DDIP SWITCHES / SIP SWITCHES |
3,165 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
209-8LPSTDSWITCH SLIDE DIP SPST 0.1A 20V |
2,770 |
|
数据手册 |
209 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

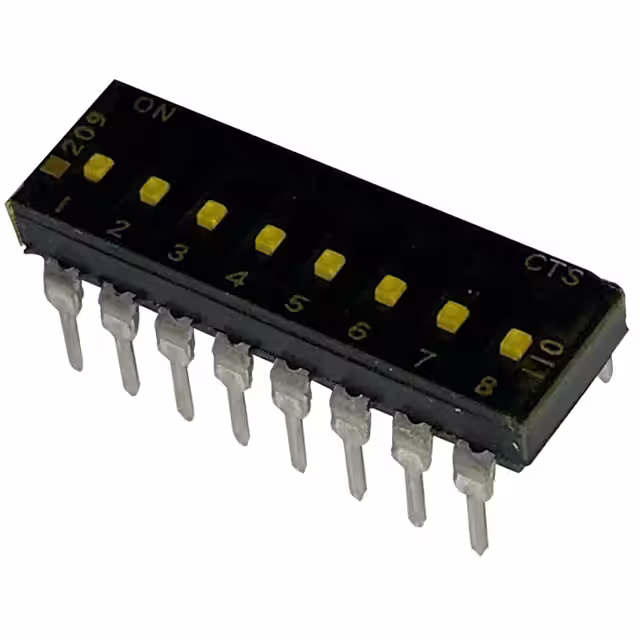

209-8LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
3,353 |
|
数据手册 |
209 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

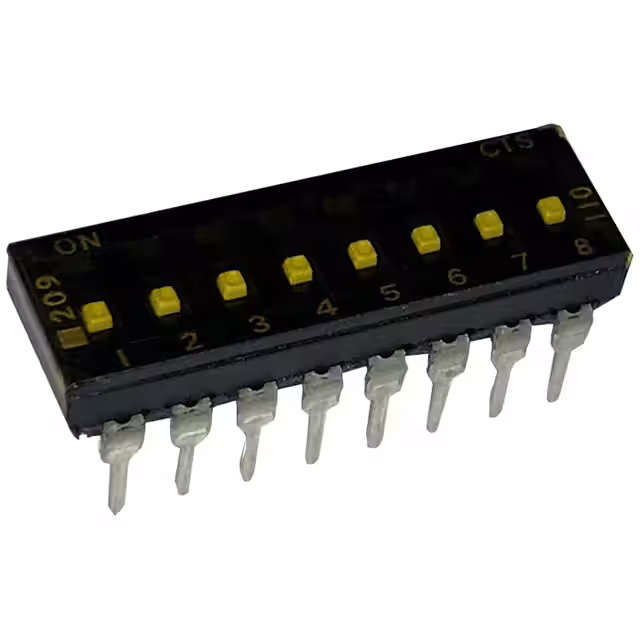

209-8LPSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,459 |
|
数据手册 |
209 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
209-8MSTSWITCH SLIDE DIP SPST 0.1A 20V |
2,235 |
|
数据手册 |
209 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

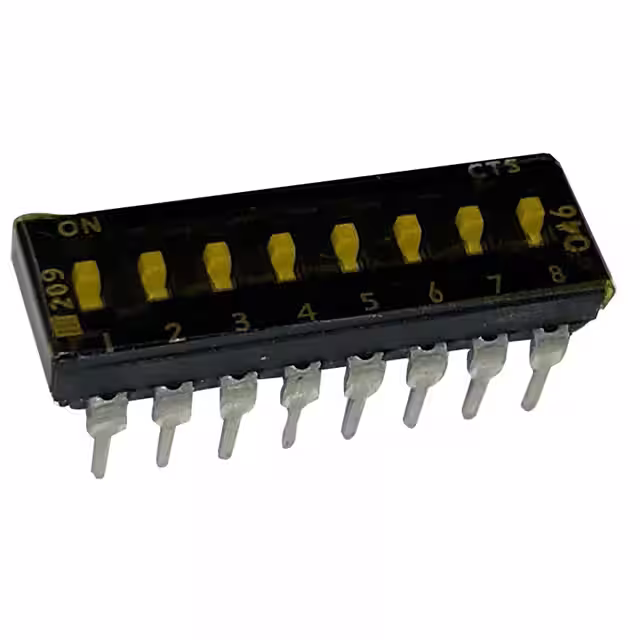

209-8MSTDSWITCH SLIDE DIP SPST 0.1A 20V |
3,797 |
|
数据手册 |
209 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
209-8MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
3,283 |
|
数据手册 |
209 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

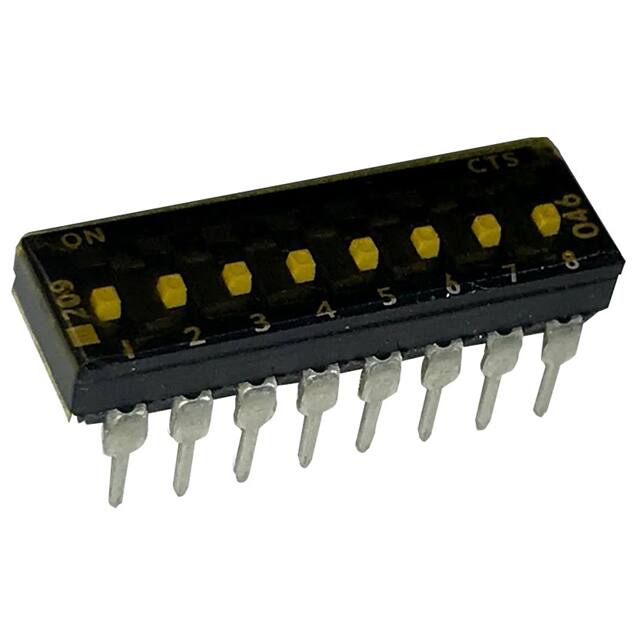

209-8MSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,025 |
|
数据手册 |
209 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
206-6LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
1,275 |
|
数据手册 |
206 | Tube | Active | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
195-5MSTSWITCH PIANO DIP SPST 0.05A 24V |
1,299 |
|
数据手册 |
195 | Tube | Active | SPST | 5 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
CHS-01TB2SWITCH SLIDE DIP SPST 0.1A 6V |
1,673 |
|
数据手册 |
CHS | Tape & Reel (TR) | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
219-7ESRSWITCH SLIDE DIP SPST 0.1A 20V |
3,468 |
|
数据手册 |
219 | Tape & Reel (TR) | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
