DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KT03ETHSWITCH SLIDE DIP SPST 0.025A 24V |
3,739 |
|
数据手册 |
KT | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KT03RTHSWITCH SLIDE DIP SPST 0.025A 24V |
1,163 |
|
数据手册 |
KT | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
206-4ESWITCH SLIDE DIP SPST 0.05A 24V |
1,597 |
|
数据手册 |
206 | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
195-3MSTSWITCH PIANO DIP SPST 0.05A 24V |
3,495 |
|
数据手册 |
195 | Tube | Active | SPST | 3 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
210-10LPSSWITCH SLIDE DIP SPST 0.1A 20V |
3,686 |
|
数据手册 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-10ESSWITCH SLIDE DIP SPST 0.1A 20V |
2,947 |
|
数据手册 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-10LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
2,676 |
|
数据手册 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

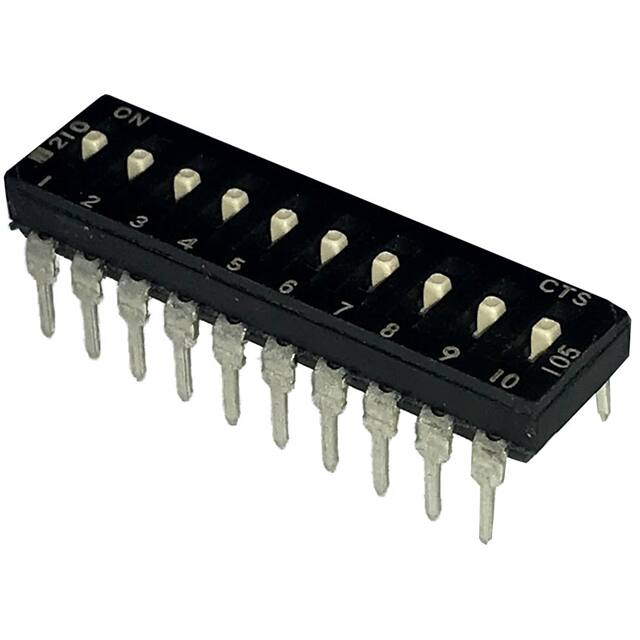

210-10MSFSWITCH SLIDE DIP SPST 0.1A 20V |
3,541 |
|
数据手册 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-10ESFSWITCH SLIDE DIP SPST 0.1A 20V |
4,677 |
|
数据手册 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-10LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
3,762 |
|
数据手册 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

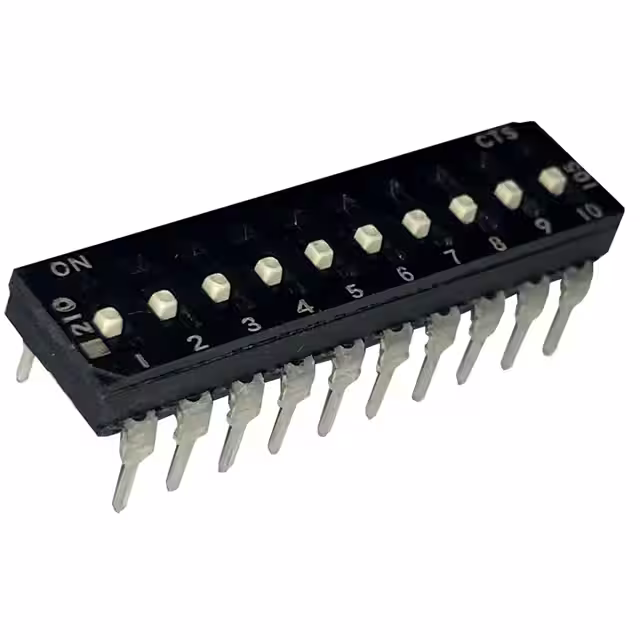

210-10MSDSWITCH SLIDE DIP SPST 0.1A 20V |
3,780 |
|
数据手册 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-10ESDSWITCH SLIDE DIP SPST 0.1A 20V |
2,614 |
|
数据手册 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-10LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,731 |
|
数据手册 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

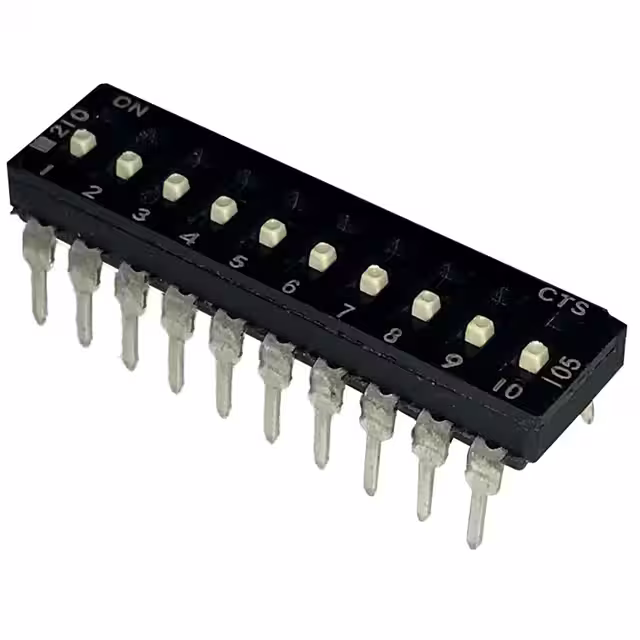

210-10MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
2,812 |
|
数据手册 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-10ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
2,869 |
|
数据手册 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
219-6LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
4,908 |
|
数据手册 |
219 | Tube | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-6MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
2,934 |
|
数据手册 |
219 | Tube | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
KT02ETHSWITCH SLIDE DIP SPST 0.025A 24V |
2,948 |
|
数据手册 |
KT | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KT02RTHSWITCH SLIDE DIP SPST 0.025A 24V |
4,938 |
|
数据手册 |
KT | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
206-2LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
2,846 |
|
数据手册 |
206 | Tube | Active | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
