DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6RV-102RFSWITCH ROTARY DIP BCD 0.025A 24V |
583 |
|
数据手册 |
A6RV | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|
A6RV-101RFSWITCH ROTARY DIP BCD 0.025A 24V |
423 |
|
数据手册 |
A6RV | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|

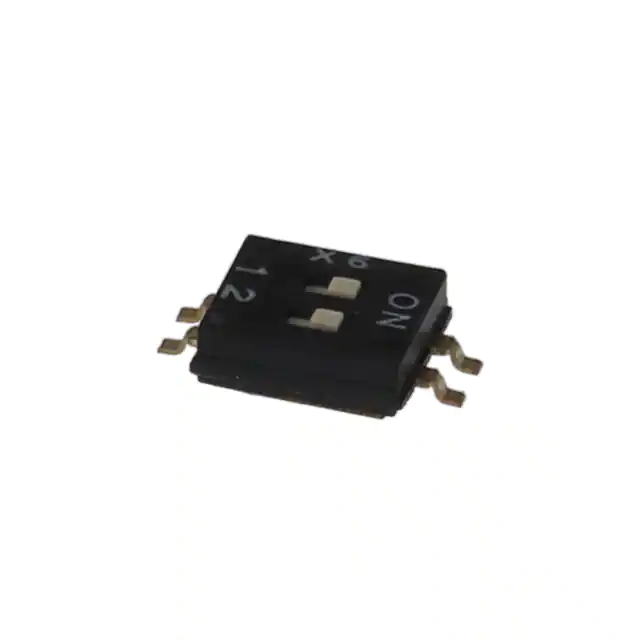

97C02STSWITCH SLIDE DIP SPST 0.025A 24V |
6,885 |
|
数据手册 |
97 | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
FR01FR10H-SSWITCH ROTARY DIP BCD 0.1A 5V |
8,059 |
|
数据手册 |
FR01 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
90HBW02PTSWITCH SLIDE DIP SPST 0.025A 24V |
3,669 |
|
数据手册 |
90HB | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

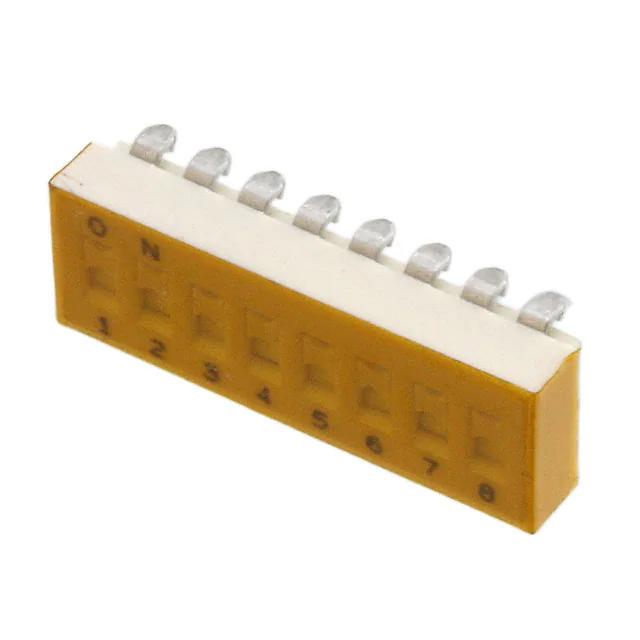

90HBJ08PTSWITCH SLIDE DIP SPST 0.025A 24V |
2,402 |
|
数据手册 |
90HB | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
97C04STSWITCH SLIDE DIP SPST 0.025A 24V |
4,060 |
|
数据手册 |
97 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

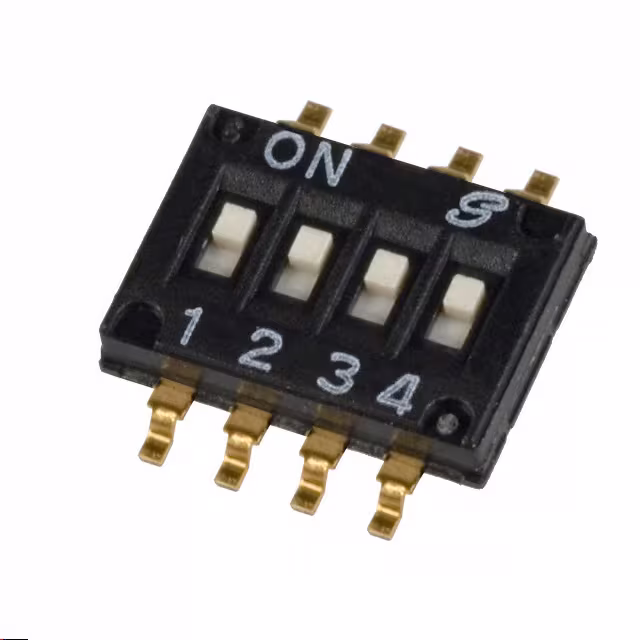

97R04STSWITCH SLIDE DIP SPST 0.025A 24V |
2,480 |
|
数据手册 |
97 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
78J01TSWITCH SLIDE DIP SPDT 0.15A 30V |
3,873 |
|
数据手册 |
78 | Tube | Active | SPDT | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
TDA10H0SB1RSWITCH SLIDE DIP SPST 0.025A 24V |
27,977 |
|
数据手册 |
TDA | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

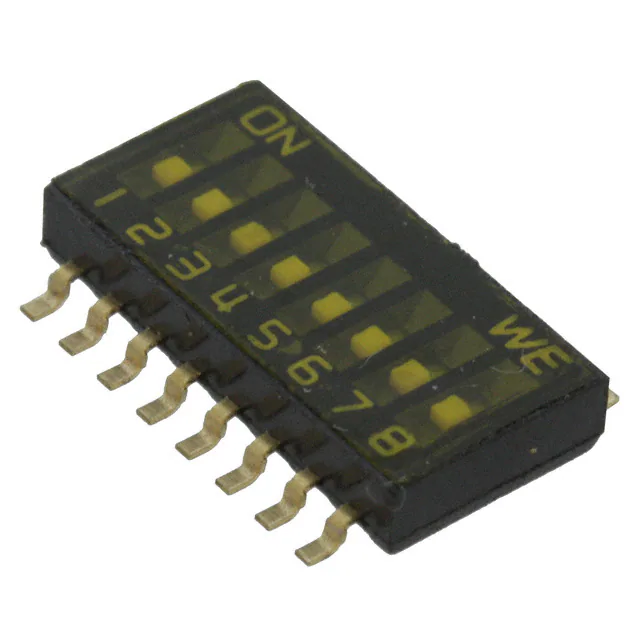

416131160808SWITCH SLIDE DIP SPST 0.025A 24V |
5,938 |
|
数据手册 |
WS-DISV | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
90HBW03PTSWITCH SLIDE DIP SPST 0.025A 24V |
5,583 |
|
数据手册 |
90HB | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

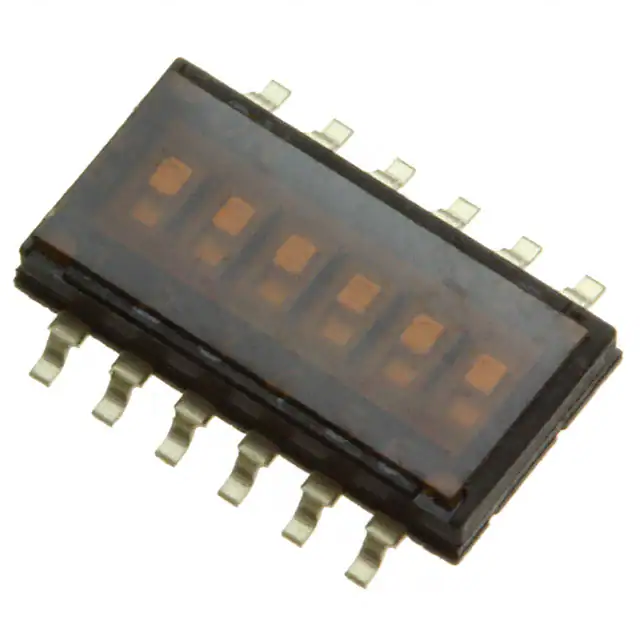

97C06STSWITCH SLIDE DIP SPST 0.025A 24V |
5,101 |
|
数据手册 |
97 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
A6RV-161RFSWITCH ROTARY DIP HEX 0.025A 24V |
1,832 |
|
数据手册 |
A6RV | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|

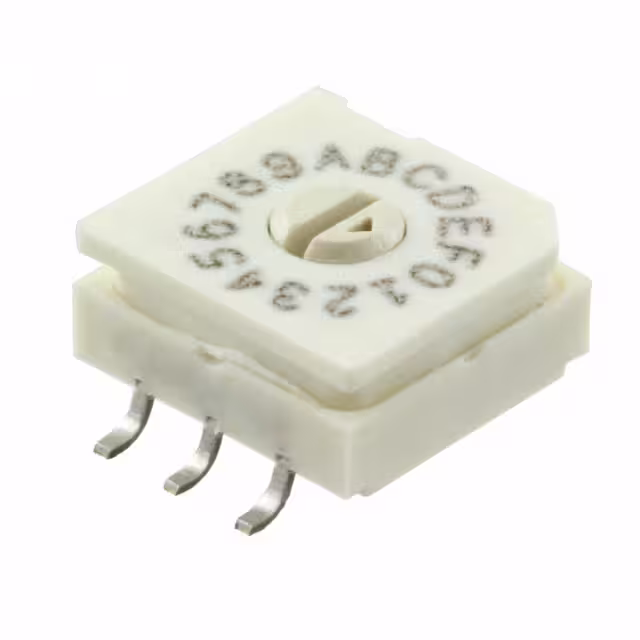

94HAB16WRTSWITCH ROTARY DIP HEX 0.1A 50V |
8,438 |
|
数据手册 |
94H | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|

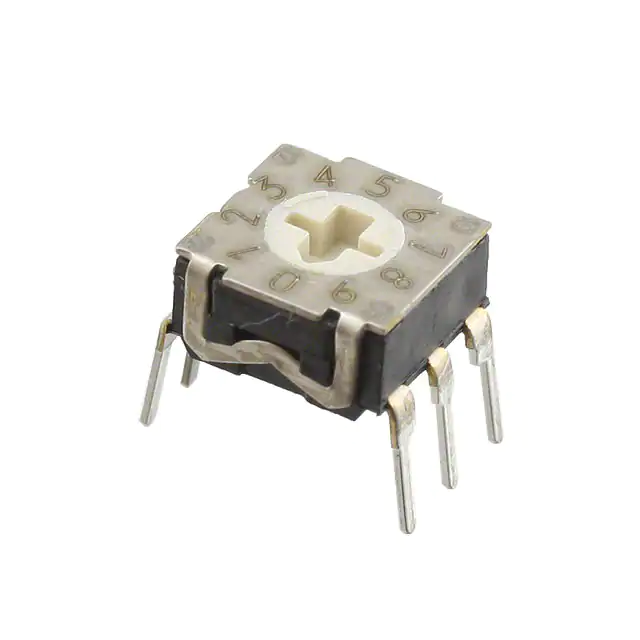

RTE1010N14SWITCH ROTARY DIP BCD 0.1A 30V |
2,515 |
|
数据手册 |
RTE | Tube | Active | BCD | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
97C08STSWITCH SLIDE DIP SPST 0.025A 24V |
6,347 |
|
数据手册 |
97 | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
PT65703SWITCH ROTARY DIP HEX 0.15A 24V |
3,079 |
|
数据手册 |
PT65 | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65101L254SWITCH ROTARY DIP BCD 0.15A 24V |
11,632 |
|
数据手册 |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65103L508SWITCH ROTARY DIP HEX 0.15A 24V |
433 |
|
数据手册 |
PT65 | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
