DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6RV-102RSSWITCH ROTARY DIP BCD 0.025A 24V |
4,831 |
|
数据手册 |
A6RV | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|

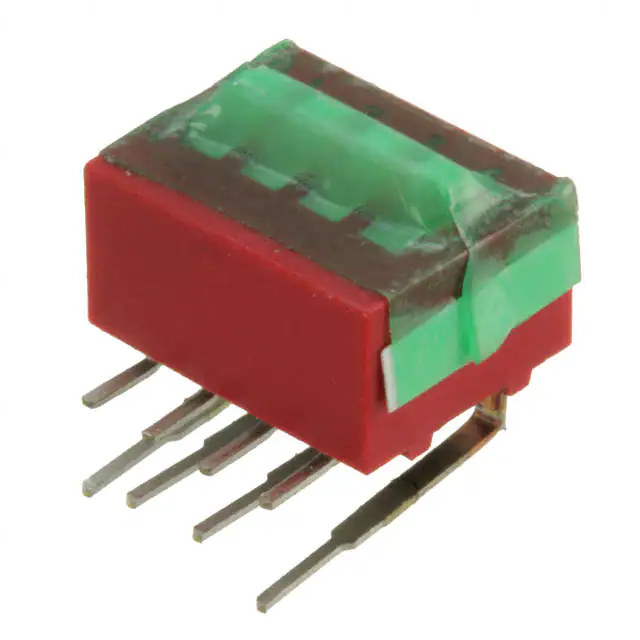

78B04SRATSWITCH SLIDE DIP SPST 0.15A 30V |
3,715 |
|
数据手册 |
78 | Tube | Active | SPST | 4 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6E-9104-NSWITCH SLIDE DIP SPST 0.025A 24V |
4,900 |
|
数据手册 |
A6E-N | Tray | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6KS-104RSSWITCH ROTARY DIP BCD 0.025A 24V |
2,575 |
|
数据手册 |
A6KS | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|

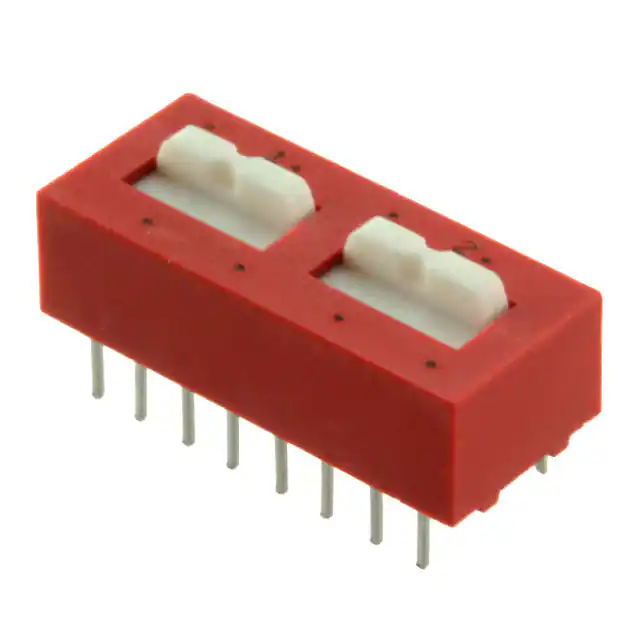

78K02TSWITCH SLIDE DIP DPDT 0.15A 30V |
4,121 |
|
数据手册 |
78 | Bulk | Active | DPDT | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
P60A703SWITCH ROTARY DIP HEX 0.15A 24V |
1,008 |
|
数据手册 |
P60A | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Stainless Steel | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
P36106SW ROTARY DIP HEX COMP 0.1A 24V |
4,450 |
|
数据手册 |
P36 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.143" (3.63mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -50°C ~ 125°C |
|
FR01AR10HB-SSWITCH ROTARY DIP BCD 0.1A 5V |
3,479 |
|
数据手册 |
FR01 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FR01AR10HBSWITCH ROTARY DIP BCD 0.1A 5V |
1,905 |
|
数据手册 |
FR01 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
A6KV-164RSSWITCH ROTARY DIP HEX 0.025A 24V |
1,979 |
|
数据手册 |
A6K | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|

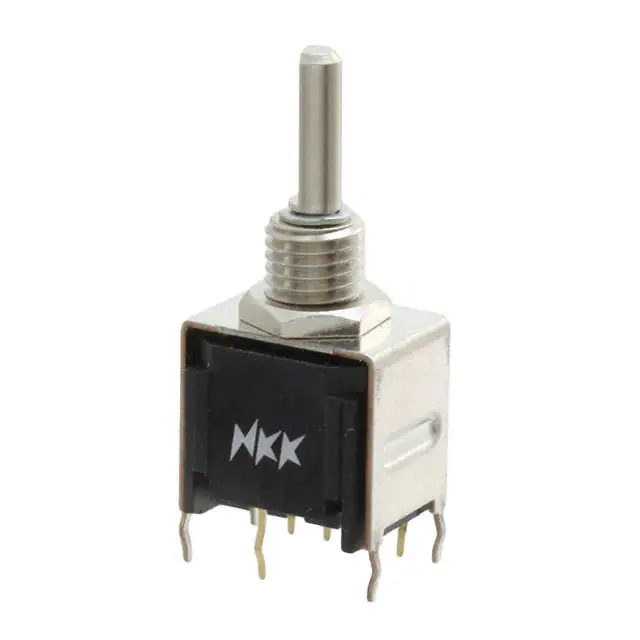

FR01AR10PB-SSWITCH ROTARY DIP BCD 0.1A 5V |
1,888 |
|
数据手册 |
FR01 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR01AC10PB-SSW ROTARY DIP BCD COMP 0.1A 5V |
2,689 |
|
数据手册 |
FR01 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
A6HR-0104SWITCH PIANO DIP SPST 0.025A 24V |
4,269 |
|
数据手册 |
A6HR | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
KR03RSWITCH SLIDE DIP SPST 0.025A 24V |
560 |
|
数据手册 |
KR | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KJ02RTTSWITCH SLIDE DIP SPST 0.025A 24V |
548 |
|
数据手册 |
KJ | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KR05RSWITCH SLIDE DIP SPST 0.025A 24V |
455 |
|
数据手册 |
KR | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KP06RSWITCH PIANO DIP SPST 0.025A 24V |
476 |
|
数据手册 |
KP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KR06ESWITCH SLIDE DIP SPST 0.025A 24V |
248 |
|
数据手册 |
KR | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KR06RSWITCH SLIDE DIP SPST 0.025A 24V |
228 |
|
数据手册 |
KR | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KG07ESWITCH SLIDE DIP SPST 0.025A 24V |
523 |
|
数据手册 |
KG | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
