DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6HF-6102SWITCH SLIDE DIP SPST 0.025A 24V |
1,994 |
|
数据手册 |
A6HF | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
A6R-101RSSWITCH ROTARY DIP BCD 0.025A 24V |
1,682 |
|
数据手册 |
A6R | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.465" (11.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|
A6KV-162RFSWITCH ROTARY DIP HEX 0.025A 24V |
3,879 |
|
数据手册 |
A6K | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
DS04-254-2L-02BKSWITCH SLIDE DIP SPST 0.025A 24V |
268 |
|
数据手册 |
DS04-254 | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KP02ESWITCH PIANO DIP SPST 0.025A 24V |
488 |
|
数据手册 |
KP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-2L-03BKSWITCH SLIDE DIP SPST 0.025A 24V |
651 |
|
数据手册 |
DS04-254 | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

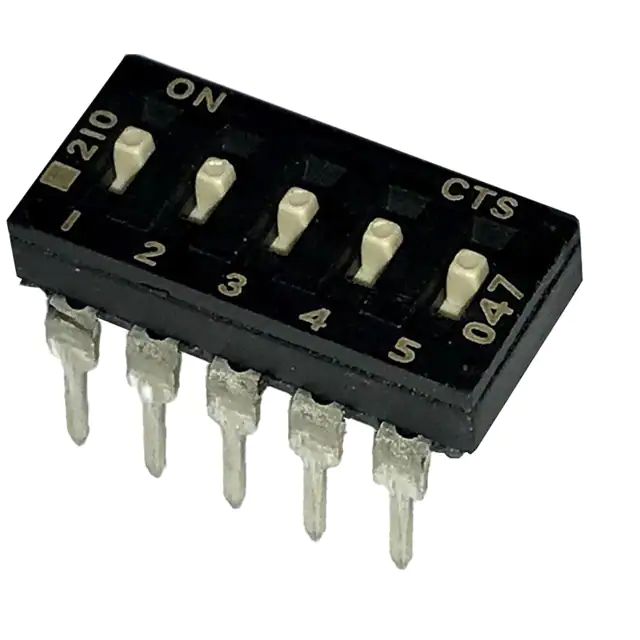

210-5MSSWITCH SLIDE DIP SPST 0.1A 20V |
860 |
|
数据手册 |
210 | Tube | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
KG05ESWITCH SLIDE DIP SPST 0.025A 24V |
643 |
|
数据手册 |
KG | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KT01EHSWITCH SLIDE DIP SPST 0.025A 24V |
121 |
|
数据手册 |
KT | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-2L-04BKSWITCH SLIDE DIP SPST 0.025A 24V |
865 |
|
数据手册 |
DS04-254 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KG06ESWITCH SLIDE DIP SPST 0.025A 24V |
758 |
|
数据手册 |
KG | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS01C-254-L-07BESWITCH SLIDE DIP SPST 0.025A 24V |
378 |
|
数据手册 |
DS01-254 | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DS01C-254-S-07BESWITCH SLIDE DIP SPST 0.025A 24V |
4,485 |
|
数据手册 |
DS01-254 | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KP04RSWITCH PIANO DIP SPST 0.025A 24V |
664 |
|
数据手册 |
KP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-2L-05BKSWITCH SLIDE DIP SPST 0.025A 24V |
518 |
|
数据手册 |
DS04-254 | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-2L-06BKSWITCH SLIDE DIP SPST 0.025A 24V |
728 |
|
数据手册 |
DS04-254 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KG09ESWITCH SLIDE DIP SPST 0.025A 24V |
523 |
|
数据手册 |
KG | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6TN-1101SWITCH SLIDE DIP SPST 0.025A 24V |
4,786 |
|
数据手册 |
A6TN | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
208-9SWITCH SLIDE DIP SPST 0.05A 24V |
3,736 |
|
数据手册 |
208 | Tube | Active | SPST | 9 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
418127160902SWITCH SLIDE DIP SPST 0.025A 24V |
1,320 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
